- Page 1 Dynamic Cardiac Phantom Model 008C USER GUIDE 900 Asbury Ave • Norfolk, Virginia 23513 • USA • Tel: 757-855-2765 • WWW.CIRSINC.COM...
-
Page 3: Table Of Contents
. . . . . . . . 9 Model 008C-01 Target Detection Rod Assembly Procedure . . . . . . . 9 Setup notes for Dynamic Phantoms with controller connecting to a PC using an Ethernet connection . -
Page 4: Overview

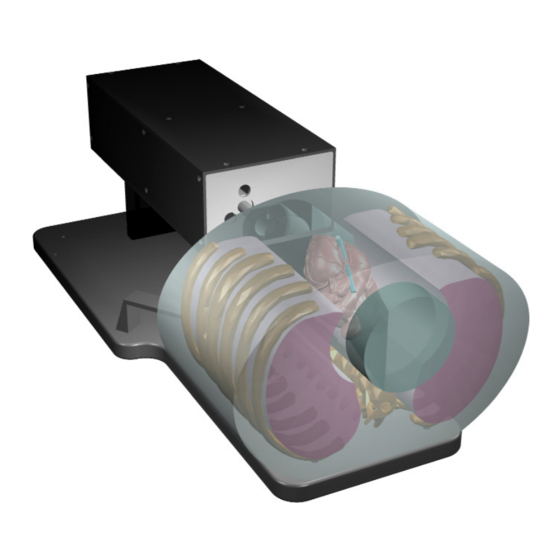

Overview The CIRS Dynamic Cardiac Phantom is a precision instrument that simulates the realistic Model 008C Advanced motion of an average human heart. It provides known, accurate and repeatable 3D motion Features of a solid heart model inside the tissue-equivalent thorax phantom. This phantom is de- signed as a comprehensive image analysis tool for calcification detection, iodine contrast •... -
Page 5: Safety
Safety GENERAL SAFETY NOTICE Warnings and Cautions are identified throughout this user guide to alert users of dangerous conditions that are created when instructions are not followed. Operation and maintenance personnel must observe all safety regulations. For the purposes of this manual, cautions are identified as situations that can cause damage to the phantom and internal electronics. -
Page 6: Unpacking Instructions
Unpacking Instructions for All Dynamic Phantoms Pull phantom body from case. Remove wall partition from the case and Before you open the case check the set aside. three Drop ‘N’ Tell indicators on the right side of the case. Drop ‘N’ Tell shipping damage indicator shows when a case has been dropped in transit and contains potential dam- aged goods. -
Page 7: Assembly Procedure
To ensure proper alignment for plate and screw into phantom. Continue on table. Carefully move base plate to model 008C, the phantom face with the until all screws are in place. Snug but do overhang table. This allows access to... -
Page 8: Cables And Connections
Cables and Connections WARNING: FOLLOW THE CABLE CONNECTION STEPS AS THEY ARE PRESENTED IN THIS USER GUIDE. CONNECTING THE CABLES WITH THE CONTROLLER “POWER ON” CAN SERIOUSLY DAMAGE THE PHANTOM’S ELECTRONICS. Plug the Cable DB25 m/m to back of Attach ethernet cable to back of Plug the Cable DB9 m/m which controller and to back of actuator. -
Page 9: Ecg Output
ECG Output The movement of the phantom is controlled by CIRS motion control software. The movement profiles are correlated with the heart rate of the phantom, which can also be controlled and set through the software interface. The back of the motion controller has a 3 lead ECG output from which the heart rate of the phantom can be read by any basic heart rate monitoring system, just as a physician would for a real patient. -
Page 10: An Ethernet Connection
Adapter” folder found on the provided USB drive or download selecting “Install Driver”. the zipped folder from the CIRS website. Archive to a known location and select autorun. Note: The provided “USB to Network Adapter” can act as Plug and Play device on some PC but CIRS recommends doing the installation of the driver as outlined above. - Page 11 Select Internet Protocol Version 4 (TCP/IPv4) and click on prop- Providing that the installation of the “USB-to-Network Card” erties was successful, the newly installed Network Adapter should show as “ASIX AX88179 USB 3.0 to Gigabit Ethernet Adapter”. Select it’s Properties using the right mouse click menu as shown below.
-
Page 12: Cirs Motion Control Software
CIRS Motion Control also allows you to save any motion to easily access the same parameters for repeated calibration and testing. - Page 13 CIRS Motion Control software has an online user manual. After soft- ware installation, a copy may be viewed and downloaded using either the “Check for Updates” button from Help Menu and selecting “Motion Control User Manual.pdf” or by pointing a web browser to the CIRS Software Updates webpage: http://www.cirsinc.com/MotionControlUp- dates/Motion_Control_User_Manual.pdf...
-
Page 14: Model 008C Specifications & Ordering Information
1 - ∞ (adjusted based on amplitude) CYCLE TIME: WAVEFORMS: sin (t), 1-2cos^4(t), 1-2cos^6(t), sawtooth, sharkfin, heart beat, heart beat + breathing Ordering Information INCLUDED WITH MODEL 008C INTERCHANGEABLE INSERT TARGET OPTIONS Part No. Component Description Specification Type Dynamic Cardiac Phantom Body with 3D spine... -
Page 15: Warranty
CIRS not to comply with documented order specifications. You Phantom and accessories must return the product to CIRS within 30 calendar days of the issu- ance of the RMA. All returns should be packed in the original cases There are no warranties, expressed or implied, including without... - Page 16 COMPUTERIZED IMAGING REFERENCE SYSTEMS, INC . 900 Asbury Ave Norfolk, Virginia 23513 USA Toll Free: 800.617.1177 Tel: 757.855.2765 Fax: 757.857.0523 Email admin@cirsinc.com www .cirsinc .com Technical Assistance 1.800.617.1177 Computerized Imaging Reference Systems, Inc. has ©2013 Computerized Imaging Reference Systems, Inc. All rights been Certified by UL DQS Inc.
