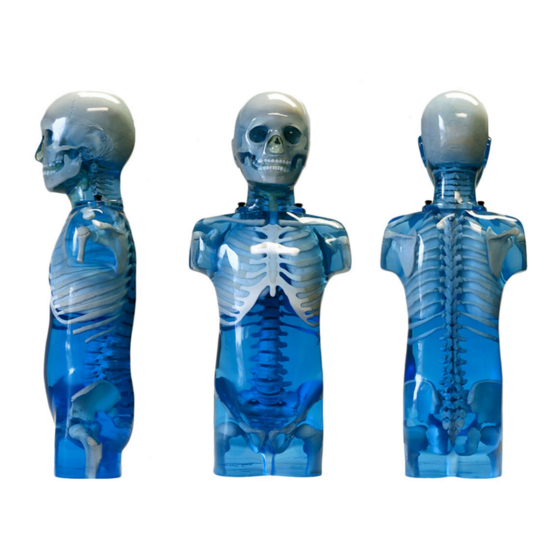

- Page 1 Pediatric Anthropomorphic Training Phantoms Model 715 USER GUIDE 900 Asbury Ave • Norfolk, Virginia 23513 • USA • Tel: 757-855-2765 • WWW.CIRSINC.COM...
- Page 2 OBJECTIVE An ideal addition to any imaging department or Radiologic Technology training program, the CIRS Model 715 Series can assist in the monitoring, training and improvement of parameters and protocols common to most pediatric imaging procedures. SPoRT is designed to aid teaching and improvement of patient positioning, col- limation and anatomical comprehension and it’s wide range of features facilitate...
- Page 3 SPECIFICATIONS AND OPTIONAL ACCESSORIES...
- Page 4 SOFT TISSUE ENERGY- MEV REF. MUSCLE CIRS RATIO, % 0.04 0.2804 0.2548 90.87 0.06 0.2146 0.2121 98.84 0.08 0.1913 0.1940 101.41 0.10 0.1777 0.1822 102.53 0.20 0.1426 0.1478 103.65 0.40 0.1104 0.1147 103.89 0.60 0.0932 0.0969 103.97 0.80 0.0818 0.0851 104.03...
- Page 5 Simply scan phantom using the same x-ray technical factors as would be used on a lean patient. Each user of the phantom may find additional uses and CIRS urges one to share findings with others when possible and appropriate.
- Page 6 (Model 715-HN), and an optional large stand (Model 715-S-1) which can be used with all of the components of the Model 715. These stands are designed to allow users to practice alignment and positioning for different x-ray views.
- Page 7 Base Base Figure 2 (Tension Knob on Socket Base not shown) LARGE POSITIONING STAND (MODEL 715-S-1) The optional Large Positioning Stand (Figure 2), can be used with any of SPoRT's sections. The stand includes unattached quick-release plates for appendages and combination base/quick-release plates for the head and trunk sections, along with necessary tools and hardware to attach plates to all SPoRT sections.
- Page 8 Preparing SPoRT Sections for attachment to Large Positioning Stand Head & Trunk sections attach to the Large Positioning Stand using a combination base/quick-release plate. This plate must be secured on the respective section using included thumb screws. Longer thumb screws are used on the trunk section.
- Page 9 The phantom should be stored in a safe place when not in use. The phantom may be cleaned with mild soap and water. Technical questions should be referred to CIRS customer service at (800) 617-1177.
-
Page 10: Warranty
CIRS not to comply with documented order specifications. You must return the product to CIRS within 30 calendar days of the issuance of the RMA. All returns should be packed in the original cases and or packaging and must include any accessories, manuals and documentation that shipped with the product. - Page 12 Technical Assistance 1.800.617.1177 © 2013 Computerized Imaging Reference Systems, Inc. All rights reserved. Computerized Imaging Reference Systems, Inc. has been Specifications subject to change without notice. certified by UL DQS Inc. to (ISO) 13485:2016. Certificate Publication: 715 UG 072220 Registration No.10000905-MP2016.
