- Page 1 USER MANUAL SAMBAT Vers 3 UK.doc Référence du / Document reference : SAMBAT-60-07-456_UTI_ Document applicable to the product(s): SAMBAT station and profiler Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke-instrumentation.com PAGE 1/43...
-
Page 2: Table Of Contents
Alarms allocated to channels ......................... 15 4.7.2 Brush alarms ..............................16 4.7.3 GPS alarms..............................16 CONFIGURATION PROCEDURE FOR A SAMBAT PROBE ................... 17 BRUSH FUNCTION ................................20 THE BRUSH: START ..............................21 THE BRUSH: BRUSH ALARM DETECTION ......................21 6.2.1 The various types of alarms .......................... - Page 3 10.4 MEMORY AUTONOMY ............................40 10.5 ENERGY AUTONOMY .............................. 40 10.5.1 SAMBAT C/T/D/TBD/DO ..........................40 10.5.2 Influence of GPS on consumption ........................41 REPLACING THE BATTERY PACKS ........................42 ANNEX 1: GPS/GPRS AERIAL COAXIAL CONNECTOR ..................43 END OF LIFE ................................. 43...
-
Page 4: Introduction
The SAMBAT is configured using the Winmemo II software via a radio link (Data Pencil Radio) with a range of several tens of meters. The SAMBAT has been designed to be mounted on any type of support (very light buoy, post, pontoon, etc.). -
Page 5: Photos

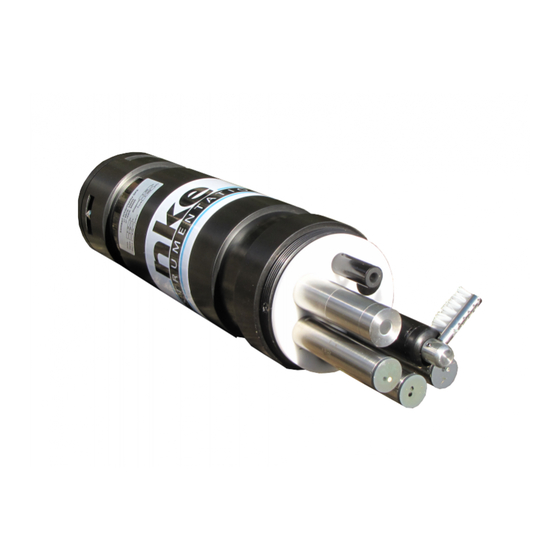

PHOTOS Sensors & Brush housing Electronic compartment Battery compartment Aerial connector Maintenance zone Brush body Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke-instrumentation.com PAGE 5/43... -
Page 6: Gps/Gprs Aerial
GPS/GPRS AERIAL Aerial connector GPRS aerial GPS aerial The aerial is fitted with a watertight locking sleeve. Make sure you strictly follow the locking and unlocking procedure described in the annex on page 43. Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 6/43... -
Page 7: Characteristics Of Measurement
Unit: The text of the field Unit of the channel 2 is only configured for informational purposes and is not taken into account when calculating the physical value (Example: g / l or PSU). Measurement range (PSU) Resolution (PSU) Accuracy (PSU) 2 – 42 < 0.001 < 0.1 TURBIDITY (CHANNEL 3) Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 7/43... -
Page 8: Dissolved Oxygen (Channel 4)
The choice measure is made by the selection of the sensor type "Oxygen Saturation" or "Oxygen Concentration" of Channel 4, in the "Channels" of the configuration settings tab The sensor of oxygen used in the SAMBAT integrates its own adjustment coefficients. 3.6.2 Oxygen saturation measurement setting... -
Page 9: Oxygen Concentration Measurement Setting
3.6.5 Concentration Measurement range: 0 to 20 mg/l. Resolution: 0,01%. Accuracy: +/- 0.1 mg/L 3.6.5.1 Saturation Measurement range: 0 to 200%. Resolution: 0,01%. Accuracy: +/- 1% Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 9/43... -
Page 10: Ph (Channel 5)
Measurement range (Cml) Resolution (Cml) Linearity 0 - 2 000 000 cellules /mL < 31 0 – 200 000 cellules /mL < 3 0.99 r2 0 – 20 000 cellules /mL < 0.3 Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 10/43... -
Page 11: Battery Voltage (Channel 5, 6 Or 7) (As Per Configuration)
BATTERY VOLTAGE (CHANNEL 5, 6 OR 7) (AS PER CONFIGURATION) This channel is used to measure the supply voltage of the SAMBAT (internal battery pack). Measurement range: 0 to 18 V. Accuracy: 50 mV Internal battery pack voltage – typical: 10.8V Internal battery pack voltage –... -
Page 12: Operation
OPERATION The SAMBAT can be configured and read using the Winmemo II software via radio link, using a Data Pencil Radio, connected via USB to a computer. All command functions are available in the Winmemo II software. You can only communicate with the SAMBAT when it is out of the water. -
Page 13: Radio
Measurement rate: defines the interval between two GPS position readings. The interval is expressed in hours in increments of one hour. For a measurement rate of 6 hours, the SAMBAT will take a GPS reading every 6 hours. If the rate is set to 0, the GPS function is deactivated. -
Page 14: Sambat "Gprs" Tab
This parameter sets the immersion depth below which the SAMBAT will no longer attempt to transmit measurements or alarms by email. This setting should be left at 0 if the SAMBAT is mounted on a buoy (with the GPRS aerial always above water). -
Page 15: Sambat "Alarms" Tab
SAMBAT “ALARMS” TAB 4.7.1 Alarms allocated to channels An alarm file can be generated and transferred by email when a minimum and/or maximum threshold is reached. To set the alarm, check the Minimum or Maximum box to be able to enter the minimum or maximum value in the box to trigger the alarm. -
Page 16: Brush Alarms
Turning circle alarm: The turning circle alarm can be activated when the GPS function is active (the measurement rate setting is not 0). If the SAMBAT exceeds this turning circle (expressed in meters from its initial position), a GPS alarm will be generated. -
Page 17: Configuration Procedure For A Sambat Probe
CONFIGURATION PROCEDURE FOR A SAMBAT PROBE In this chapter, we will explain the procedure for correctly configuring the SAMBAT probe for several months of deployment. Connect the probe using Winmemo II and select EXPERT mode. Download the measurement files still present in the probe’s memory. - Page 18 Activate GPS mode and Brush operation in the SAMBAT / General tab. Enter the number of file transfers per day and check that the recipient email address is correct. Select whether or not to activate the various alarms. Select the button to confirm any modifications made to the configuration.
- Page 19 Open the Manage probe status window by clicking on the Status button. Click on the button to Start the probe After the memory has been erased, the probe switches to record mode. Close the window and disconnect the probe. Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 19/43...
-
Page 20: Brush Function
BRUSH FUNCTION The brush function integrated in the SAMBAT probe is designed to reduce the presence of dirt and bio-fouling during prolonged deployments. By regularly using soft brushing, the SAMBAT brush keeps the sensor detection windows clean (optical window). It can be used on the turbidity, fluorescence, phycocianine and oxygen sensors. -
Page 21: The Brush: Start
On the next brush cycle, the brush will self-calibrate its position clockwise to recover its initial park position and possibly eliminate the obstacle that caused the blockage. If the blockage persists, the SAMBAT will continue to send alarm files. 6.2.1 The various types of alarms The SAMBAT generates two types of alarm on the brush. -
Page 22: Replacing The Brush
- Ensure the probe is Stopped. - Unscrew the screw using a no. 2 Allen key - Remove the worn brush - Install the new brush ensuring the flat part is facing outwards. Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 22/43... -
Page 23: Gps Operation
100 meters in order to prevent inadvertent alarms. Above 100m, the setting resolution is the meter. For example, for a turning circle of 115m, any position of the SAMBAT buoy fitted with a GPS greater than 115m will generate an alarm. - Page 24 GPS aerial). GPS function performance is based on the reference position. An incorrect reference position may lead to false alarms. Ensure that the SAMBAT is correctly positioned at its final anchoring place before it is set to record. Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr...
-
Page 25: File Formats
- Emails containing alarms have the subject: - Emails containing GPS positions have the subject: SAMBAT Project Example: test@nke.fr MEASUREMENT FILES The SAMBAT saves measurements taken in an ASCII file according to the following format: File name: SAMBAT_mesures_NNNNN_DDMMYYHHMMSS.txt With NNNNN representing the SAMBAT radio address. -
Page 26: Example Of A Measurement File: Sambat_Mesures_50000_020913112341.Txt
8.1.1 Example of a MEASUREMENT file: SAMBAT_mesures_50000_020913112341.txt Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 26/43... -
Page 27: Alarms File
ALARMS FILE The SAMBAT saves alarms in an ASCII file according to the following format: File name: SAMBAT_alarms_NNNNN_DDMMYYHHMMSS.txt With NNNNN representing the SAMBAT radio address. With DDMMYYHHMMSS representing the date and time of creation of the file. File header: line:... -
Page 28: Brush Alarms File
BRUSH ALARMS FILE The SAMBAT saves brush alarms in an ASCII file according to the following format: File name: Balai_alarmes_NNNNN_DDMMYYHHMMSS.txt With NNNNN representing the SAMBAT radio address. With DDMMYYHHMMSS representing the date and time of creation of the file. The alarm file does not contain a header. -
Page 29: Example Of A Gps Log File: Gps_Sambat_50000_020913145451.Txt
File name: gps_alarmes_NNNNN_DDMMYYHHMMSS.txt With NNNNN representing the SAMBAT radio address. With DDMMYYHHMMSS representing the date and time of creation of the alarm file. The alarm file does not contain a header and the GPS positions are stored completely. They are written as... -
Page 30: Adjustment & Maintenance Procedures
In case of zero drift channel 0 (depth or pressure) it is possible to correct the adjustment details: - Login to probe Winmemo II and switch to "Expert" mode. - Make a "reading real time" and meet the physical value (P2) depth measured by SAMBAT at atmospheric pressure. -
Page 31: Conductivity / Temperature Sensor
9.2.1 Storage: Keeping the sensor wet. To do so, nke has created a cup used for keeping sensors in wet conditions. It is available for sale on request from the sales department. It is mounted by screwing it in place of the sensors' protective cover. An O-ring at its base guarantees its tightness. -
Page 32: Cleaning The Sensor Back From The Field Before Calibration
Display the temperature curve and record the raw value measured for each bath. This is the value in brackets that follows the Channel’s indication. Example: V0(X). X value read at low temperature. Y value read at high temperature. Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 32/43... -
Page 33: Adjustment Conductivity
The baths at 43mS and 53mS are used to check the adjustment. Use fresh water: Use 0 to 2mS conductivity standards and perform adjustment through 4 levels at a temperature of 5 ° C, 10 ° C; 15 ° C TO 25 ° C. Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 33/43... -
Page 34: Capteur Cyclops 7 Turner Designs (Tbd, Fluo & Phycocyanine)
The adjustment can be made using the two methods described below. By using known reference solutions that will be the adjustment points (+ the "zero" value) By performing a measurement in situ. Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 34/43... -
Page 35: Adjustment Using Standard Solutions
9.3.1 Adjustment using standard solutions 9.3.1.1 Preparation Before performing the calibration of nke probes for fluorescence, you must make sure the following points are fully met: Ensure that the probe and other products are free of fouling (sand, mud, etc.) In the "channels"... - Page 36 Now, the curve should indicate consistent values for the different stages Check the value of the "Zero" bath Upload the "configuration" to the probe and check the consistency of measurement using a "real time" read test Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 36/43...
-
Page 37: In Situ Adjustment
The "physical" value TY corresponds to the value Y To improve the adjustment, it is also recommended to check or redo the "Zero" setting. To do so, use the method described in paragraph 9.3.2.1Erreur ! Source du renvoi introuvable.. Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 37/43... -
Page 38: Oxygen Sensor
If deposits like biofilm or mud persist, wipe the membrane gently with a sweet cloth or an absorbent paper. Storage: keep the membrane hydrated in the protective cover and using a damp absorbent material (such as cotton). Following dry storage, rehydrate the membrane for 12 hours. Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 38/43... -
Page 39: Ph Sensor
Once the measurement file has been recovered, the calibration settings in the pH channel need to be modified by replacing the CAN and physical values in the probe configuration with the new values found. For more details, see the Winmemo II user manual. Example of pH standard solutions Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 39/43... -
Page 40: Characteristics
Dimensions: Length: 425 mm, diameter: 110 mm Weight in air: around 3.6 kg Weight in water: around 0.5 kg Buoy equipped with the SAMBAT: Dimensions: Length: 1750 cm, diameter: around 29 cm Weight in air: around 11 kg 10.3 RADIO LINK SPECIFICATIONS Frequency: 868.300MHz... -
Page 41: Influence Of Gps On Consumption
Two GPS positions per day GPS Configuration Battery life GPS OFF ~ 10 months 6 GPS positions/d ~ 8 months (4 GPS positions + 2 timeouts)/d ~ 5.5 months Timeout permanent ~ 4.6 months Tel 02-97-36-41-31 Fax 02-97-36-55-17 http://www.nke.fr PAGE 41/43... -
Page 42: Replacing The Battery Packs
When the SAMBAT is no longer powered, the configuration and last measurements are saved, but not the internal clock. The time on the SAMBAT needs to be updated after a battery change, using the Update function in the Winmemo II software. -
Page 43: Annex 1: Gps/Gprs Aerial Coaxial Connector
END OF LIFE The SAMBAT is electronic equipment. In accordance with the Waste Electrical and Electronic Equipment Directive (WEEE), it must be collected by an organisation approved to collect and sort WEEE.
