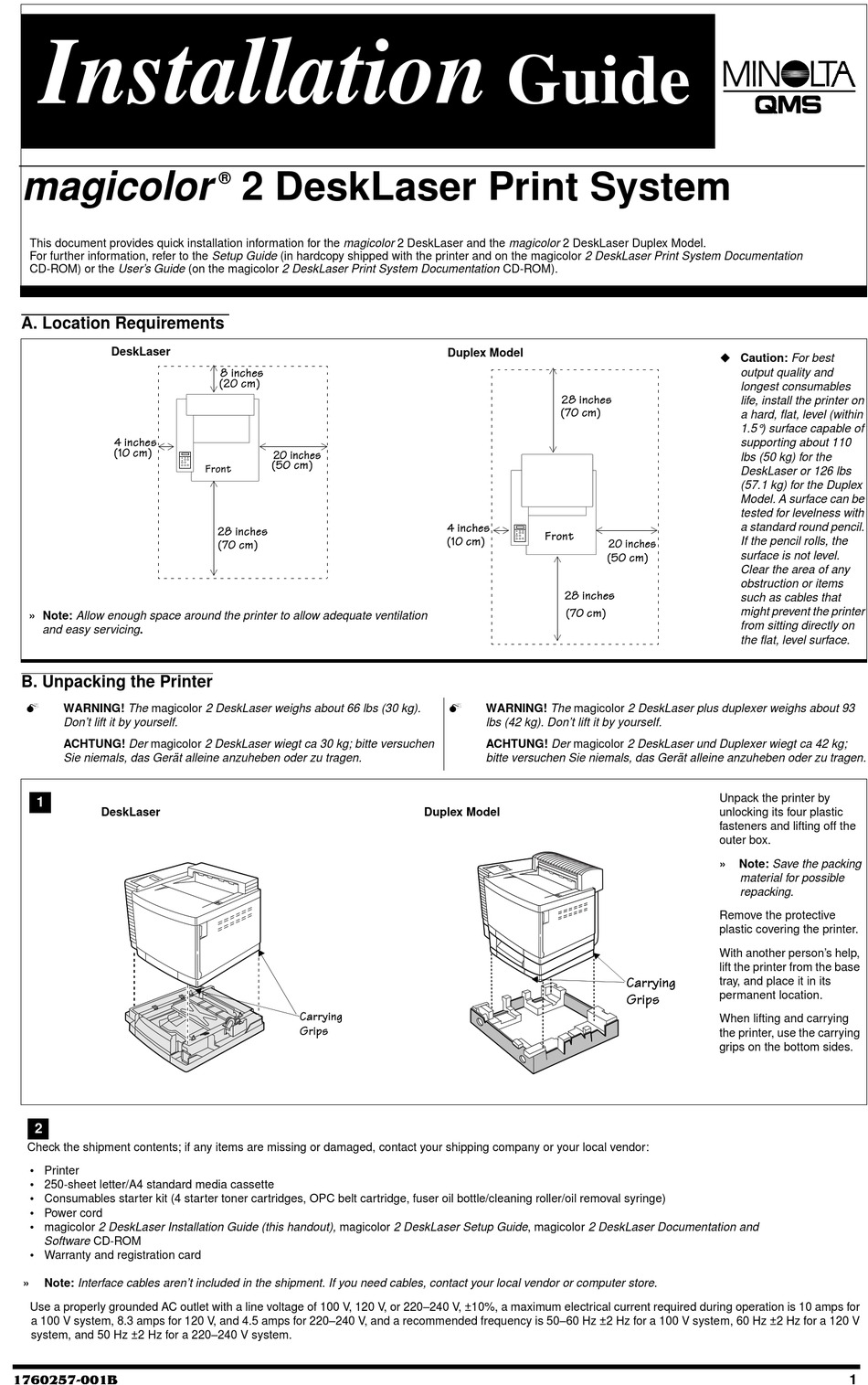

MINOLTA-QMS Magicolor 2 Desklaser Installation Manual

Installation
magicolor
This document provides quick installation information for the magicolor 2 DeskLaser and the magicolor 2 DeskLaser Duplex Model.
For further information, refer to the Setup Guide (in hardcopy shipped with the printer and on the magicolor 2 DeskLaser Print System Documentation
CD-ROM) or the User's Guide (on the magicolor 2 DeskLaser Print System Documentation CD-ROM).
A. Location Requirements
DeskLaser
7 LQFKHV
+43 FP,
» Note: Allow enough space around the printer to allow adequate ventilation
and easy servicing .
B. Unpacking the Printer
0
WARNING! The magicolor 2 DeskLaser weighs about 66 lbs (30 kg).
Don't lift it by yourself.
ACHTUNG! Der magicolor 2 DeskLaser wiegt ca 30 kg; bitte versuchen
Sie niemals, das Gerät alleine anzuheben oder zu tragen.
1
DeskLaser
2
Check the shipment contents; if any items are missing or damaged, contact your shipping company or your local vendor:
• Printer
• 250-sheet letter/A4 standard media cassette
• Consumables starter kit (4 starter toner cartridges, OPC belt cartridge, fuser oil bottle/cleaning roller/oil removal syringe)
• Power cord
• magicolor 2 DeskLaser Installation Guide (this handout), magicolor 2 DeskLaser Setup Guide , magicolor 2 DeskLaser Documentation and
Software CD-ROM
• Warranty and registration card
» Note: Interface cables aren't included in the shipment. If you need cables, contact your local vendor or computer store.
Use a properly grounded AC outlet with a line voltage of 100 V, 120 V, or 220–240 V, ±10%, a maximum electrical current required during operation is 10 amps for
a 100 V system, 8.3 amps for 120 V, and 4.5 amps for 220–240 V, and a recommended frequency is 50–60 Hz ±2 Hz for a 100 V system, 60 Hz ±2 Hz for a 120 V
system, and 50 Hz ±2 Hz for a 220–240 V system.
4:9358:0334% 4:9358:0334%
4:9358:0334% 4:9358:0334%
2 DeskLaser Print System
®
; LQFKHV
+53 FP,
53 LQFKHV
+83 FP,
)URQW
5; LQFKHV
+:3 FP,
&DUU\LQJ
*ULSV
Guide
Duplex Model
5; LQFKHV
+:3 FP,
7 LQFKHV
)URQW
+43 FP,
5; LQFKHV
+:3 FP,
0
WARNING! The magicolor 2 DeskLaser plus duplexer weighs about 93
lbs (42 kg). Don't lift it by yourself.
ACHTUNG! Der magicolor 2 DeskLaser und Duplexer wiegt ca 42 kg;
bitte versuchen Sie niemals, das Gerät alleine anzuheben oder zu tragen.
Duplex Model
‹ Caution: For best
output quality and
longest consumables
life, install the printer on
a hard, flat, level (within
1.5°) surface capable of
supporting about 110
lbs (50 kg) for the
DeskLaser or 126 lbs
(57.1 kg) for the Duplex
Model. A surface can be
tested for levelness with
a standard round pencil.
53 LQFKHV If the pencil rolls, the
+83 FP,
surface is not level.
Clear the area of any
obstruction or items
such as cables that
might prevent the printer
from sitting directly on
the flat, level surface.
Unpack the printer by
unlocking its four plastic
fasteners and lifting off the
outer box.
» Note: Save the packing
material for possible
repacking.
Remove the protective
plastic covering the printer.
With another person's help,
lift the printer from the base
&DUU\LQJ
tray, and place it in its
*ULSV permanent location.
When lifting and carrying
the printer, use the carrying
grips on the bottom sides.
1
