IM-IBR15-23-IN
Issue 1
UTD30 Series
of Thermodynamic Steam Traps
Installation and Maintenance Instructions
1. Safety information
2. General
product information
UTD30
3. Installation
4. Commissioning
5. Operation
6. Maintenance
7. Spare parts
© Copyright 2016
IM-IBR15-23-IN Issue 1
1
Printed in India

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UTD30 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Spirax Sarco UTD30 Series

  • Page 1 IM-IBR15-23-IN Issue 1 UTD30 Series of Thermodynamic Steam Traps Installation and Maintenance Instructions 1. Safety information 2. General product information UTD30 3. Installation 4. Commissioning 5. Operation 6. Maintenance 7. Spare parts © Copyright 2016 IM-IBR15-23-IN Issue 1 Printed in India...
  • Page 2 IM-IBR15-23-IN Issue 1...
  • Page 3: Safety Information

    These products have been specifically designed for use on steam, air or condensate/ water. The products’ use on other fluids may be possible but, if this is contemplated, Spirax Sarco should be contacted to confirm the suitability of the product for the application being considered.
  • Page 4: Pressure Systems

    Allow time for temperature to normalise after isolation to avoid danger of burns. 1.9 Tools and consumables Before starting work ensure that you have suitable tools and/or consumables available. Use only genuine Spirax Sarco replacement parts. 1.10 Protective clothing Consider whether you and/or others in the vicinity require any protective clothing to protect against the hazards of, for example, chemicals, high/low temperature, radiation, noise, falling objects, and dangers to eyes and face.
  • Page 5: Returning Products

    1.16 Returning products Customers and stockists are reminded that under EC Health, Safety and Environment Law, when returning products to Spirax Sarco they must provide information on any hazards and the precautions to be taken due to contamination residues or mechanical damage which may present a health, safety or environmental risk.
  • Page 6: General Product Information

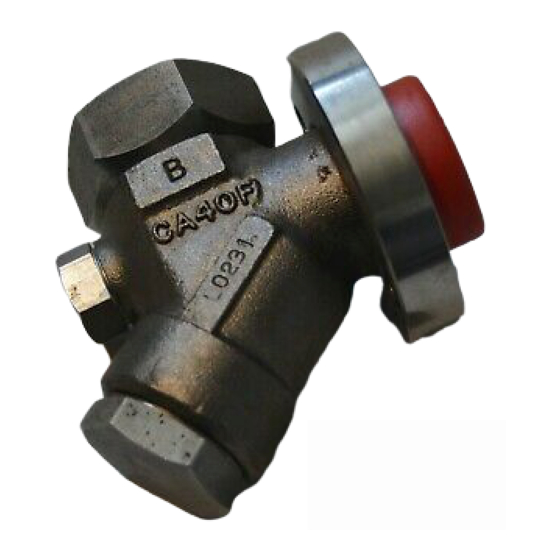

    Traps can be removed/replaced using a simple wrench with minimum system downtime. UTD30 series The UTD30 is a stainless steel thermodynamic steam trap with integral strainer. It is attached to a suitable pipeline connector by two bolts for quick and easy replacement.
  • Page 7 Groove identifies UTD30LA versions UTD30LA and UTD30HA anti-air-binding disc Fig. 1 UTD30L shown fitted to a PC10HP connector IM-IBR15-23-IN Issue 1...
  • Page 8 255 °C @ 30 bar g (491 °F @ 435 psi g) temperature Minimum operating temperature 0 °C (32 °F) Note: For lower operating temperatures consult Spirax Sarco. ΔPMX Maximum differential pressure 30 bar (435 psi g) PMOB Maximum operating backpressure should not exceed 80% of the upstream pressure Minimum inlet pressure for satisfactory operation 0.25 bar g...
  • Page 9: Installation

    The UTD30 can be installed on any pipeline connector, but must be installed in a horizontal plane with the strainer cap pointing downwards. See separate Installation and Maintenance Instructions for Spirax Sarco pipeline connectors. Ensure that both gaskets are clean and undamaged and that the transfer holes are clear.
  • Page 10: Operation

    5. Operation The UTD30 is a thermodynamic steam trap which use a disc to control the release of condensate and to trap steam. The trap cycles open and closed to discharge condensate close to steam temperature and closes tight between discharges. The disc, which is the only moving part, rises and falls in response to dynamic forces produced by the partial re- evaporation (flashing) of hot condensate.
  • Page 11 6.3 How to repair or replace the disc/seat: Remove the insulating cover (14) if fitted and unscrew the cap (2) using a suitable socket or spanner. Do not use Stillsons or a wrench of a similar type which may cause distortion of the cap.
  • Page 12 6.4 How to clean or replace the strainer screen UTD30: Unscrew the strainer cap (6) using a spanner. Withdraw the screen (5) and clean, or if damaged replace with a new one. To reassemble, insert the screen (5) into the cap (6), then screw the cap into place. Note: A fine smear of 'Molybdenum Disulphide' grease should be applied to the first few threads.
  • Page 13: Spare Parts

    Always order spare parts by using the description given in the column headed 'Available spares' and state the size and type of trap. Example 1: Packet of 3 discs for a Spirax Sarco UTD30L steam trap. Example 2: Strainer screen for a Spirax Sarco UTD30H steam trap.
  • Page 14 IM-IBR15-23-IN Issue 1...
  • Page 15 IM-IBR15-23-IN Issue 1...
  • Page 16 IM-IBR15-23-IN Issue 1...
