LST FI750/RF/M1IN Quick Start Manual

FI750/RF/M1IN
Wireless Battery Powered
Input Module
IMPORTANT TO CONSIDER
When mounting a wireless device a comprehensive radio survey
should have been carried out to establish the location that provides
the best coverage and optimum reach. Taking into consideration the building
structure and materials, the survey identifies the wireless infrastructure
required and product locations for optimum performance, identifying
any factor that could prevent radio integrity.
Avoid fixing or mounting the unit close to the following:
• Equipment that utilises large electrical currents
• Large metal objects or structures
• Fluorescent lighting fittings
• Metal ceiling structures
• IT cabling.
Keep 2 meters minimum spacing between other wireless equipment
in the area to avoid signal interference.
EN54 approved environmental temperature range is -10°C to +55°C
UNBOXING
• When unboxing the input module you will find the unit and its lid.
• This comes with pre-formed mounting holes to drill out and mount the backbox.
• Securing screws are supplied for the lid.
• A resistor pack is supplied for the monitored connection (10KΩ R
For more information, please refer to the complete product manual.
ARGUS SECURITY SRL
WIRELESS BATTERY POWERED INPUT MODULE
QUICK START GUIDE
THE BOX INSIDE THE BOX
QR code • 1 x Input Module
Part number • 2 x CR123A batteries
Product name • 4 x Securing screws
• 1 x Resistor pack
• 1 x Product manual
• 1 x Quick start guide
• 1 x QR code
and 5.6KΩ R ).
EOL AL
FI750/RF/M1IN

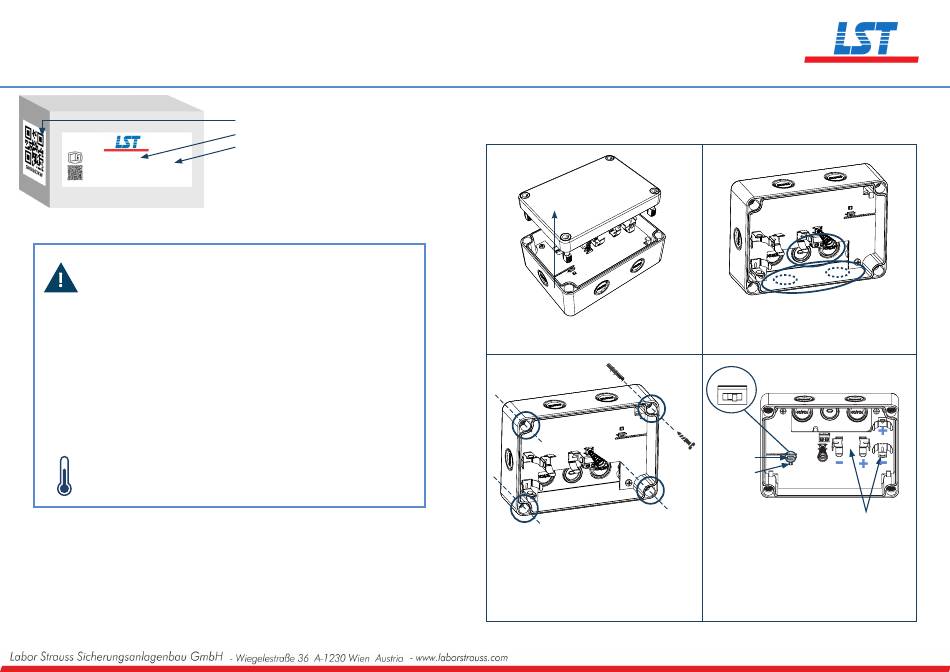

MOUNTING STEPS
The Input Module is designed to meet IP65 rating, suitable for external mounting.
Proceed as follows to complete the device installation.
Remove the lid from the back box, removing the screws
on the corners.
• To retain IP rating, please ensure you use the outer holes
on the casing.
• Using a pencil, mark through the outer holes on the desired
surface you will attach the unit to.
• Using a suitable-sized drill bit (6 mm) drill the marked screw
points on your chosen surface.
• Ensure you use the correct fixings for the type of surface
you are mounting to.
• Screw the backbox to the desired surface using all fixing holes
and appropriate-sized roundhead screws (not countersunk).
1
• Remove the appropriate knock out on the underside or lower
rear of the casing, install the M16/20 IP rated gland.
• Note: pay attention to avoid damages to the PCB, while
removing the knock out, or remove it before starting.
3
ON 1
DIP
SWITCH
LED
BATTERY
COMPARTMENTS
• Ensure the switch on the PCB is in position ON.
• Fit the 2x CR123A batteries ensuring you have checked
they are the correct way round observing the polarity
indications on the PCB.
• The LED will signal 4 times red.
• Move the switch on the PCB to position 1. The LED will blink
few seconds green and then signal alternatively green/red
4 times.
L50-MIS-0001 (Rev_P.1)
