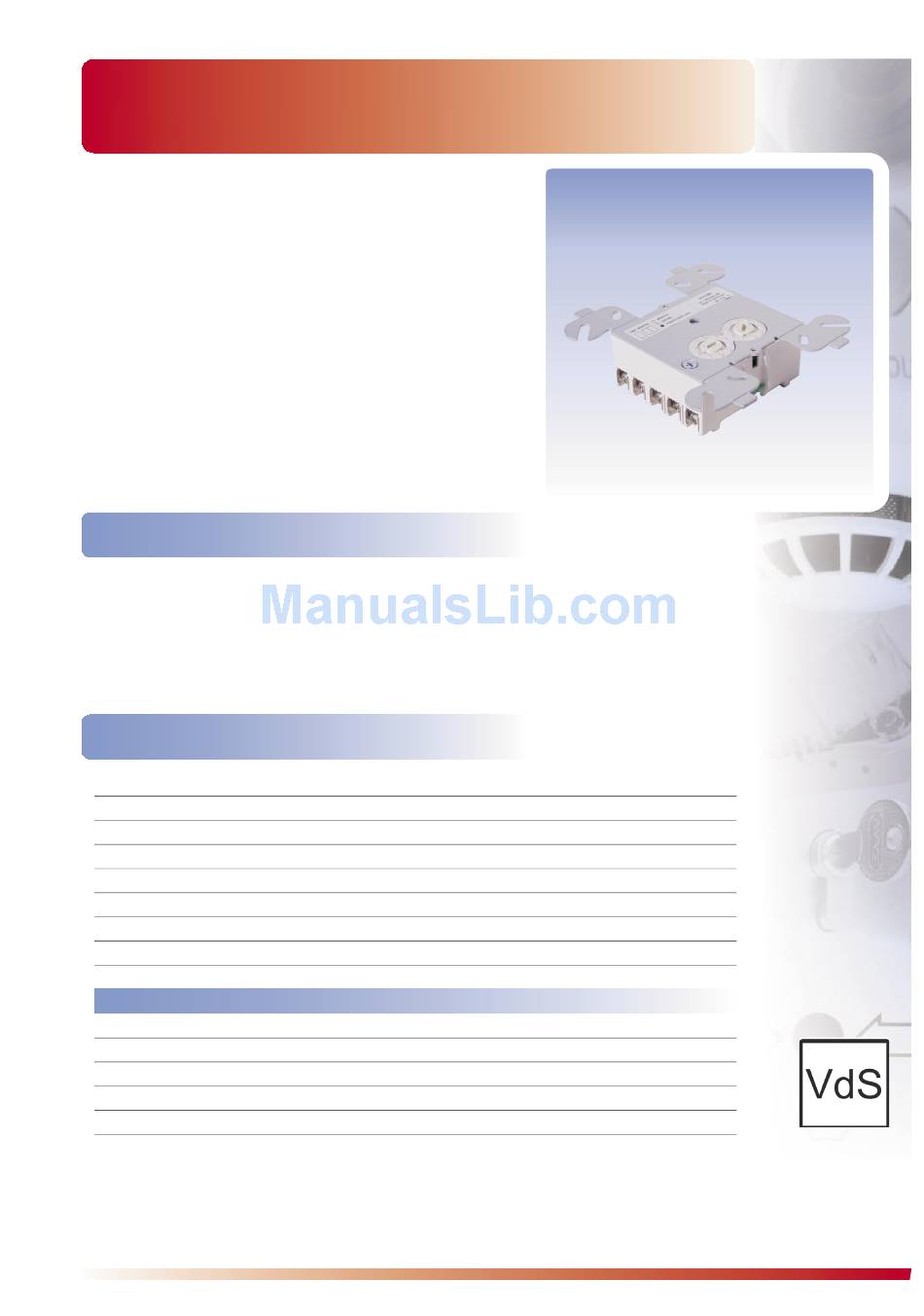

LST Conventional Zone Module M512ME Specifications

Conventional Zone Module
M512ME
• ADM loop technology with
System Sensor/200 protocol
• Integration of conventional and
special detectors into the ADM loop
• Output for resetting of detectors
• Setting of module address via
decadic rotary switches
Description
The addressable Conventional Zone Module M512ME
serves for the integration of conventional detectors,
detectors for intrinsically safe areas and special detec-
tors into an ADM loop with System Sensor/200 proto-
col. The conventional zone module provides an output
for resetting special detectors.
Specifi cations
Operating voltage
Current consumption from loop
Ambient temperature
Dimensions L × W × H (without mounting plate)
Weight
Approval
Order number
Order name
Surface Mounting Box
Dimensions W × H × D
Colour
Weight
Order number
Order name
Building Safety. Building Security.
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
OFFICE@LST.AT • WWW.LST.AT • ALL RIGHTS RESERVED
The address of the module is easily selected by means
of two integrated decadic rotary switches. The Surface
Mounting Box SMB500 is required for mounting the
module.
The module must be powered by an external supply.
18 – 32VDC
300µA (quiescent)
-10°C to +60°C
70 × 70 × 32 (mm)
142g
VdS G297009
249045
Conventional Zone Module/Anal./500/SS M512ME
125 × 124 × 55 (mm)
cream
155g
249004
Surface Mounting Box for M500/SS SMB500
A
