LST FI750/RF/M1IN Manual

GENERAL DESCRIPTION
The FI750/RF/M1IN is a device that acts as an interface between the wireless security system and any external device that works on a "switch
on / switch off" criteria.
FI750/RF/M1IN is battery powered and doesn't need any external power supply.
4 2
1
2
3
2
1

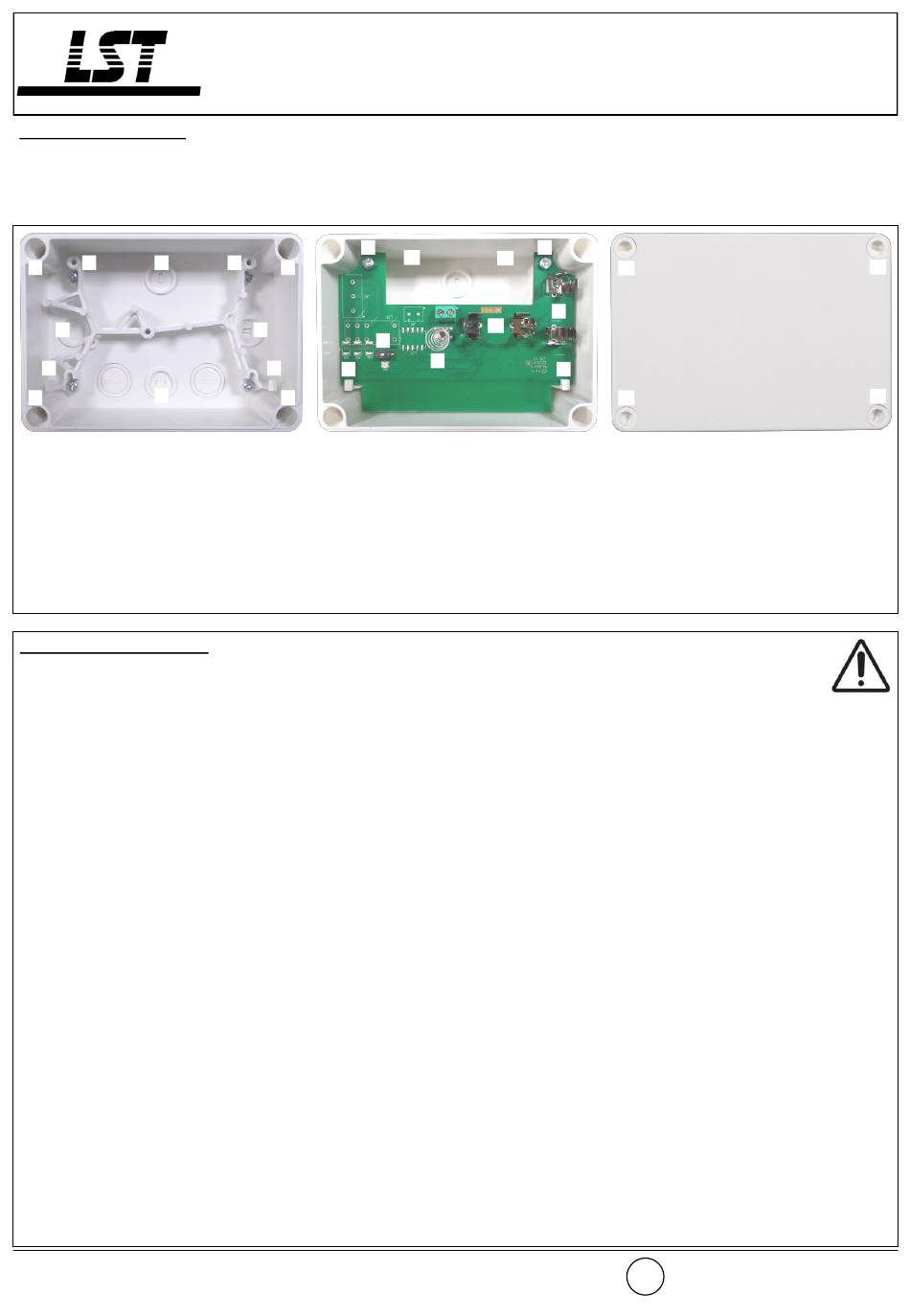

1) Screw hole for wall fixing (IP safe)
2) Knock out screw hole for wall fixing (not IP safe)
3) Printed circuit board stop
4) Printed circuit board fixing screw's housing
5) Printed circuit board fixing screw
6) Link program switch
DEPLOYMENT PROCEDURE
1) Select a location for the module.
See LOCATION SELECTION.
2) Unbox the module from its packaging.
3) Detach the top cover.
See HANDLING THE TOP COVER.
4) Uninstall the printed circuit board from the box.
See HANDLING THE PRINTED CIRCUIT BOARD.
5) Knock-out the required M16/20 input cabling entries.
See CABLE ENTRY.
6) Fix the module's box to the wall.
See WALL INSTALLATION.
7) Power up the module.
See POWERING UP - FIRST TIME USE.
See POWERING UP - RECOVERY.
8) Link the module to the system.
See LINKING - WAKE-UP.
See LINKING - ONE-BY-ONE.
9) Reinstall the printed circuit board.
See HANDLING THE PRINTED CIRCUIT BOARD.
10) Wire up the input cabling to the module.
See WIRING.
11) Seal the module with its top cover.
See HANDLING THE TOP COVER.
12) Test the module.
See TESTING.
Labor Strauss Sicherungsanlagenbau Gmbh - Wiegelestrasse 36 A-1230 Wien Austria
FI750/RF/M1IN
Wireless Input Module
5
4
1
2
6
3
3
1
7) Input supervised port
8) Tamper detection switch
9) Battery A
10) Battery B
11) Knock-out M16/20 input cabling entry
12) Module box's sealing screws
5
11
11
7
9
10
8
3
12
12
