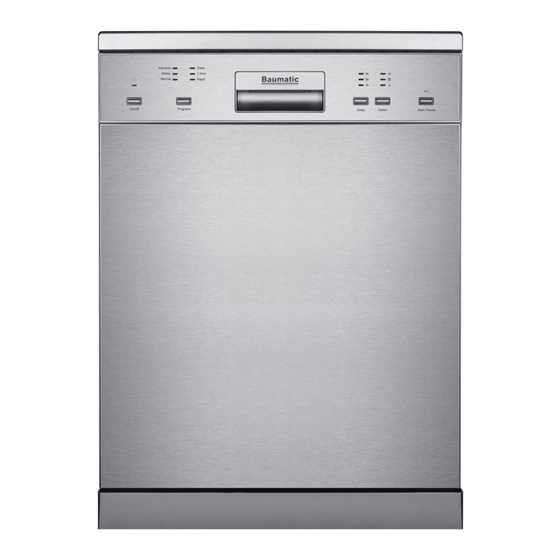

60cm freestanding dishwasher

Advertisement

Quick Links

USER MANUAL FOR YOUR BAUMATIC
60cm Freestanding Dishwasher
BDW603SS1
BDW603W1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDW603SS1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Baumatic BDW603SS1

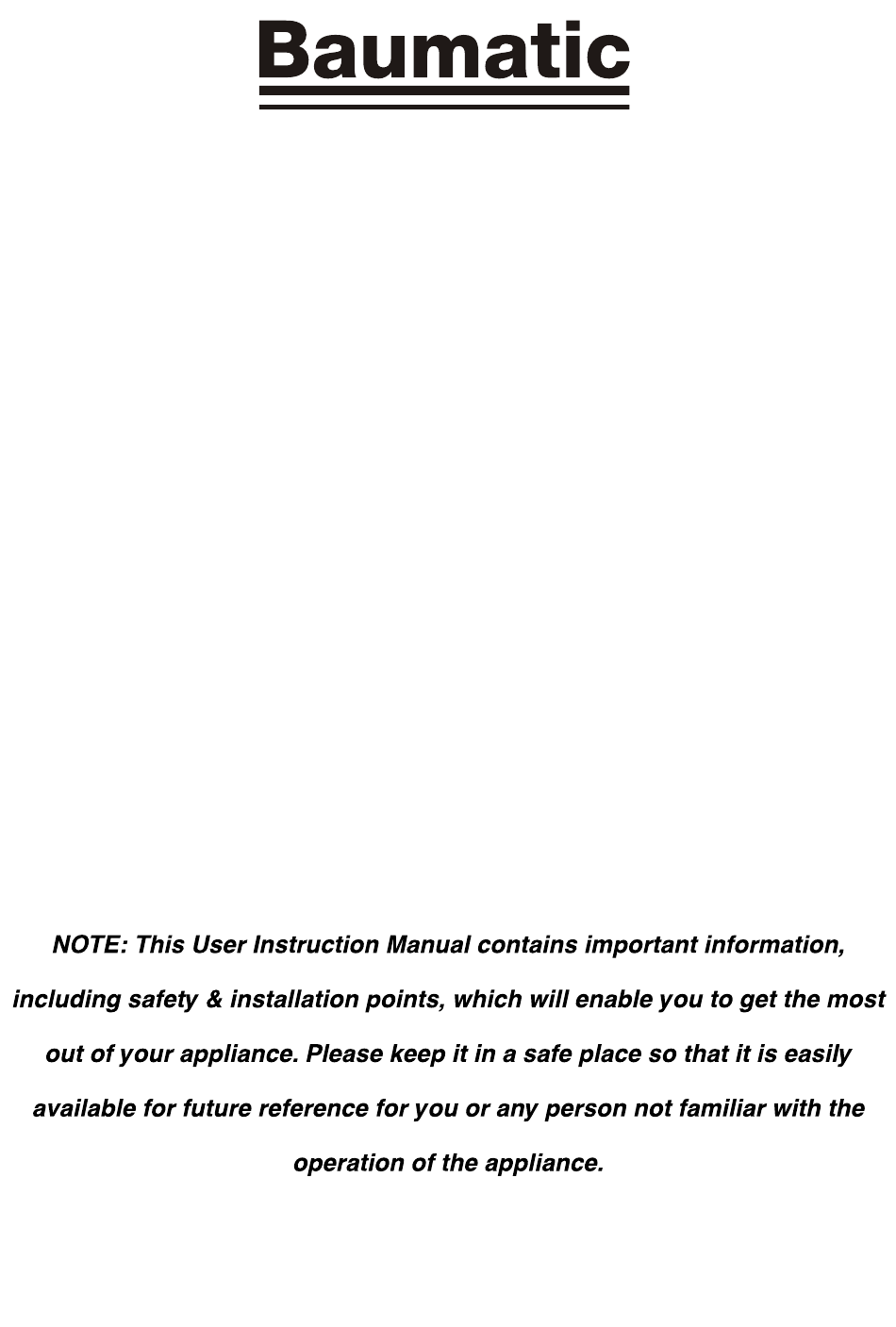

  • Page 1 USER MANUAL FOR YOUR BAUMATIC 60cm Freestanding Dishwasher BDW603SS1 BDW603W1...
  • Page 2 uick Operation Guide For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the On/Off button to switch on the appliance, open the door Compartment A: For each wash cycle. Compartment B : Fill the detergent dispenser For programs with pre-wash only.
  • Page 3: Table Of Contents

    Read this Manual 1) Safety Information..........1 Dear Customer, 2) Operating Instructions........2 Control panel...........2 This appliance is intended to be used in household and similar applications such as: Dishwasher features........2 -staff kitchen areas in shops, offices and other working environments; 3) Prior using for the first time.......3 -farm houses;...
  • Page 4: Safety Information

    1.IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING WARNING! When using your dishwasher, follow the precautions listed below: GROUNDING INSTRUCTIONS WARNING! This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock.
  • Page 5: Operating Instructions

    2.Operation Instruction IMPORTANT To get the bes t performance from your dis hwas her, read all operating ins tructions before us ing it for the firs t time. Control Panel 1.On/Off Button:To turn on/ off the power supply. 9. Rinse Aid Indicator: To be on when dispenser 2.
  • Page 6: Prior Using For The First Time

    Prior using for the first time Before using your dishwasher for the first time: Fill the rinse aid dispenser Fill in detergent A. Rinse Aid Dispenser Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks.
  • Page 7: Detergent

    NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door. Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser Adjust lever set on "4".
  • Page 8 Amount of Detergent to Use Push latch to open NOTE: If the lid is closed: press release button. The lid will spring open. Always add the detergent just before starting each wash cycle. Only use branded detergent and rinse aid for dishwasher. The amount of detergent to use varies depending on the cycle.
  • Page 9: Loading The Dishwasher Baskets

    4.Loading the Dishwasher Baskets Recommendation Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.
  • Page 10: The Method Loading Normal Dishware

    The Method Loading Normal Dishware Loading the Lower Basket Loading the Upper Basket The upper basket is designed to hold more delicate and We suggest that you place large items and the most difficult to clean items are to be placed into the lower lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow basket: such as pots, pans, lids, serving dishes and...
  • Page 11: Starting A Washing Programme

    5.Starting a washing program Wash Cycle Table Means: need to fill rinse aid into the Rinse-Aid Dispenser. NOTE: Detergent Cycle Selection Description Running Energy Rinse Water Program of Cycle pre/main Information time(min) (Kwh) Ў Pre-wash(50 For heaviest soiled crockery, Intensive Ў...
  • Page 12: Change The Programme

    NO T E : When you press the Start/Pause button to pause during washing, The program light will stop blinking and the buzzer will be sound every minute unless you press the Start/Pause button to start. Change the Program Premise: A cycle that is underway can only be modified if it has only been running for a short time.
  • Page 13: Maintenance And Cleaning

    6.Maintenance and Cleaning Filtering System The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter, a flat (Main filter) and a microfilter(Fine filter).
  • Page 14: Caring For The Dishwasher

    Notes: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. NOTE: The entire filter assembly should be cleaned once a week. Cleaning the Filter To clean the coarse filter and the fine filter, use a cleaning brush.
  • Page 15: Installation Instruction

    How to Keep Your Dishwasher in Shape When not in Use for a LongTime After Every Wash It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside.
  • Page 16: Water Connection

    Improper connection of the equipment earthing conductor can result in the risk of an WARNING! for personal safety: electric shock. DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE. Check with a qualified electrician or service representative if you are in doubt whether the DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING appliance is properly earthed.
  • Page 17: Before First Starting

    How to Drain Excess Water From Hoses If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
  • Page 18: Troubleshooting Tips

    8.Troubleshooting Tips Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible CausesWhat To Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher start...
  • Page 19: Error Codes

    Problem Possible Causes What To Do The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. are not clean The program was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent.
  • Page 20: Technical Information

    If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leaks, WARNING! the water should be removed before restarting the dishwasher. Technical Information Height : 845mm Width :...
  • Page 22 Imported by Applico Ltd. Website www.baumatic.co.nz...
