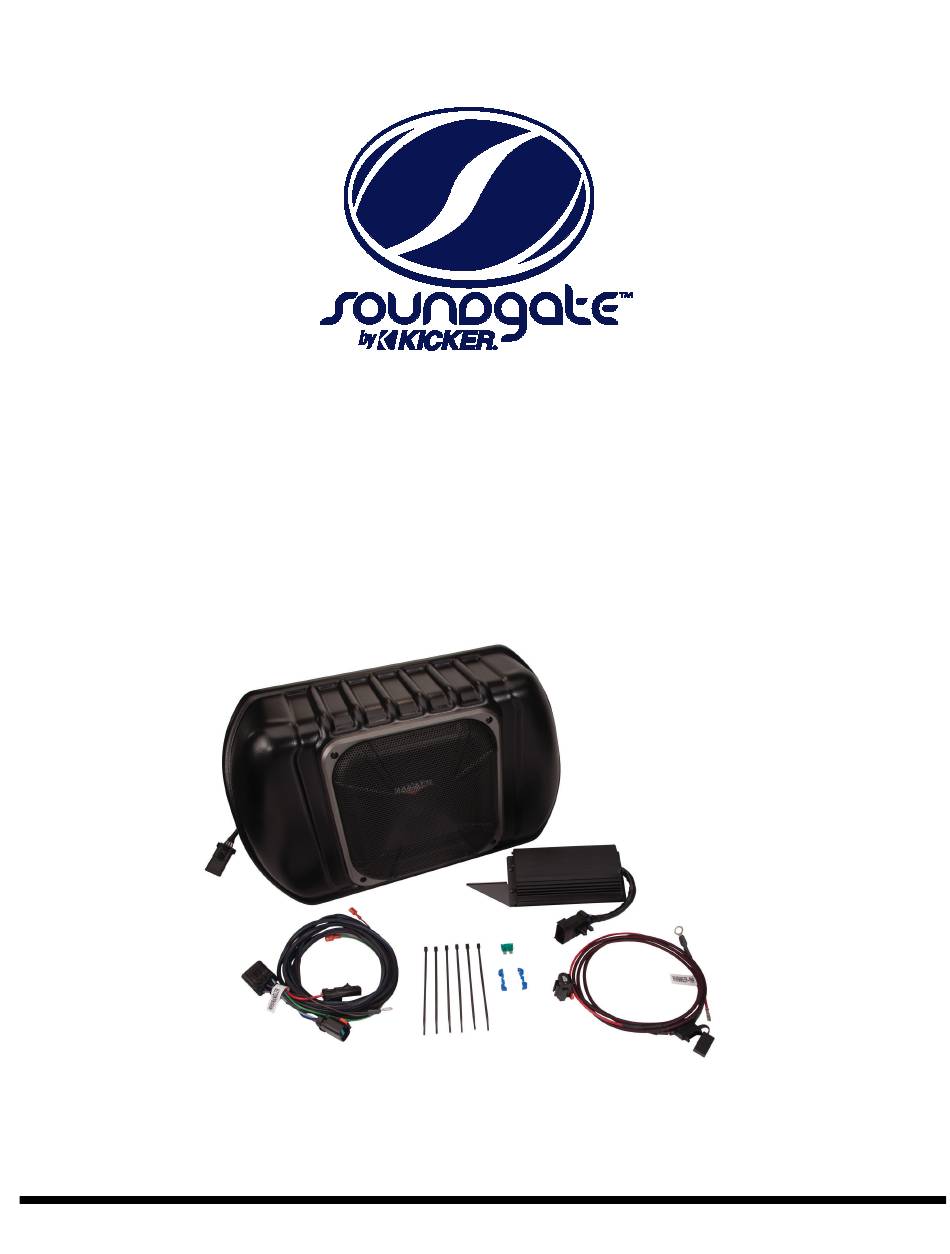

- Page 1 Designed for 2006-2010 Jeep Wrangler vehicles SWRA406 SUBWOOFER ASSEMBLY 200 WATT AMP OVERLAY HARNESS T-TAP x2 25A FUSE POWER HARNESS WIRE TIES x6 SWRA406 - ©2012 Stillwater Designs 9-27-12 Page 1 of 8...
- Page 2 Subwoofer Installation 1. Disconnect the negative battery cable. 2. Gently pull out on the panel just below the steering column, rotate down and remove. Fig. 1 3. Find the small panel just below the one you just removed and pull to remove it as well. Fig. 2 Fig.
- Page 3 Fig. 5 Fig. 6 11. Remove the top of the fuse cover and using a 13mm socket and ratchet loosen and remove the nut on the positive battery accessory lug. Fig. 7 12. Connect the ring terminal of the power harness to the lug and retighten the nut. Torque to 10Nm. 13.
- Page 4 Subwoofer Input Connection for Premium Audio vehicles with factory eight-channel amplifier installed 21. Locate the 16 pin connector on the amplifier under the steering column. Find the green/brown stripe wire and the gray/brown strip wire in this connector and install one of the self stripping t-tap connectors on to each wire.
- Page 5 Fig. 14 Fig. 13 29. The installation is complete and the subwoofer enclosure is easily removable if necessary by reversing steps 23 and 24. 30. Reinstall all previously removed parts in reverse order. 31. Install supplied fuses in the fuse holders under hood. 32.
- Page 6 Troubleshooting the Kicker Integrated Systems If you experience a problem once the Subwoofer is installed use this guide to locate the trouble. The radio is working, but the Subwoofer is not working: Check the battery voltage to make sure it is not discharged below 11 volts.
- Page 7 Symptom Possible Cause Solution Fuse not installed in inline Install fuse(s) into fuse holder(s). Refer to fuse holder on subwoofer instructions for correct placement and/or amp harness Low battery voltage Recharge the battery Negative battery cable not Reconnect negative battery cable connected Power wire connector not Connect power wire to body harness.
- Page 8 If you continue to experience problems after troubleshooting with this list, please contact KICKER Technical Support at (800) 256-0808 ext. 6009, or support@kicker.com. –8510 SWRA406 - ©2012 Stillwater Designs 9-27-12 Page 8 of 8...
