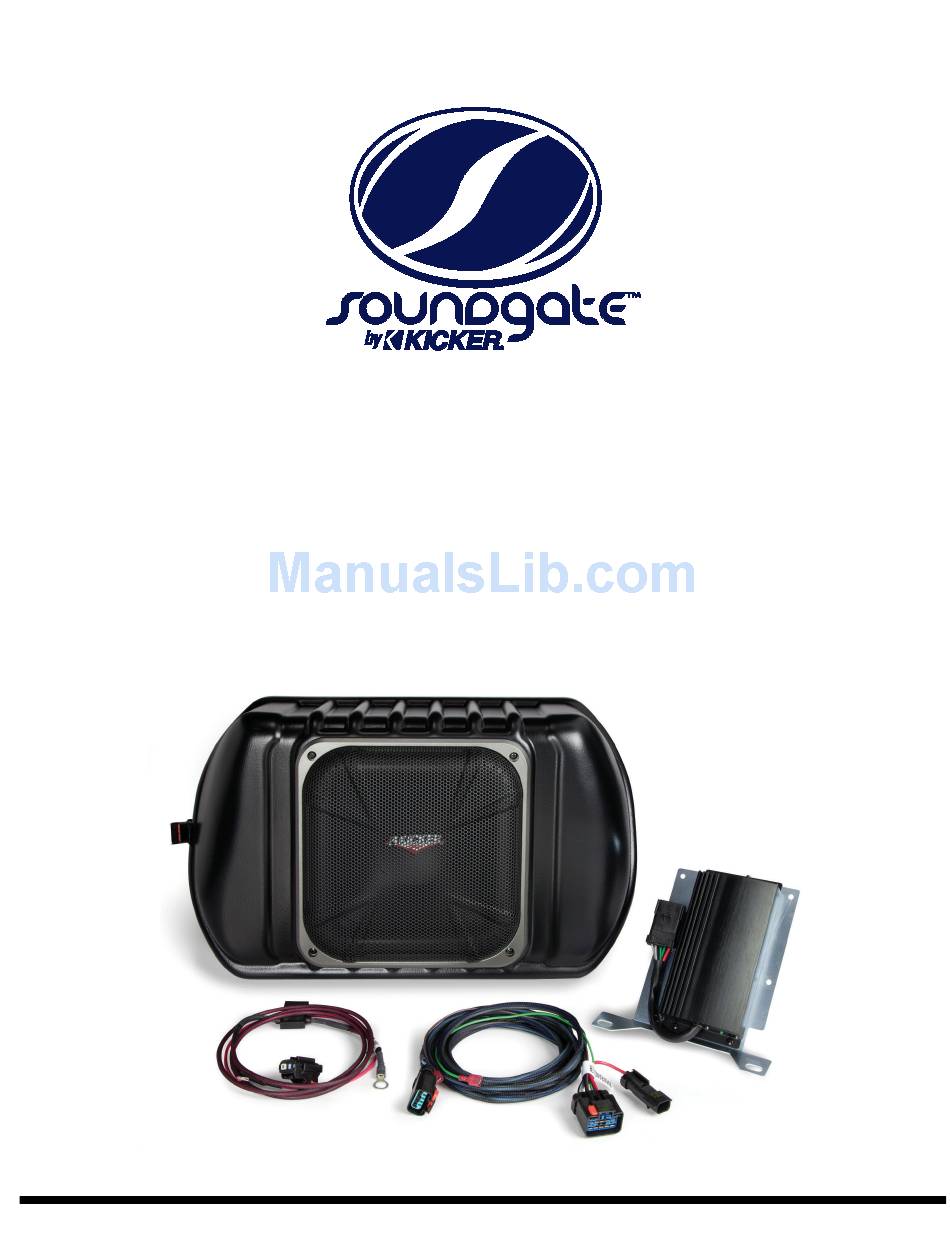

- Page 1 Designed for 2011 and newer Jeep Wrangler vehicles SWRA411 T-TAP x2 10MM BOLT FUSE 25 AMP WIRE TIES x6 SUBWOOFER ASSEMBLY 200 WATT AMP POWER HARNESS OVERLAY HARNESS SWRA411 - ©2012 Stillwater Designs 9-27-12 Page 1 of 8...
- Page 2 6. Install the supplied 10mm bolt into the bottom hole and leave loose. Fig. 5 7. Reinstall the metal plate over the top of the amp bracket and replace the factory bolts and tighten. 8. Tighten the bottom bolt. Fig. 5 SWRA411 - ©2012 Stillwater Designs 9-27-12 Page 2 of 8...
- Page 3 19. Locate the left front lower dash speaker wires on the back of the plastic speaker housing. The wire colors are gray with a yellow stripe and gray with a purple stripe. Fig. 9 SWRA411 - ©2012 Stillwater Designs 9-27-12...
- Page 4 28. Run the wire harness along the floor under the rear seats to approximately the middle of the vehicle and pull the end of the harness under the seat to the cargo area. Fig. 13 SWRA411 - ©2012 Stillwater Designs 9-27-12...
- Page 5 Fig. 13 31. Reinstall all previously removed parts in reverse order. 32. Install supplied fuse in the fuse holder under hood. 33. Reconnect the negative battery cable. Torque to 5Nm. SWRA411 - ©2012 Stillwater Designs 9-27-12 Page 5 of 8...
- Page 6 Check the multi-pin connectors at the back of the radio and at the amplifier chassis to make sure they are plugged all the way in. Check the ground wire connection to make sure it is tightly secured to the proper ground in the vehicle. SWRA411 - ©2012 Stillwater Designs 9-27-12 Page 6 of 8...
- Page 7 Radio comes on, but no Ground wire not grounded Check ground wire with voltmeter to insure it is sound from any speakers properly a good ground Low battery voltage Recharge the battery SWRA411 - ©2012 Stillwater Designs 9-27-12 Page 7 of 8...
- Page 8 If you continue to experience problems after troubleshooting with this list, please contact KICKER Technical Support at (800) 256-0808 ext. 6009, or support@kicker.com. –8510 SWRA411 - ©2012 Stillwater Designs 9-27-12 Page 8 of 8...
