©2016 Stillwater Designs
SRAMCQ09-A4-20160316

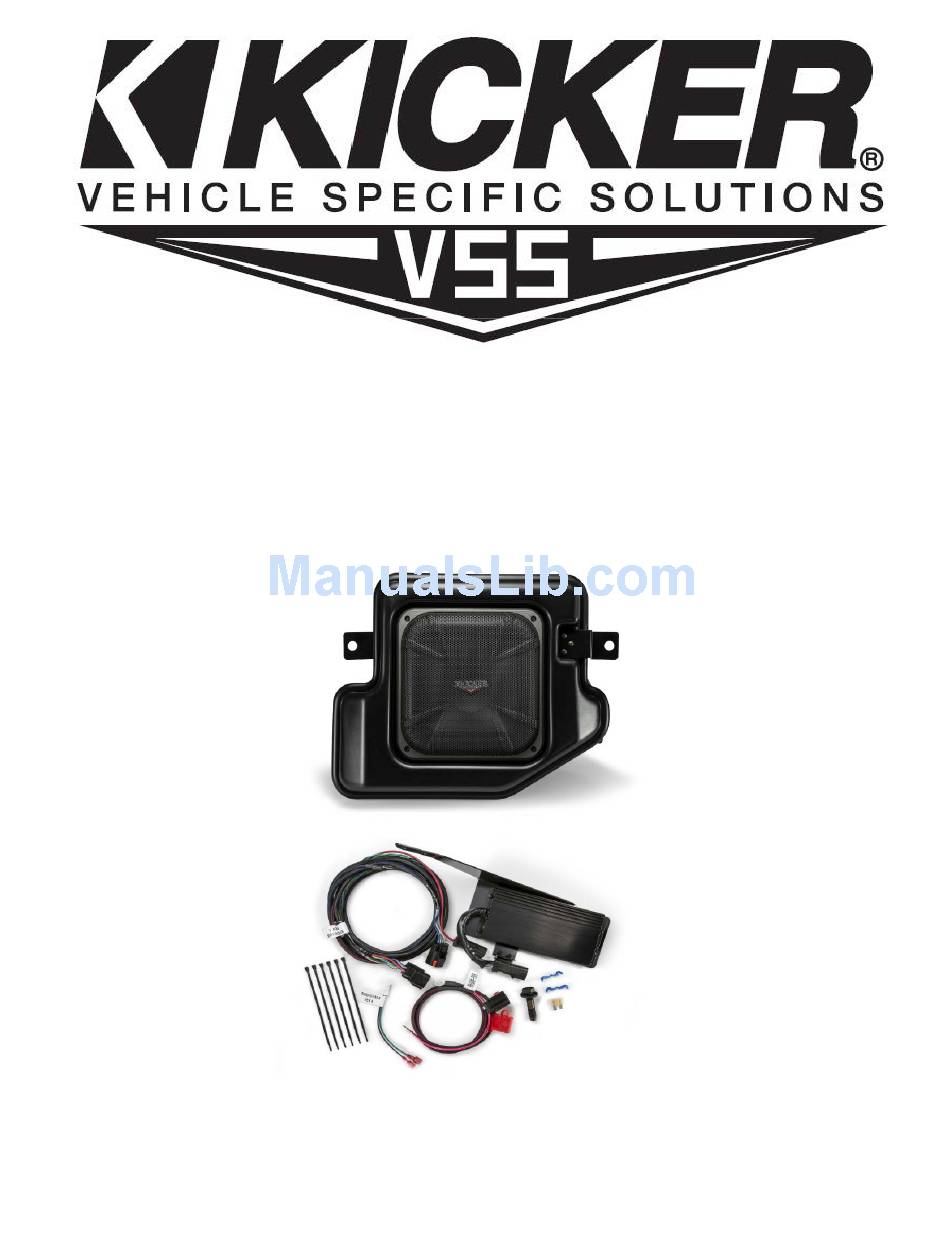

SRAMCQ09
Designed for 2009 & newer Dodge® Ram vehicles
Subwoofer
Subwoofer
Harness
Wire Ties x 6
Adapter Harness
Subwoofer
Amplifier
Subwoofer Power Harness
Bolt (only for solid rear bench seat)
Fuse
Wire Taps

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRAMCQ09 and is the answer not in the manual?

Questions and answers

Related Manuals for Kicker SRAMCQ09

Summary of Contents for Kicker SRAMCQ09

  • Page 1 SRAMCQ09 Designed for 2009 & newer Dodge® Ram vehicles Subwoofer Subwoofer Harness Subwoofer Amplifier Subwoofer Power Harness Bolt (only for solid rear bench seat) Wire Ties x 6 Fuse Adapter Harness Wire Taps ©2016 Stillwater Designs SRAMCQ09-A4-20160316...
  • Page 2 Power Harness Routing 1. Disconnect negative battery cable 2. Make sure the supplied fuse is not installed in the fuse holder of the subwoofer power harness and connect the harness to the stud pictured in Fig. 1. Torque stud nut to 14Nm (124in-lbs) 3.
  • Page 3 11. Connect the white two-pin input connector of the subwoofer harness to the white two-pin connector of the Kicker amplifier harness. Subwoofer Input Connection with Premium Audio (includes Kicker 12 channel upgrade on 2009-2012) 12. Locate the factory amplifier just below and left of the steering column. Find the gray/brown striped wire and the green/brown striped wire in the 16-pin amplifier connector and install the supplied wire taps with pliers.
  • Page 4 Fig 7 Fig 8 17. Connect the ten pin connector of the harness to the amplifier. Slide the red locking tab over to prevent the connectors from accidentally becoming disconnected. 18. Route the subwoofer four-pin connector toward the rear seat. 19.
  • Page 5 2013-present Cargo Tray Removal. 25. Remove the two smaller nuts in the rear. Fig. 13 26. Fold the tray up and remove the two seat bolts and then remove the tray. Fig. 14 Fig 13 Fig 14 27. For vehicles equipped with one piece rear bench seats remove the 18mm bolt securing the driver’s (left) side of the seat to the floor.
  • Page 6 Troubleshooting the Kicker Integrated Systems If you experience a problem once the subwoofer or amplifier are installed use this guide to locate the trouble. The radio is working, but the Subwoofer is not working: • Check the battery voltage to make sure it is not discharged below 11 volts.
  • Page 7 If you continue to experience problems after troubleshooting, please contact KICKER Technical Support at (800) 256- 0808 ext. 6009, or support@kicker.com. P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • (405) 624–8510...
