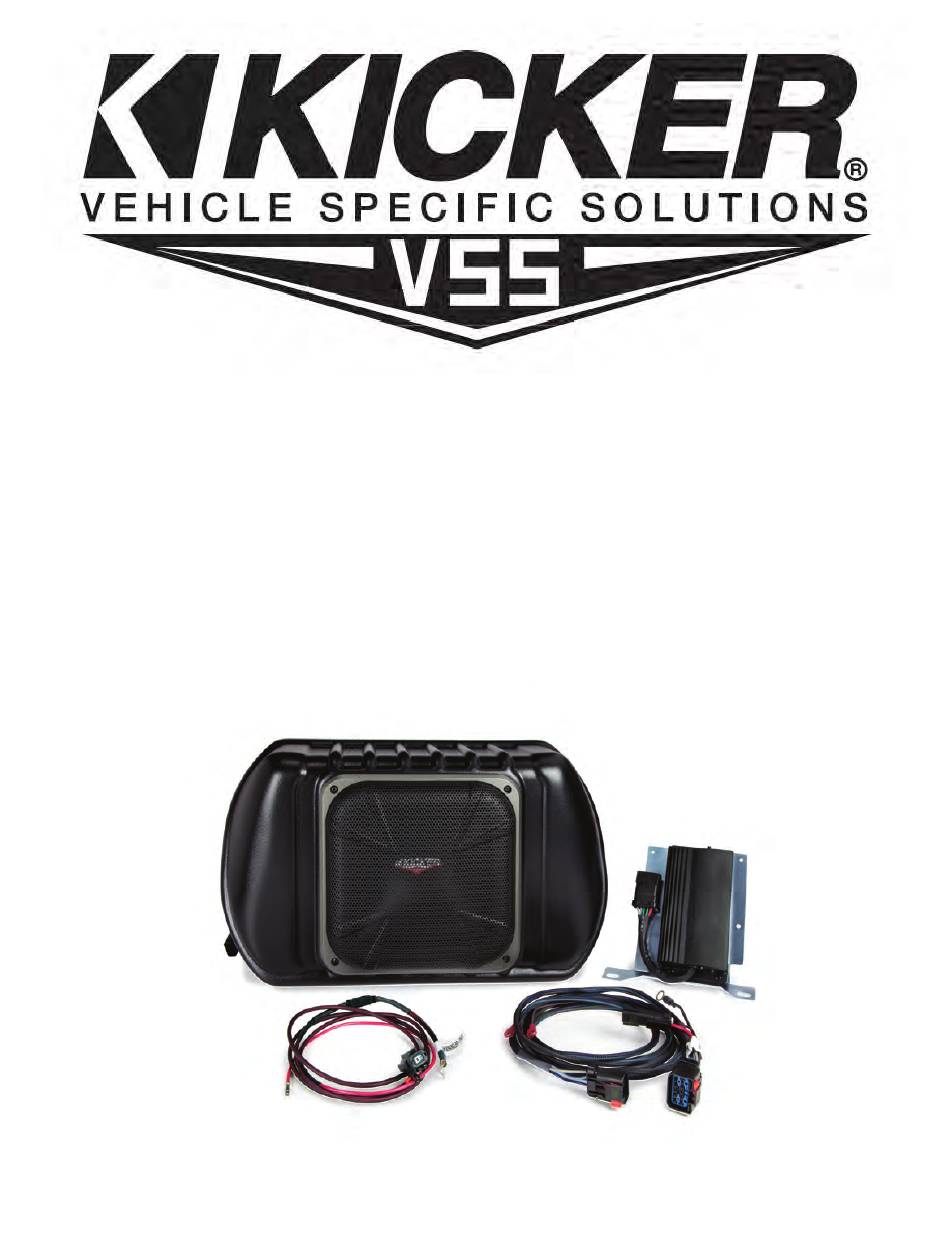

Designed for 2011 -2014 Jeep® Wrangler two door with base audio or premium audio
T-TAP x2
10MM BOLT
FUSE
WIRE TIES x6
©2012 Stillwater Designs
SWRA211-A3-20150225
SWRA211
SUBWOOFER ASSEMBLY
POWER HARNESS
200 WATT AMP
BRACKET ASSEMBLY
OVERLAY HARNESS
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWRA211 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kicker SWRA211

Summary of Contents for Kicker SWRA211

  • Page 1 SWRA211 Designed for 2011 -2014 Jeep® Wrangler two door with base audio or premium audio T-TAP x2 10MM BOLT FUSE WIRE TIES x6 SUBWOOFER ASSEMBLY 200 WATT AMP BRACKET ASSEMBLY POWER HARNESS OVERLAY HARNESS Page 1 of 8 ©2012 Stillwater Designs...
  • Page 2 Amp Installation 1. Disconnect the negative battery cable. 2. Gently pull out on the panel just below the steering column, rotate down and remove. Fig. 1 3. Remove the two 7mm screws securing the plastic panel below the steering column indicated by the arrow in Fig.
  • Page 3 Wire Harness Installation 9. Find the rubber grommet in the top driver’s side of the fire wall underneath the hood and remove it. Fig. 6 10. Using a razor knife make a small cut in the center of the grommet. Pass the end of the wire with the small terminal on the end through the grommet and pull the grommet up to the point where the plastic sheathing starts.
  • Page 4 20. Install one of the self stripping t-tap connectors on to each wire. Lay the wire in the open channel, fold the connector body over and squeeze with a pair of pliers until connector snaps shut. Fig. 10 21. Connect the subwoofer harness input wires to the t-tap connectors. The green wire (positive) of the harness connects to the t-tap connector on the gray wire with the yellow stripe in the vehicle.
  • Page 5 28. Run the wire harness along the floor under the rear seats to approximately the middle of the vehicle and pull the end of the harness under the seat to the cargo area. 29. Set the subwoofer in place and then connect the wire harness. 30.
  • Page 6 Troubleshooting the Kicker Integrated Systems If you experience a problem once the Subwoofer is installed use this guide to locate the trouble. The radio is working, but the Subwoofer is not working: • Check the battery voltage to make sure it is not discharged below 11 volts.
  • Page 7 Symptom Possible Cause Solution Fuse not installed in inline Install fuse(s) into fuse holder(s). Refer to fuse holder on subwoofer instructions for correct placement and/or amp harness Low battery voltage Recharge the battery Negative battery cable not Reconnect negative battery cable connected Power wire connector not Connect power wire to body harness.
  • Page 8 If you continue to experience problems after troubleshooting with this list, please contact KICKER Technical Support at (800) 256-0808 ext. 6009, or support@kicker.com. P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • (405) 624–8510 Page 8 of 8...
