Eclipse Security ECL-CVSP220IB User Manual page 11

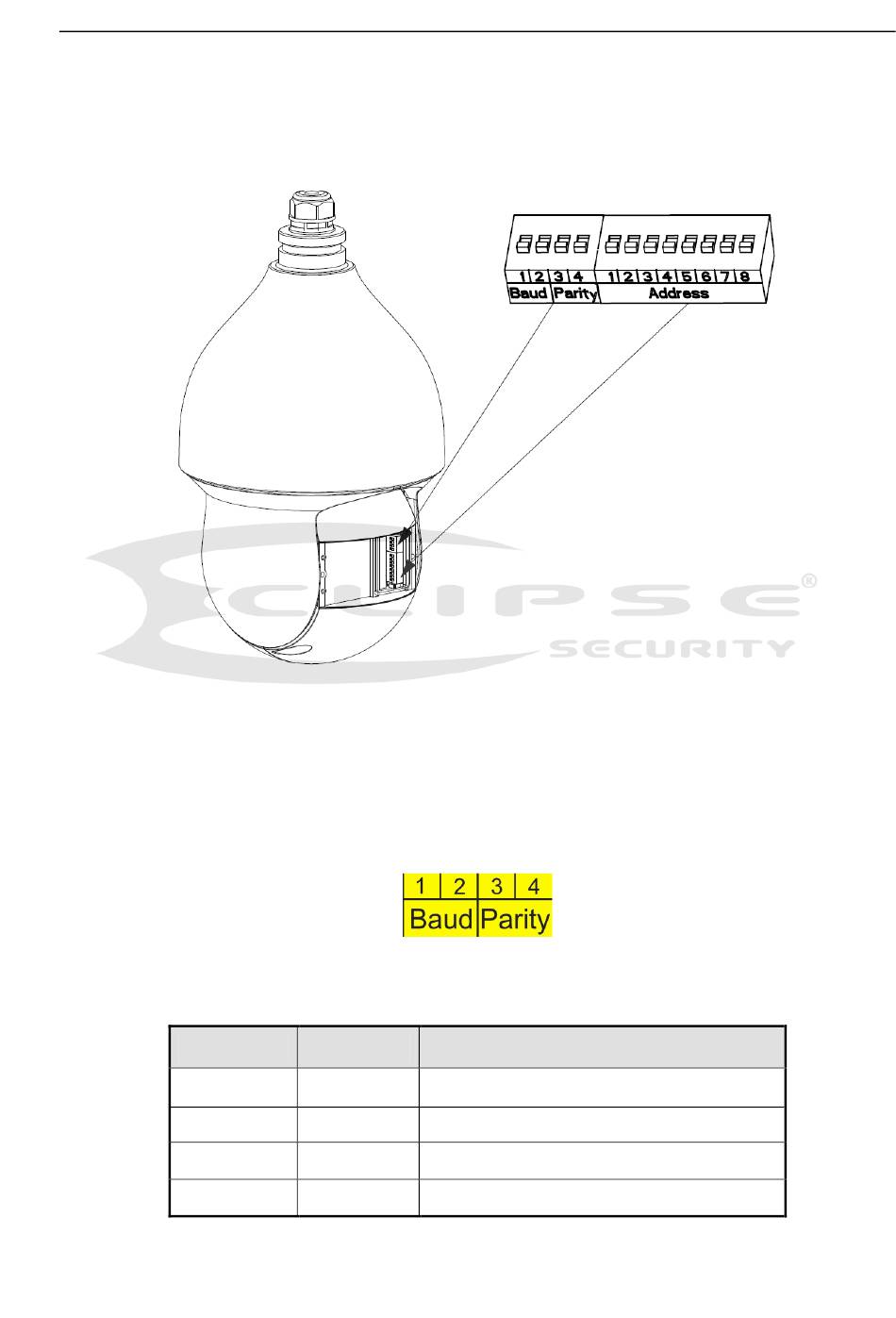

Open the dial switch cover board at the rear cover. There are two dial switch buttons on the PCB. See
Figure 2-2 .
You can follow the information listed below to set baud rate, parity address and etc.
After setup, you need to click on-off button or go to the OSD menu to select restart option to
reboot the device to activate new setup.
2.2.2 Baud Rate and Parity
Please note the IR speed dome can automatically recognize the industrial standard protocol,
PELCO-D. PELCO-P. Usually you do not need to set the protocol.
The interface is shown as in Figure 2-3. 1/2 is to set baud rate and 3/4 is to set parity.
Please refer to the baud rate sheet for detailed information.
1
OFF
ON
OFF
ON
Please refer to the parity sheet for detailed information.
Figure 2-2
Figure 2-3
2 Baud Rate
OFF 9600bps
OFF 4800bps
2400bps
ON
1200bps
ON
4
