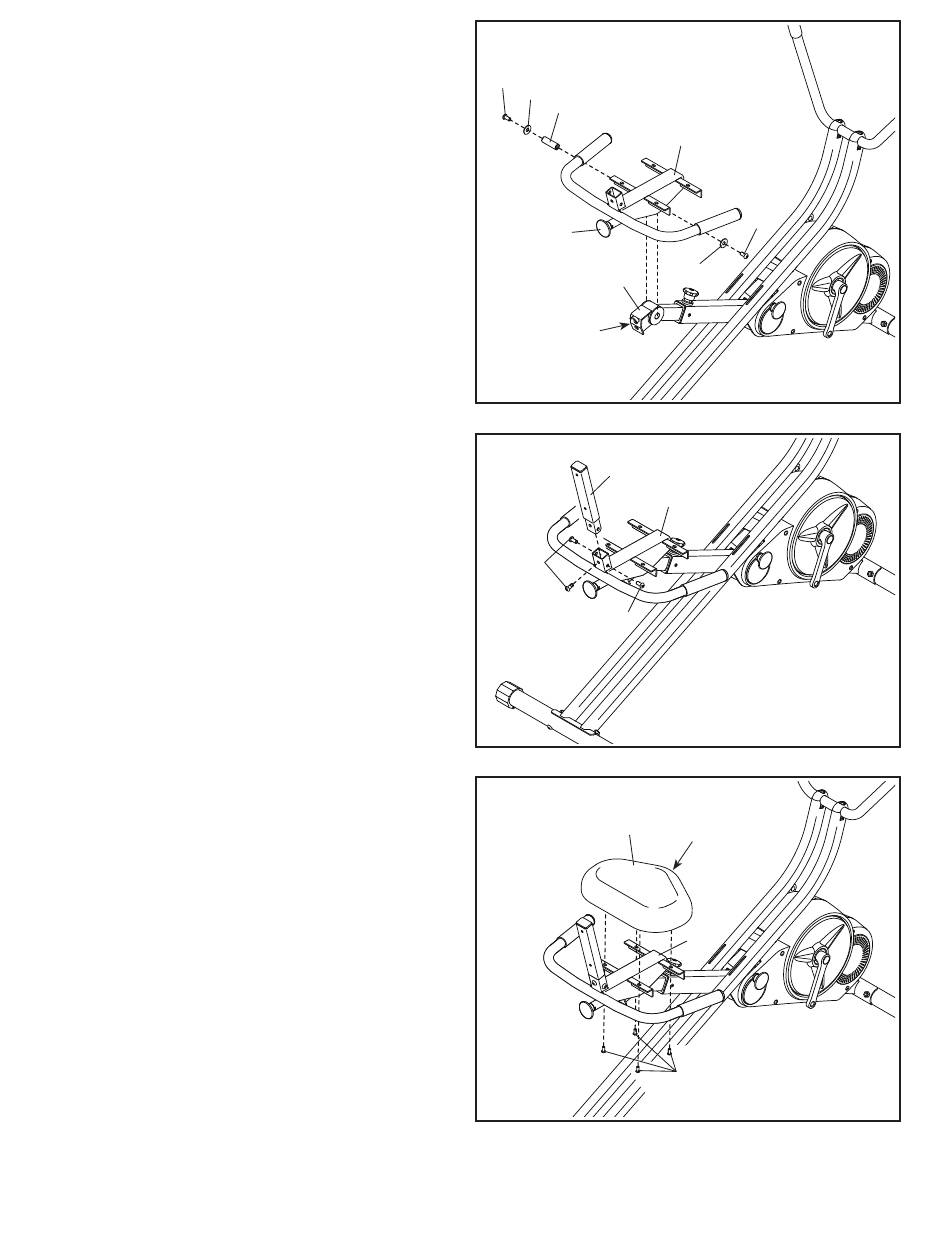

6. Orient the Seat Frame (8) near the Seat Post
(7) as shown. Pull the Pin Knob (20) outward,
slide the Seat Frame onto the Seat Post, and
then release the Pin Knob into one of the two
adjustment holes (B) in the Seat Post.
Next, insert the Seat Axle (57) through the Seat
Frame (8) and the Seat Post (7). Then, tighten
an M8 x 16mm Screw (70) with an M8 x 25mm
Washer (72) into each end of the Seat Axle at
the same time.
7. Attach the Seat Bracket (9) to the Seat Frame
(8) with three M8 x 16mm Screws (70); start all
the Screws, and then tighten them.
8. Orient the Seat (10) as shown; make sure that
the nose (C) of the Seat is in the location
shown.
Attach the Seat (10) to the Seat Frame (8) with
four M6 x 14mm Screws (78); start all the
Screws, and then tighten them.
