Summary of Contents for Pakedge RT-3100
- Page 1 RT-3100 High-throughput Gigabit AV Router with OvrC OvrC Enabled QUICK START GUIDE...

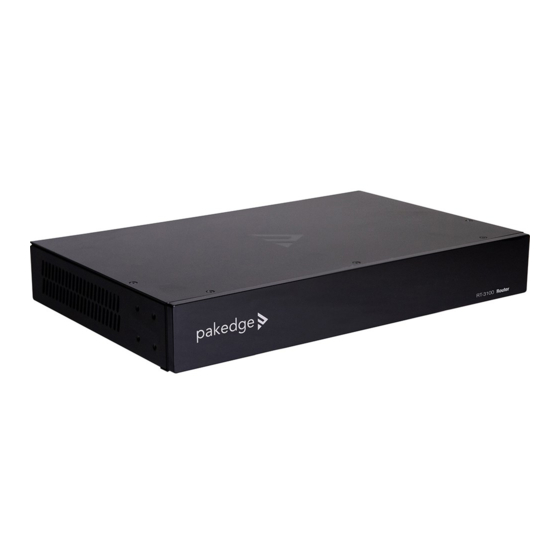

- Page 2 Introduction The Pakedge RT-3100 High-throughput Gigabit AV Router gives you incredibly fast speeds and unmatched ease of use for a mid-sized network, including a simple configuration page for fast setup. The router has common features like port forwarding, 1:1 NAT, and static routes, while also supporting advanced configuration of firewall and multicast forwarding rules.
- Page 3 Installing the router Tools required: • Phillips screwdriver (if using rack-mount brackets) • Computer with Ethernet interface and a web browser • Ethernet cable Installation 1 Open the box and remove the router. 2 If mounting the router in a standard 19" AV rack, attach the included rack-mount brackets to the sides of the router.
- Page 4 Logging in 1 Connect the router to power and toggle the power switch on the rear panel to the On position. The PWR LED will light up. 2 Connect a computer to the router’s LAN port using an Ethernet cable. Enter 192.168.1.1 into the address bar of your web browser.
- Page 5 The first-time configuration screen opens, which enables you to configure all basic router settings to get up and running quickly. 4 Change the settings, including the login credentials, then click Apply. 5 To see an overview of your router status, click the Overview tab.
- Page 6 Registering your device with OvrC OvrC gives you remote device management, real-time notifications, and intuitive customer management, right from your computer or mobile device. Setup is plug-and- play, with no port forwarding or DDNS address required. To add this device to your OvrC account: Mobile Access Point Apps...
- Page 7 Resetting the Router RESET Button A Simple Reboot: Press and release the RESET button to restart the router. With the router powered on, press and hold the RESET button B Factory Default: for at least ten seconds, then release it. This resets the router to factory default settings.
- Page 8 Technical Support For technical help: www.pakedge.com/portal support@pakedge.com (650) 385-8703 For non-technical inquires: customerservice@pakedge.com (888) 400-4072 (opt 3) snapav.com/warranty Find details of this product’s 3-Year Limited Warranty at or request a paper copy from Customer Service at (866) 424-4489. Find other legal resources, such as regulatory notices and patent information, at snapav.com/legal...
