Summary of Contents for Gossen MetraWatt METRISO 5024

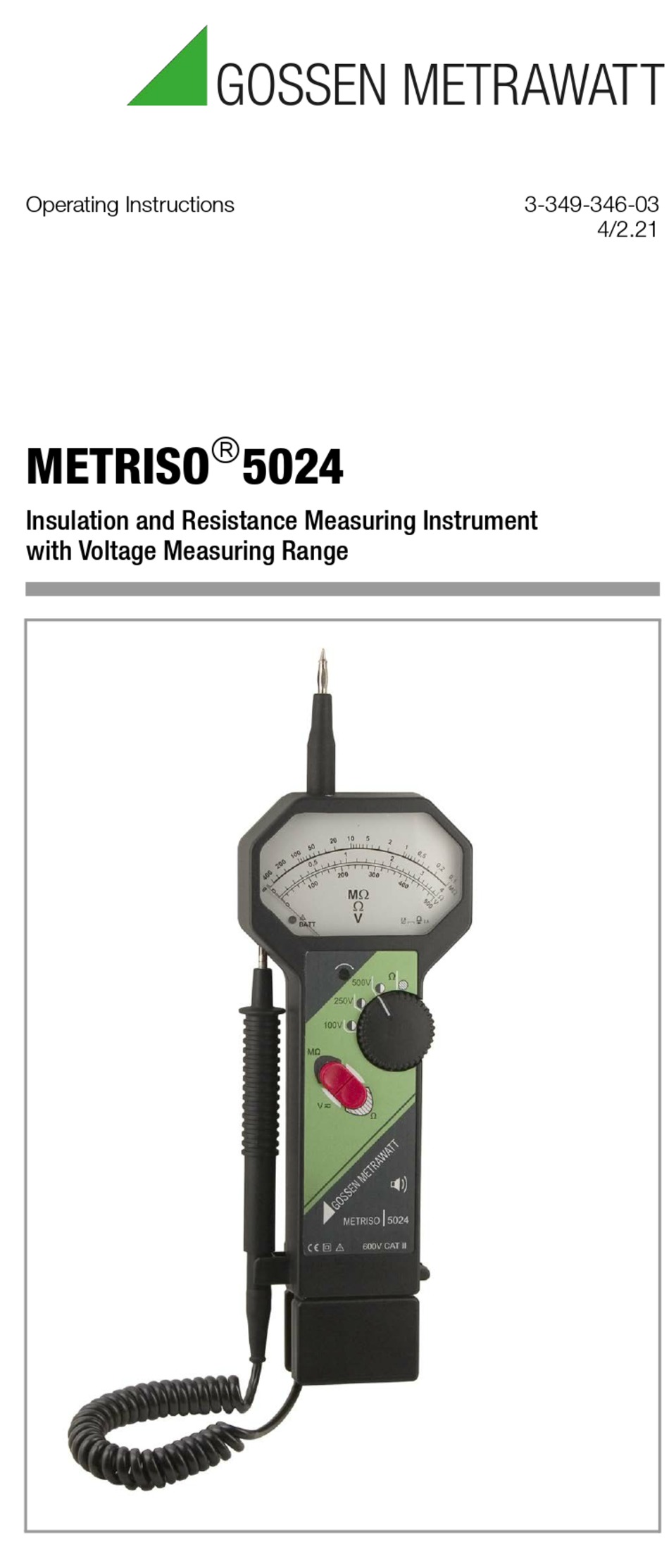

- Page 1 Operating Instructions 3-349-346-03 4/2.21 METRISO 5024 Insulation and Resistance Measuring Instrument with Voltage Measuring Range...
- Page 2 5 Carrying strap 6 Battery compartment 7 Detaining fork 8 Test probe on coil cord (negative pole) 9 Opening for securing the test probe 10 LED for indicating device and battery status (see chapter 4.2 and 4.3) Gossen Metrawatt GmbH...
-
Page 3: Table Of Contents
5.2.1 Details on Power Consumption and Operating Time ......10 Replacing the Fuse ................10 Recalibration ..................11 Device Return and Environmentally Compatible Disposal ..... 12 Characteristic Values ............12 Repair and Replacement Parts Service Calibration Center and Rental Instrument Service ...........14 Product Support ..............14 Gossen Metrawatt GmbH... -
Page 4: Safety Precautions

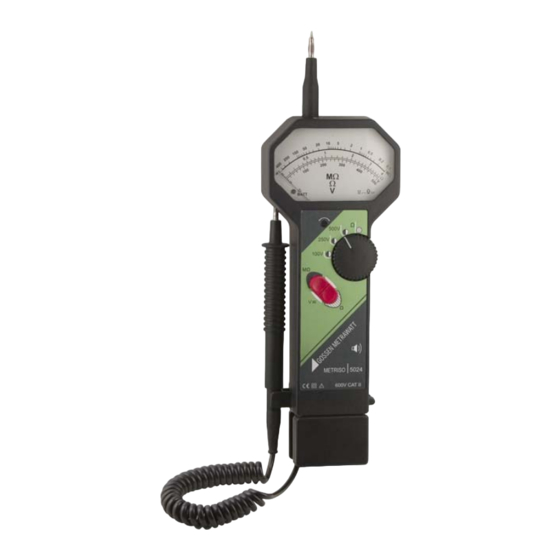

• After extraordinary stressing due to transport Device Description Using Device The METRISO 5024 measuring instrument is a battery operated combination device with direct display. It is suitable for the following measurements: • AC and DC voltages without indication of polarity within a range of 0 to 500 V. -
Page 5: Preparation For Device Operation
Power Supply – Battery Replacement The METRISO 5024 is operated exclusively with batteries for safety reasons. Batteries are inserted or replaced as follows: First disconnect the measurement cables from the device under ➭... -
Page 6: Checking Device Functions
Checking Device Functions The METRISO 5024 functions as a voltmeter when the toggle switch (4) is in the neutral position: The voltmeter function can be checked by applying a voltage to ➭ both test probes (1 and 8), e.g. line voltage from a mains outlet. -
Page 7: Operation
(1 and 8). Read the measured value from the voltage scale within a range of 0 to 500 V. + (–) – (+) End the measurement by removing the test probes from the ➭ device under test. Gossen Metrawatt GmbH... -
Page 8: Insulation Resistance Measurement (Vde 0413, Part 2 / En 61557, Part 2)
(1: positive pole and 8: negative pole). When the toggle switch is in the neutral position, the ➭ METRISO 5024 functions as a voltmeter for testing for the absence of voltage. Immediately after contacting the device under test, the user can determine whether or not it is voltage-free. -
Page 9: Low-Resistance Measurement (Vde 0413, Part 4 / En 61557, Part 4)
4 pointer oscillates green blinks periodic sequence of signals measurement not possible: – battery voltage too low pointer oscillates no signal – rotary or toggle switch pointer oscillates green blinks no signal not adjusted correctly Gossen Metrawatt GmbH... -
Page 10: Maintenance - Recalibration
Adhere to the prescribed sequence when replacing the fuse: Remove the test probes from the device under test. ➭ Loosen the 3 screws in the housing base. ➭ Gossen Metrawatt GmbH... -
Page 11: Recalibration
Verification of specifications or adjustment services are not part of the calibration. For products from our factory, however, any necessary adjustment is frequently performed and the observance of the relevant specification is confirmed. Gossen Metrawatt GmbH... -
Page 12: Device Return And Environmentally Compatible Disposal
Voltage Measurement, DC / AC (40 200 Hz) Measuring Range Intrinsic Overload Internal Resistance Uncertainty 0 500 V 2.5% * 600 V AC 450 k * Measuring error under reference conditions relative to scale length (l = 73.3 mm) Gossen Metrawatt GmbH... - Page 13 Protection against foreign IP XY Protection against the digit X) object entry digit Y) penetration of water 1.0 mm dia not protected Dimensions 98 mm x 310 mm x 40 mm Weight approx. 0.5 kg with batteries Gossen Metrawatt GmbH...
-
Page 14: Repair And Replacement Parts Service Calibration Center
Phone +49 911 8602-0 +49 911 8602-709 E-Mail support@gossenmetrawatt.com © Gossen Metrawatt GmbH Edited in Germany Subject to change without notice / Errors excepted A PDF version is available on the Internet All trademarks, registered trademarks, logos, product names, and company names are the property of their respective owners.
