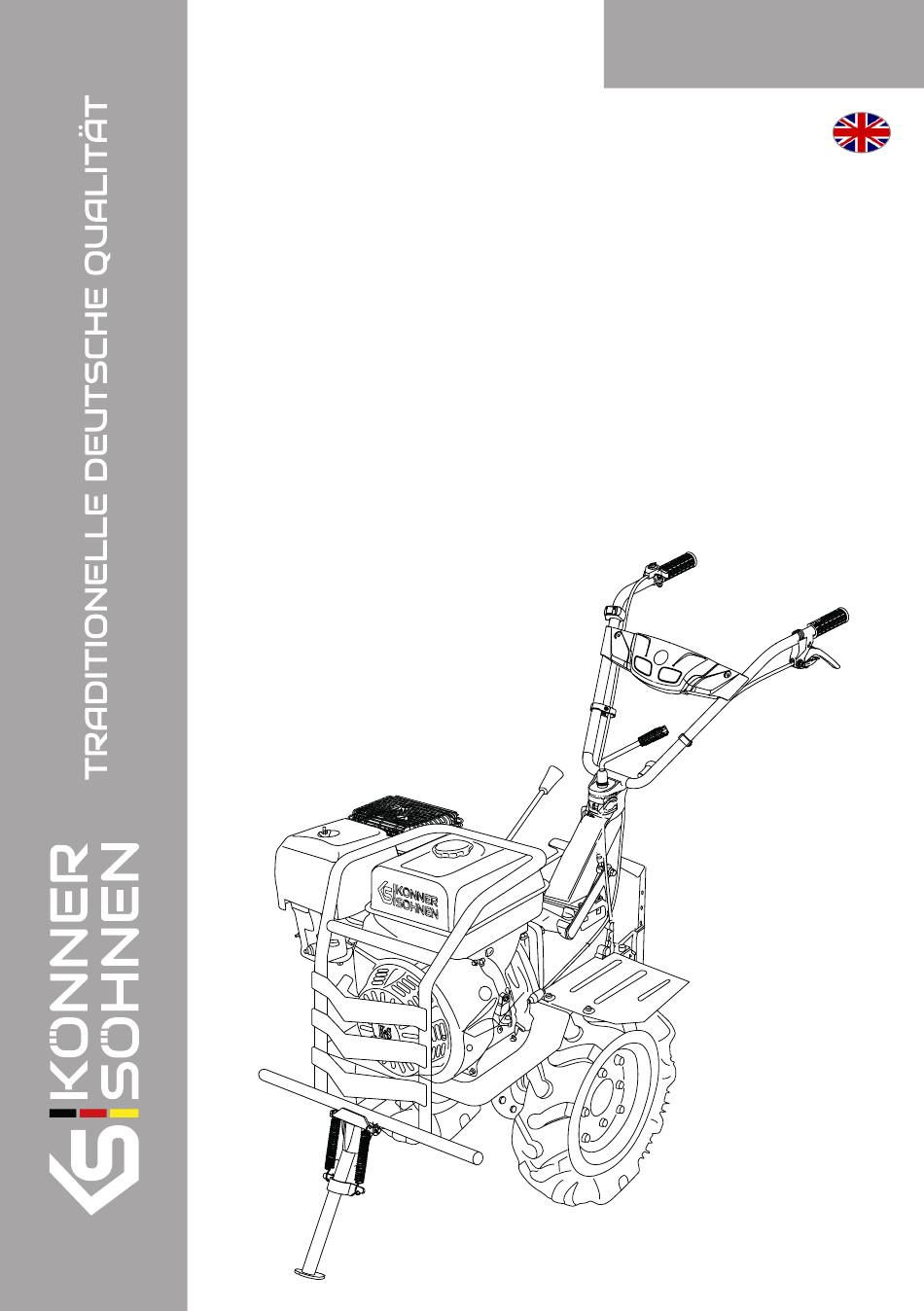

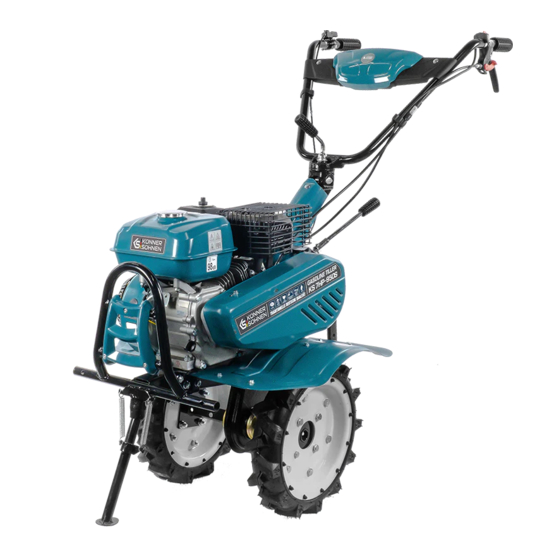

- Page 1 Manual Please, read this manual before use! GASOLINE TILLERS KS 7HP-850A KS 7HP-950A KS 7HP-950S KS 7HP-1000G KS 7HP-1050G KS 9HP-1350G-3 KS 600RTG...
- Page 2 Safety symbols and description of inscriptions can be found in the full web version of the manual Safety symbols and description of inscriptions can be found in the full web version of the manual. . OVERVIEW AND COMPONENTS KS 7HP-850A – see picture 1 and picture 2 in the Appendix. Fig. 1 1. Wing Fig.
- Page 3 KS 7HP-1050G, KS 9HP-1350G-3 – see picture 5 and picture 4 in the Appendix. Fig. 5 1. Parking leg bracket 8. Tool case 2. Engine 9. Operator panel 3. Gear lever 10. Operator panel adjustment lever 4. On / off switch 11.
-
Page 4: Specifications
The operating conditions of the device, storage and transportation can be found in the full web version of the manual. The operating conditions of the device, storage and transportation can be found in the full web version of the manual. SPECIFICATIONS KS 7HP-850A KS 7HP-950A KS 7HP-950S... - Page 5 12. Packing – 1 pc. KS 7HP-1050G, KS 9HP-1350G-3) – 1 pc. 13. Reflective stickers for front grille Transport wheel (for models (for model KS 9HP-1350G-3) – 6 pcs. KS 7HP-850A, KS 7HP-950A, KS 7HP-1000G) – 1 pc. konner-sohnen.com konner-sohnen.com...
- Page 6 The number of blades (24 pcs, 32 pcs, 40 pcs) varies with the tiller model. 1. For model KS 7HP-850A, cutters are assembled in three sections with four blades each. 2. For model KS 9HP-1350G-3, cutters are assembled in five sections with four blades each.
-
Page 7: Transmission Cover
KS 600RTG cutters are assembled in three sections with two blades each. KS 7HP-850A, KS 7HP-1000G KS 7HP-850A, KS 7HP-1000G – see pictures 14-17 in the Appendix. Series No. = pcs 1 = 24... -
Page 8: Support Leg
1. Fill the crankcase with engine oil SAE 10W-30 or SAE 10W-40. 2. Fill the transmission case (except model KS 7HP-850A) with SAE 75W-90, SAE 80W-90 or SAE 85W-90 grade oil to the level specified for a given model. Be sure to check the oil level with... -
Page 9: Fuel And Engine Oil
FUEL AND ENGINE OIL FUEL AND ENGINE OIL Only unleaded gasoline is recommended for the tiller. Gasoline should be fresh. Use a funnel (not supplied) for best device filling. The tiller also can not run without oil, so fill it before the first launch. Set the device on a flat horizontal surface, open the tank with oil and pour oil to the minimum mark and add fresh oil to the mark between MIN and MAX. -
Page 10: Reverse Movement
REVERSE MOVEMENT Cultivator models are equipped with a reverse function for better maneuvering (except for model KS 7HP-850A). In order for the cutters or wheels to start reverse rotation, set the gearshift lever to the “-1” position (R) and then press and hold down the clutch lever. - Page 11 MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES: MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES: - Damage and losses resulting from the use of non-original spare parts. - Corrosive damage and other consequences of invalid storage. - Damage caused by the maintenance works that were carried out by unauthorized personnel. TILLER CLEANING TILLER CLEANING Thorough cleaning and care of the device extends its life and protects it from damage.
-
Page 12: Follow These Steps
FOLLOW THESE STEPS FOLLOW THESE STEPS cover with probe TO ADD OIL: TO ADD OIL: 1. Make sure that the tiller is placed on a flat surface. 2. Remove the probe tap on the engine. 3. Pour the oil into the carter. drain oil tap 4. -
Page 13: Terms And Conditions
TECHNICAL MAINTENANCE WORKS Unit Action Level check Replacement Level check Engine oil Replacement Сheck Air filter Cleaning Replacement Cleaning Spark plug Replacement Fuel level check Fuel tank Cleaning Follow the maintenance instructions listed in the instruction manual yourself. Works that are not foreseen for self-fulfillment must be performed at an authorized Könner &... -
Page 14: Warranty Exclusions
The warranty card should be kept throughout the warranty period. In case of warranty card loss, a second one will not be provided. The customer must provide the warranty card and buyer`s check during request for repair or exchange. Otherwise, the warranty service will not be provided. The warranty card, attached to the product during sale, should be correctly and fully completed by the retailer and customer, signed and stamped. - Page 15 ANWENDUNG / ANNEX / L’ANNEXE / ATAȘAMENT / ПРИЛОЖЕНИЕ / ANEKS / ДОДАТОК KS 7HP-850A | 14 konner-sohnen.com...
- Page 16 KS 7HP-950A, KS 7HP-950S | 15 konner-sohnen.com...
- Page 17 KS 7HP-1050G, KS 9HP-1350G-3 KS 7HP-1050G | 16 konner-sohnen.com...
- Page 18 KS 7HP-1000G | 17 konner-sohnen.com...
- Page 19 KS 600RTG | 18 konner-sohnen.com...
- Page 20 KS 7HP-850A KS 7HP-950A, KS 7HP-950S KS 7HP-1050G, KS 9HP-1350G-3 | 19 konner-sohnen.com...
- Page 21 KS 7HP-1050G, KS 9HP-1350G-3 KS 7HP-850A, KS 7HP-950A, KS 7HP-1000G | 20 konner-sohnen.com...
- Page 22 KS 7HP-850A | 21 konner-sohnen.com...
- Page 23 KS 7HP-950A | 22 konner-sohnen.com...
- Page 24 KS 7HP-1050G, KS 9HP-1350G-3 | 23 konner-sohnen.com...
- Page 25 KS 7HP-950S | 24 konner-sohnen.com...
- Page 26 KS 7HP-850A KS 7HP-950A KS 7HP-950S KS 7HP-1050G KS 9HP-1350G-3 | 25 konner-sohnen.com...
- Page 27 KS 7HP-950S, KS 7HP-1050G, KS 9HP-1350G-3 KS 7HP-850A KS 7HP-950A KS 7HP-950S | 26 konner-sohnen.com...
- Page 28 KS 7HP-850A KS 7HP-950A KS 7HP-950S KS 7HP-1050G, KS 9HP-1350G-3 KS 7HP-950A | 27 konner-sohnen.com...
- Page 29 KS 7HP-950S KS 7HP-1050G, KS 9HP-1350G-3 6 ~ 8 KS 7HP-950S KS 9HP-1350G-3 | 28 konner-sohnen.com...
- Page 31 CONTACTS Deutschland: Deutschland: DIMAX International GmbH Flinger Broich 203 -FortunaPark- 40235 Düsseldorf, Deutschland koenner-soehnen.com Ihre Bestellungen Ihre Bestellungen orders@dimaxgroup.de Kundendienst, technische Fragen Kundendienst, technische Fragen und Unterstützung und Unterstützung support@dimaxgroup.de Garantie, Reparatur und Service Garantie, Reparatur und Service service@dimaxgroup.de Sonstiges Sonstiges info@dimaxgroup.de Polska:...
