Könner & Söhnen KS 7HP-850A Manual

Gasoline tillers
Hide thumbs Also See for KS 7HP-850A:

Advertisement

Table of Contents

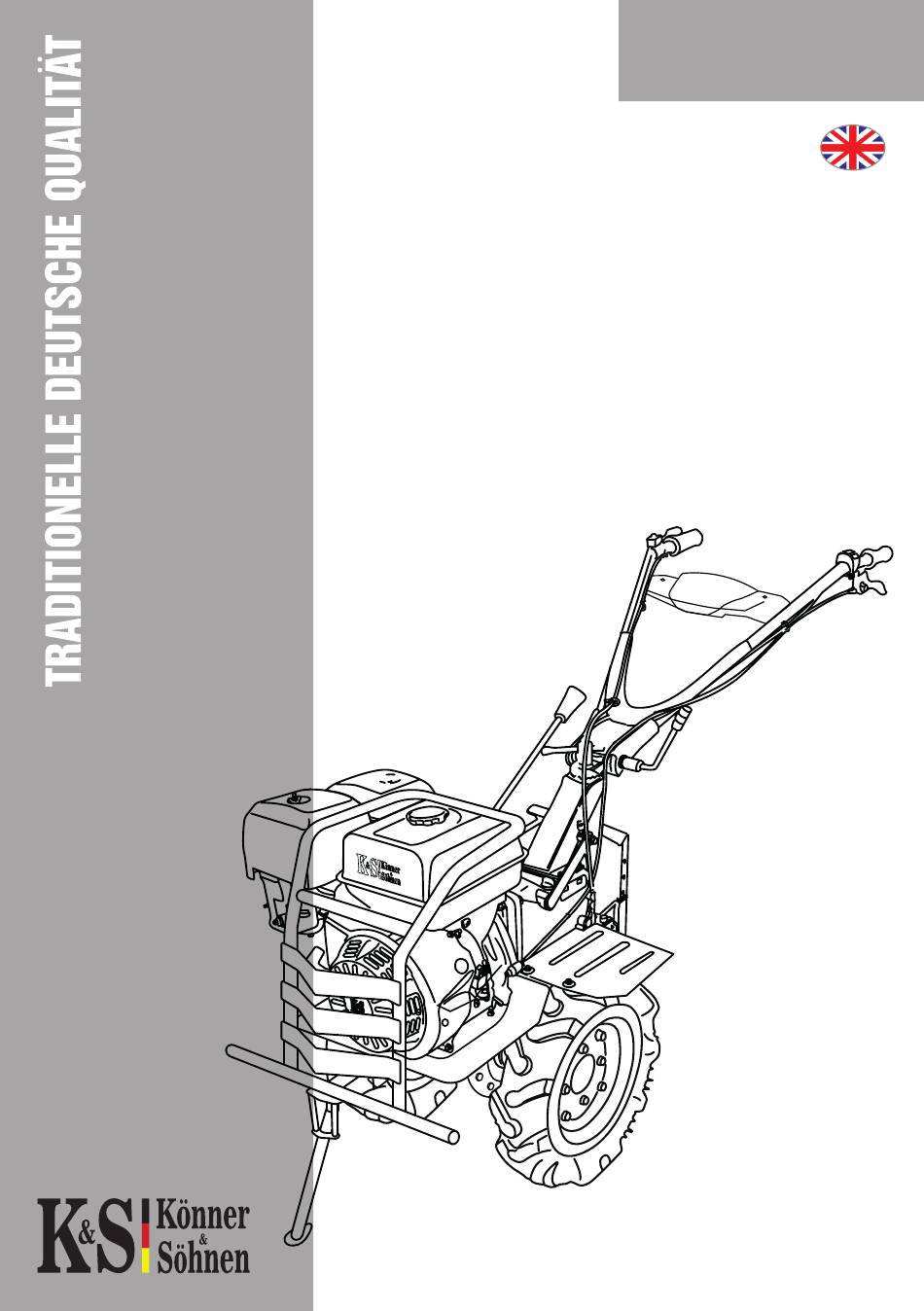

Please, read this manual
before use!
GASOLINE TILLERS
KS 7HP-850A
KS 7HP-950A
KS 7HP-950S
KS 7HP-1050G
KS 9HP-1350G-3
Manual
ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS 7HP-850A and is the answer not in the manual?

Questions and answers

Related Manuals for Könner & Söhnen KS 7HP-850A

Summary of Contents for Könner & Söhnen KS 7HP-850A

  • Page 1 Manual Please, read this manual before use! GASOLINE TILLERS KS 7HP-850A KS 7HP-950A KS 7HP-950S KS 7HP-1050G KS 9HP-1350G-3...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Preface 2. Safety symbols description 3. Overview and components of the tiller 4. Specifications 5. Safety technique 9-11 6. Composition 7. Collecting the tiller 12-26 8. Operation instruction 27-29 9. Maintenance 30-33 10. Troubleshooting 11. Transportation 12.

  • Page 3: Preface

    1. PREFACE We are grateful to you for your purchase of ТМ Könner & Söhnen series gasoline tiller. This manual contains safe working recommendations, operation and adjustment description of these tillers and maintenance instructions. All data, specified in this operation manual is the most up to date for the moment of its publishing.

  • Page 4: Safety Symbols Description

    2. SAFETY SYMBOLS DESCRIPTION Engine power Rated power of tiller Engine model KS 240 Do not touch! Forward speed The generator damper becomes Tilling width 80 cm hot during operation Max. tilling depth 31cm Weight 52 cm Year of issue 2020 Speed regulation mark «Könner &...

  • Page 5: Overview And Components Of The Tiller

    3.OVERVIEW AND COMPONENTS OF THE TILLER KS 7HP-850A Fig. 1 1. Wing 7. Gear housing 2. Powerful engine 8. Transport wheels 3. Panel Operator 9. Coulter 4. Engine speed control 10. Blade (24 pcs) 5. Clutch handle 6. On/off switch 1.Silencer with a protective grill...
  • Page 6 OVERVIEW AND COMPONENTS OF TILLERS KS 7HP-950A, KS 7HP-950S Fig. 2 1. Transport wheel 9. Tool case for the model KS 7HP-950A (for the model KS 7HP-950S) (support leg for the model 10. Gear lever KS 7HP-950S) 11. Coulter 2. Engine 12.
  • Page 7 OVERVIEW AND COMPONENTS OF THE TILLERS KS 7HP-1050G, KS 9HP-1350G-3 Fig. 3 KS 7HP-1050G 1. Parking leg bracket 8. Tool case 2. Engine 9. Operator panel 10. Operator panel adjustment lever 3. Gear lever 4. On / off switch 11. Coulter 5.

  • Page 8: Specifications

    4. SPECIFICATIONS OF GASOLINE TILLERS WITH BELT DRIVE Tiller KS 7HP-850A KS 7HP-950A KS 7HP-950S Engine model KS 240 KS 240 KS 240 Engine power, HP Nominal power, kW Engine capacity, сm Engine type Gasoline Tilling width, cm ≤ 80 ≤...
  • Page 9 SPECIFICATIONS OF GASOLINE TILLERS WITH DIRECT DRIVE AMD GEARBOX Tiller KS 7HP-1050G KS 9HP-1350G-3 Engine model KS 240 KS 290 Engine power, max. (HP) Nominal power, kW Engine capacity, сm Engine type Gasoline Tilling width, cm ≤ 108 ≤ 134 Tilling depth, cm ≤...

  • Page 10: Safety Technique

    5. SAFETY TECHNIQUE Before operating the tiller, please read carefully the operating instructions. Do not allow other people and children to use the device. Do not use the appliance in close proximity to the work area of adults, children and animals - the responsibility for accidents and property is borne by the tiller user.
  • Page 11 OPERATION OF THE DEVICE AT THE GOOD LOCATION 1. Keep track of the correct location of the appliance on the slopes. The angle of inclination of 10% corresponds to 10 cm, a rise of 100 cm to the horizontal plane. Do not apply soil plowing on steeper slopes, in order not to lose control of the device.

  • Page 12: Composition

    KS 7HP-1050G, KS 9HP-1350G-3) 1 pc. Transport wheel (for model KS 7HP-850A, KS 7HP-950A) 1 pc. 5. Gear housing (for model KS 7HP-850A, KS 7HP-950A, KS 7HP-950S) 1 pc. 6. Console 1 pc. 7. Side protectors 2 pc. 8. Control panel 1 pc.

  • Page 13: Collecting The Tiller

    7. COLLECTING THE TILLER COULTER (for models: KS 7HP-850A, KS 7HP-950A, KS 7HP-950S) Fig. 4 To adjust the depth of the 1. Vertical finger plow in the tiller there is a 2. Bolt coulter. It is regulated by moving it up and down 3.
  • Page 14 ＋...
  • Page 15 MOUNTING THE RUBBER WHEELS Attach the wheels to the tiller by inserting the fasteners into the corresponding axle holes. Fig. 5 For model KS 7HP-1050G, KS 9HP-1350G-3...
  • Page 16 For cultivator models equipped with a front caster, attach the caster to the cultivator frame using bolts (Fig. 6). For the KS 7HP-850A cultivator model, connect the two pins with a spring. To move, lower the wheel down and fix it with the mounting pin. Raise the steering wheel so that the tiller is easy to roll on the ground.
  • Page 17 When attaching the blades, always pay attention to the position of the cutting edge of the blades. It should face the direction of travel of the tiller. Cutters are secured with bolts. The disk is connected to the main structure using a bolt.
  • Page 18 For model KS 7HP-950A Series No. / pcs 1 = 24 7 = 2 2 = 24 8 = 2 3 = 24 9 = 2 4 = 4 10 =16 5 = 4 11 =16 6 = 2...
  • Page 19 For model KS 7HP-1050G, KS 9HP-1350G-3...
  • Page 20 For model KS 7HP-950S Series No. / pcs 1 = 24 2 = 24 3 = 24 4 = 4 5 = 4 6 = 2 7 = 2 8 = 2 9 = 2 10 = 16 11 = 16 Be sure to read the full version of the manual before getting started!
  • Page 21 OPERETOR’S PANEL For model KS 7HP-850A, first attach the operator’s panel to the steering column using the fixing bolts, then attach the engine speed control, as shown in Fig. 8а Fig. 8а For model KS 7HP-950A Fig. 8b...
  • Page 22 For model KS 7HP-950S For the KS 7HP-950S, attach the operator’s panel to the steering column using the fixing bolt as shown in Fig. 8c Fig. 8c Fig. 9 Panel lock operator (lever) For KS 7HP-950S, KS 7HP-1050G, and KS 9HP-1350G-3, first assemble the steering column and then connect the operator’s panel as shown in Fig.
  • Page 23 For model KS 7HP-1050G, KS 9HP-1350G-3 Fig. 10...
  • Page 24 TRANSMISSION COVER Attach the transmission cover to the tiller by inserting the fasteners into the corresponding holes.. Fig. 11 Model KS 7HP-850A Fig. 11а Model KS 7HP-950A Fig. 11b Model KS 7HP-950S Fig. 11c...
  • Page 25 FENDERS Attach the fenders to the tiller frame by inserting the fasteners into the corresponding holes. Fig. 12 Model KS 7HP-850A Fig. 12a Fig. 12b Model KS 7HP-950A Model KS 7HP-950S Fig. 12c...
  • Page 26 For model KS 7HP-1050G, KS 9HP-1350G-3 Fig. 13...
  • Page 27 SUPPORT LEG Attach the tiller’s support leg to the bracket by inserting the fasteners into the corresponding holes. Fig. 14 Model KS 7HP-950A Fig. 14а Model KS 7HP-950S Fig. 14b For model KS 7HP-1050G, KS 9HP-1350G-3 Fig. 15...

  • Page 28: Operation Instruction

    8. OPERATION INSTRUCTION ATTENTION - DANGEROUS! The tiller is supplied without oil and fuel. Before first start-up, be sure to fill in the oil and refuel the device! Use a funnel to refuel. Fig. 16 Fuel tank Oil filler cap/ oil dipstick COMMISSIONING During the commissioning:...
  • Page 29 FUEL AND ENGINE OIL The tiller needs normal unleaded fuel with 92 octane for proper work. Gasoline should be fresh. Use a funnel (not supplied) for best device filling. The tiller also can not run without oil, so fill it before the first launch. Set the device on a flat horizontal surface, open the tank with oil and pour oil to the minimum mark and add fresh oil to the mark between MIN and MAX.
  • Page 30 6 ~ 8 Cultivator models are equipped with a reverse function for better maneuvering (except for model KS 7HP-850A). In order for the cutters or wheels to start reverse rotation, set the gearshift lever to the “-1” position (R) and then press and hold down the clutch lever.

  • Page 31: Maintenance

    9. MAINTENANCE In order to prevent unintentional inclusion of the engine, disconnect the spark plug of the engine when storaging device, transportation and all the works on cleaning and maintenance (such work is permitted only with cooled engine). The use, storage and maintenance of Könner & Söhnen tillers must be made according to this manual.
  • Page 32 Fig. 25 Tension roller 3. Remove four engine mounting bolts for work on regulation. Move engine forward or backward the required belt tension and make sure that the external surfaces of driving and driven pulleys are in the same plane. CHANGING AND ADDING FUEL TO THE ENGINE Follow the maintenance schedule and regularly check the oil level in the engine.
  • Page 33 Fig. 27 Cover with probe Drain oil tap Oil level ATTENTION - DANGEROUS! Oil pollutes soil and groundwater. Do not allow oil to leak out of the crankcase. Drain used oil into a sealed container. Return used oil to your local used oil collection point. SPARK PLUG MAINTENANCE Spark plug is an important part which provides correct and long work of the engine.
  • Page 34 INTERNAL COMBUSTION ENGINE For the most long-term use of the engine it is important to watch the condition of an oil and air filter, oil level. Cooling fins should always be in a clean condition - this provides the best cooling for the engine. Action Level check Replacement...

  • Page 35: Troubleshooting

    10. TROUBLESHOOTING Malfiunktion Possible trouble Troubleshooting Engine circuit breakeris Bring the engine circuit breaker to in the OFF position ON position There is no fuel in the tank Add fuel,clean the fuel line Always use fresh fuel of Clogged fuel line branded varieties, good unleaded gasoline Pool, old or contaminated fuel...

  • Page 36: Transportation

    11. TRANSPORTATION Before moving or transporting the tiller, make sure the ignition switch ON / OFF valve and fuel are in the «OFF» (OFF). Set the tiller horizontally to avoid fuel spillage. Steam of gasoline or spilled gasoline can cause fire or explosion! For the convenience of transporting the tiller, use the packaging in which it is sold.

  • Page 37: Warranty Service Terms

    14. WARRANTY SERVICE TERMS TERMS AND CONDITIONS: The international manufacturer warranty is 1 year. The warranty period starts from the date of purchase. In cases when warranty period is longer than 1 year according to local legislation please contact your local dealer. The Seller which sells the product is responsible for granting the warranty.
  • Page 39 CONTACTS Deutschland: DIMAX International GmbH Deutschland, Hauptstr. 134, 51143 Köln, www.ks-power.de info@dimaxgroup.de Polska: DIMAX International Poland Sp.z o.o. Polen, Warczawska, 306B 05-082 Stare Babice, www.ks-power.pl info.pl@dimaxgroup.de Україна: ТОВ «Техно Трейд КС», вул. Електротехнічна 47, 02222, м. Київ, Україна www.ks-power.com.ua sales@ks-power.com.ua Россия: ТД...

This manual is also suitable for:

Ks 7hp-950aKs 7hp-950sKs 7hp-1050gKs 9hp-1350g-3
