Könner & Söhnen KS 7HP-850A Instructions Manual

Gasoline tillers
Hide thumbs Also See for KS 7HP-850A:
Table of Contents

Advertisement

Quick Links

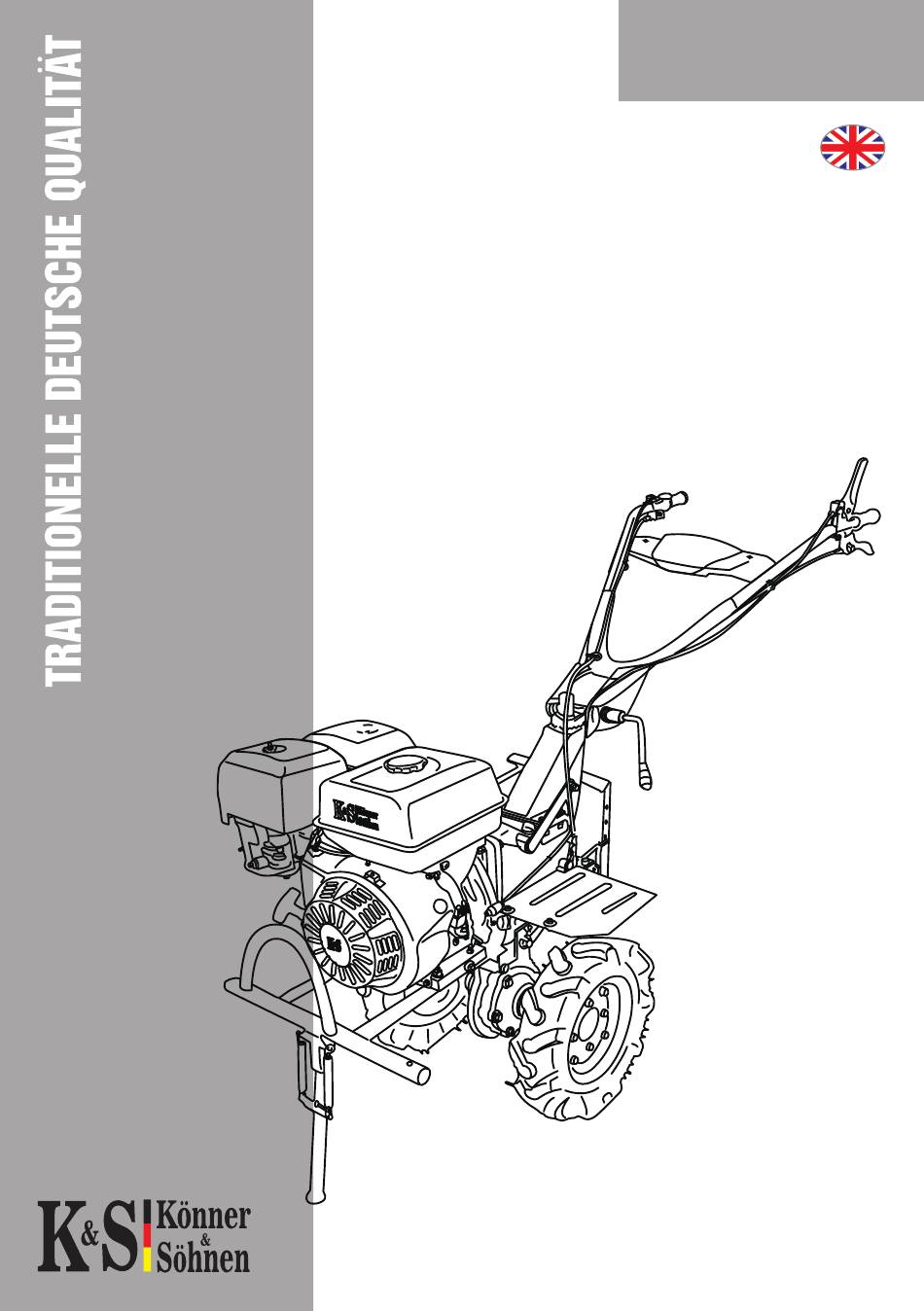

Please, read this manual
before use!
GASOLINE TILLERS
KS 7HP-850A
KS 7HP-950A
KS 7HP-950S
KS 7HP-1050G
KS 9HP-1350G-3
Instruction
ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS 7HP-850A and is the answer not in the manual?

Questions and answers

Related Manuals for Könner & Söhnen KS 7HP-850A

Summary of Contents for Könner & Söhnen KS 7HP-850A

  • Page 1 Instruction Please, read this manual before use! GASOLINE TILLERS KS 7HP-850A KS 7HP-950A KS 7HP-950S KS 7HP-1050G KS 9HP-1350G-3...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction 2. Tiller overview 3. Safety symbols description 4. Overview and components of the tiller 5. Specifications 6. Safety technique 7. Composition 8. Collecting the cultivator 12-17 9. Operation instruction 18-20 10. Maintenance 21-24 11. Troubleshooting 12.

  • Page 3: Introduction

    KS 7HP-1350G-3 coming with pneumatic wheels that facilitate transportation of the device; - Models KS 7HP-850A and KS 7HP-950A come with casters; - Package list includes a wheel, which simplifies device and its cargo transportation . You can buy a wide range of hinged equipment to your tiller that...

  • Page 4: Safety Symbols Description

    3. SAFETY SYMBOLS DESCRIPTION Engine power Rated power of tiller Do not touch! The generator Engine model damper becomes Forward speed hot during operation. Tilling width Max. tilling depth Weight Speed regulation mark Year of issue (The appearance may vary depending on the rotary cultivator model ) MAX- MIN a.

  • Page 5: Overview And Components Of The Tiller

    4.OVERVIEW AND COMPONENTS OF THE TILLER KS 7HP-850A Fig. 1 1.Wing 6. Operator Panel Lock 2.Powerful engine 7. Gear housing 3.Panel Operator 8. Transport wheels 4.Engine speed control 9. Blade (24 pcs) 5.Clutch handle 1.Silencer with a protective grille 2.Air filter 3.Fuel tank...
  • Page 6 OVERVIEW AND COMPONENTS OF TILLERS KS 7HP-950A, KS 7HP-950S Fig. 2 1.Transport wheel for the model 8. Clutch handle KS 7HP-950A 9.Tool case (for the model (support leg for the model KS 7HP-950S) KS 7HP-950S) 10. Gear lever 2. Engine 11.
  • Page 7 OVERVIEW AND COMPONENTS OF THE TILLER KS 7HP-1050G Fig. 3 1. Transport handle 10. Operator panel 2. Engine 11. Operator panel adjustment lever 3. Gear lever 12. Reinforced share 4. Steering column 13. Wings 5. On / off switch 14. Pneumatic wheels 6.
  • Page 8 GENERAL APPEARANCE OF THE TILLER KS 9HP-1350G-3 Fig.4 1. Transport handle 9. Control panel 2. Engine 10. Operator panel adjustment lever 3. Gear lever 11. Reinforced share 4. Steering column 12. Wings 5. On / off switch 13. Blads 6. Adjusting the engine speed 14.

  • Page 9: Specifications

    5.SPECIFICATIONS Tiller KS 7HP-850A KS 7HP-950A KS 7HP-950S Engine model KS 240 KS 240 KS 240 Nominal power, kW Engine capacity, сm3 Engine type Gasoline Tilling width, cm ≤ 77 ≤ 105 ≤ 105 Tilling depth, cm ≤ 31 ≤ 31 ≤...

  • Page 10: Safety Technique

    6.SAFETY TECHNIQUE Before operating the cultivator, please read carefully the operating instructions. Do not allow other people and children to use the device. Do not use the appliance in close proximity to the work area of adults, children and animals - the responsibility for accidents and property is borne by the cultivator user.
  • Page 11 OPERATION OF THE DEVICE AT THE GOOD LOCATION 1. Keep track of the correct location of the appliance on the slopes. The angle of inclination of 10% corresponds to 10 cm, a rise of 100 cm to the horizontal plane. Do not apply soil plowing on steeper slopes, in order not to lose control of the device.

  • Page 12: Composition

    (except model KS 7HP-950S, KS 7HP-1050G, KS 9HP-1350G-3) 1 pc. Transport wheel (except model KS 7HP-850A, KS 7HP-950A ) 1 pc. 5.Parking support bracket (except model KS 7HP-850A, KS 7HP-950A, KS 7HP-950S) 1 pc. 6. Console 1 pc. 7. Side protectors 2 pc.

  • Page 13: Collecting The Cultivator

    8. COLLECTING THE CULTIVATOR COULTER Fig. 5 To adjust the depth of the 1. Soshnik plow in the cultivator there 2. Bolt is a coulter. It is regulated by moving it up and down 3. Mounting bracket with an elongated clamp. 4.
  • Page 14 CUTTING CUTTERS ASSEMBLING. The product comes with the blades. The number of blades (24 pcs, 32 pcs, 40 pcs) varies with the cultivator model. There are two mounting options: 1. Three sections with four knives (82 cm width); 2. Four sections with four knives (115 cm width).
  • Page 15 Fig. 15b. Fig. 15а Fig. 15b For model KS 7HP-850A, first attach the operator’s panel to the steering column using the fixing bolts, then attach the engine speed control, as shown in figures 15, 15d.
  • Page 16 TRANSMISSION COVER Attach the transmission cover to the cultivator by inserting the fasteners into the corresponding holes. Fig. 17 Fig. 16 FENDERS Attach the fenders to the cultivator frame by inserting the fasteners into the corresponding holes. Fig. 19 Fig. 18 SUPPORT FOOT Attach the cultivator’s support foot to the bracket by inserting the fasteners into the corresponding holes.
  • Page 17 ENGINE SPEED CONTROL AND CLUTCH CABLES Engine speed adjustment is carried out with the help of a gas handle (1). The start of the cultivator is carried out with the clutch handle (2). Fig. 22 1. Gas handle 2. Clutch handle ATTENTION - DANGEROUS! The cultivator is supplied without oil and fuel.
  • Page 18 OPERATOR PANEL POSITION: 1. Loosen the bolt that fixes the position of the operator panel. 2. Install the operator panel to the required height. 3. Fasten the panel with a bolt. Fig. 24 Operator panel locks Shift lever SHIFT LEVER. To work with the lever: 1.

  • Page 19: Operation Instruction

    9. OPERATION INSTRUCTION Fig. 26 During the commissioning: 1. Fill the crankcase with engine oil. filter cap 2. Fill the transmission case with SAE 75W-90, SAE 80W-90 or SAE 85W-90 grade oil to the level specified for a given model. Be sure to fill 50-100 ml check the oil level with an oil dipstick, as the device of oil...
  • Page 20 STARTING AND STOPPING THE ENGINE Before starting the engine, make sure the switch is in position I (on). Turn the rotary engine speed dial to MAX (see picture 27). Damper motor switch to position CHOKE. Grasp the starter handle and slowly pull it to the emergence of resistance, then sharp fast motion pull starter all the way.
  • Page 21 Fig. 29 Reversing 1. Set the gearshift lever to the “+1” (or Disengaged lever “+2” or “+3”) position. 2. Gently press the clutch lever Engaged (see Fig. 16). (for model KS 7HP-1050G, see Fig. 3 on page 7). Clutch lever Engaged Disengaged Clutch lever...

  • Page 22: Maintenance

    10. MAINTENANCE In order to prevent unintentional inclusion of the engine, disconnect the spark plug of the engine when storaging device, transportation and all the works on cleaning and maintenance (such work is permitted only with cooled engine). The use, storage and maintenance of Könner & Söhnen tillers must be made according to this manual.
  • Page 23 Tension roller Fig. 32 3. Remove four engine mounting bolts for work on regulation. Move engine forward or backward the required belt tension and make sure that the external surfaces of driving and driven pulleys are in the same plane. CHANGING AND ADDING FUEL TO THE ENGINE Follow the maintenance schedule and regularly check the oil level in the engine.
  • Page 24 SPARK PLUG MAINTENANCE Spark plug is an important part which provides correct and long work of the engine. It is important to keep an eye on the plug – it should not have cracks, must be installed in a right way and have no soot. Fig.
  • Page 25 Fig 36 Electrode INTERNAL COMBUSTION ENGINE For the most long-term use of the engine it is important to watch the condition of an oil and air filter, oil level. Cooling fins should always be in a clean condition - this provides the best cooling for the engine.

  • Page 26: Troubleshooting

    11. TROUBLESHOOTING Malfiunktion Possible cause Troubleshooting Engine circuit breakeris Bring the enginecircuit breaker to in the OFF position ON position There is no fuel in the tank Add fuel,clean the fuel line Alwaysusefresh fuel of Cloggedfuel line brandedvarieties, good unleaded gasoline Pool, old or contaminated fuel Clean fuel tank, fuel line to the...

  • Page 27: Transportation

    12. TRANSPORTATION Before moving or transporting the cultivator, make sure the ignition switch ON / OFF valve and fuel are in the «OFF» (OFF). Set the cultivator horizontally to avoid fuel spillage. Steam of gasoline or spilled gasoline is fire and explosive! For the convenience of transporting the cultivator, use the packaging in which it is sold.
  • Page 29 NOTES ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________...
  • Page 30 CONTACT DETAILS Manufacturer: DIMAX International GmbH Deutschland, Hauptstr. 134, 51143 Köln, info@dimaxgroup.de www.ks-power.de DIMAX International Poland Sp.z o.o. Poland, Warczawska, 306B 05-082 Stare Babice, info.pl@dimaxgroup.de www.ks-power.pl Ukraine sales@ks-power.com.ua www.ks-power.com.ua...
