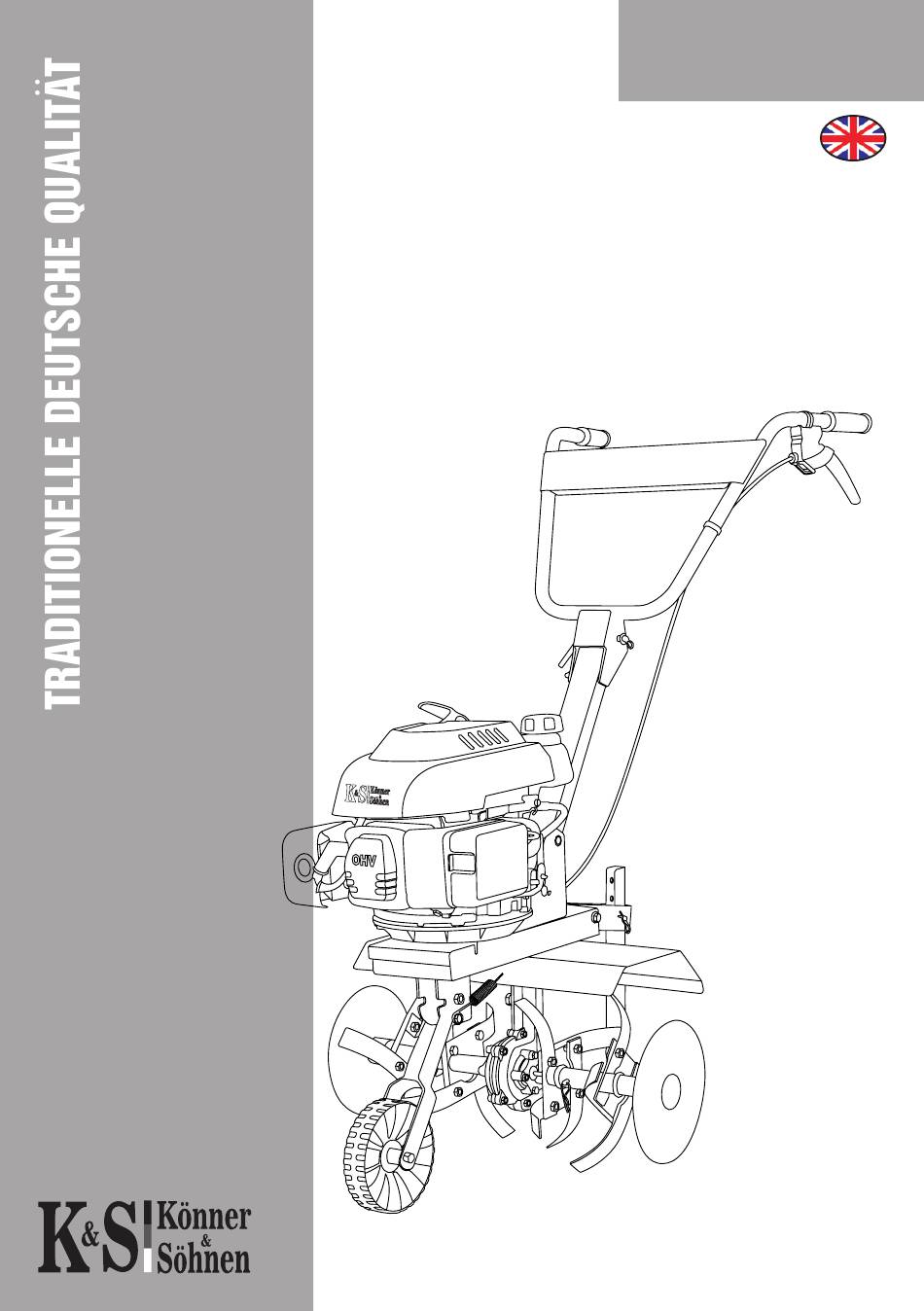

- Page 1 Owner’s Manual Please, read this manual carefully before use! Gasoline Cultivator KS 4HP-45 KS 5HP-65...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Preface 2. Product Description 3. Specifications 4. Product Overview 5. Safety Precautions 6. Description of Symbols 7. Supply Package 8. Cultivator Assembly 9. Cultivator Operation 10. Maintenance 11. Troubleshooting 12. Transportation 13. Storage 14. Disposal EXPLANATION OF SYMBOLS: ТМ... -
Page 3: Preface
PREFACE Thank you for your purchase of the gasoline cultivator from TM Könner & Söhnen. This manual contains safety information and requirements for the use and maintenance of this product. Before getting started, we strongly recommend that you familiarize yourself with the owner’... -
Page 4: Specifications
SPECIFICATIONS Cultivator KS 4HP-45 KS 5HP-65 Engine power, max. (HP) Rated power (kW) 2,98 3,73 Engine KS 100 KS 140 Engine capacity (ccm) Plowing width (cm) ≤ 45 ≤ 65 Plowing depth (cm) ≤ 26 ≤ 26 Fuel tank capacity (L) -
Page 5: Product Overview
PRODUCT OVERVIEW KS 4HP-45, KS 5HP- 65 Fig. 1 1. Operator’s panel 2. Engine 3. Fenders 4. Plant shielding wheel 5. Transport wheel 6. Gearbox 7. Cutters 8. Coulter... -
Page 6: Safety Precautions
SAFETY PRECAUTIONS Before operating the cultivator, please carefully read the owner’s manual. Do not allow unauthorized people and children to operate the device. Do not use the device in close proximity to the working area of adults, children and animals - the user of the cultivator is solely responsible for personal injury and property damage. - Page 7 OPERATING THE CULTIVATOR ON THE MOUNTAINOUS TERRAIN 1. Follow the correct positioning of the device on the slopes. The slope angle of 10% corresponds to a 10 cm lift per 100 cm horizontal plane. Never attempt to plow soil on steeper slopes in order not to lose control of the device. 2.
-
Page 8: Description Of Symbols
MAINTENANCE AND REPAIR When operating the cultivator on slopes, the slope angle should not exceed 10% (5.7°). Only operate the device in daylight or with adequate artificial lighting. Only use original spare parts to avoid personal injury and damage to the device; replace worn or damaged parts in a timely manner;... - Page 9 Do not touch! The surface becomes Clutch hot during operation. Crankcase capacity Recommended oils Position of the air choke handle (to start, set to “Closed” in the direction of the arrow) Fuel valve (set to “Open” in the direction of the arrow) Noise level at a distance of 7 m Fill the oil tank to the...
-
Page 10: Supply Package
SUPPLY PACKAGE 1. Cultivator 1 pcs 2. Steering column 1 pcs 3. Transport wheel 1 pcs 4. Plant shielding wheel 2 pcs 5. Operator’s panel protection 1 pcs 6. Coulter holder 1 pcs 7. Cutter shaft 2 pcs 8. Left-hand cutter 8 pcs 9. - Page 11 Fig. 2...
- Page 12 Fig. 2...
-
Page 13: Cultivator Assembly
ASSEMBLE THE CULTIVATOR AS SHOWN ASSEMBLING THE CUTTERS Fig. 3 INSTALLING THE CUTTERS AND PLANT SHIELDING WHEELS Fig. 4 MOUNTING THE COULTER HOLDER Fig. 5... - Page 14 MOUNTING THE COULTER Fig. 6 MOUNTING THE STEERING COLUMN Fig. 7 MOUNTING THE OPERATOR’S PANEL Fig. 8...
- Page 15 ASSEMBLING THE STEERING COLUMN Fig. 9 MOUNTING THE RIGHT AND LEFT-HAND FENDERS Fig. 10 INSTALLING THE CABLE TIES Fig. 11 MOUNTING THE TRANSPORT WHEEL Fig. 12...
-
Page 16: Cultivator Operation
CULTIVATOR OPERATION COMMISSIONING During the commissioning: 1. Fill the crankcase with oil (0.6 L) 2. Fill the fuel tank with gasoline (0.4 L for KS 4HP-45; 0.45 L for KS 5HP-65) Fig 13 USEFUL TIPS 1. To determine the plowing depth, use the coulter at different heights. With the coulter driven deeper into the soil, the cutters also go deep into the soil and the advancement of the device forward slows down considerably. - Page 17 OPERATOR’S PANEL POSITION 1. Loosen the bolt securing the operator’s panel. 2. Set the operator’s panel to the desired height. 3. Secure the panel with the bolt. STARTING AND STOPPING THE ENGINE Before starting the engine, pump up the gasoline by repeatedly pressing the red button (no more than 5 times).
- Page 18 COUPLING OF WORKING PARTS The engine clutch transmits torque from the engine to the transmission. When the clutch lever is pressed, the belts start to rotate merely to transmit the movement to the chain transmission. Transport the cultivator to the land plot that needs to be plowed. Start the engine.
-
Page 19: Maintenance
MAINTENANCE In order to prevent unintentional engine start, disconnect the spark plug wire from the engine during storage and transportation of the device and before all cleaning and maintenance work (such work is allowed only with the engine cooled). The Könner & Söhnen cultivators must be operated, stored and maintained in accordance with the owner’s manual. - Page 20 WARNING - DANGER! The cultivator is delivered without oil and fuel. Before the first start, be sure to fill the device with oil and gasoline! Use a funnel (not included) to fuel the device. Oil pollutes soil and groundwater. Avoid oil leaking out of the crankcase. Dump used oil into the hermetically sealed container.
- Page 21 MAINTAINING THE SPARK PLUGS The spark plug is one of the most important items to ensure proper and sustainable engine operation. Be sure to check the spark plug on a regular basis: it must be intact, properly gapped and free of deposits. Fig.
- Page 22 CULTIVATOR ENGINE MAINTENANCE INTERVALS Unit Action Level check Engine oil Replacement Cleaning Air filter Replacement Cleaning Spark plug Replacement Fuel level check Fuel tank Cleaning AIR FILTER Regular maintenance of the air filter is necessary to maintain sufficient air flow in the carburetor.
-
Page 23: Troubleshooting
TROUBLESHOOTING... -
Page 24: Transportation
TRANSPORTATION Before handling or transporting the cultivator, make sure the ON/OFF switch and fuel valve are in the “OFF” (disabled) position. Install the cultivator horizontally to avoid spilling fuel. Gasoline vapors and spilled gasoline are fire and explosion hazardous! For convenient transportation of the cultivator, use the original packaging of the cultivator. - Page 26 CONTACTS Germany ks-power.de info@dimaxgroup.de Poland ks-power.pl info.pl@dimaxgroup.de Ukraine ks-power.com.ua sales@ks-power.com.ua...
