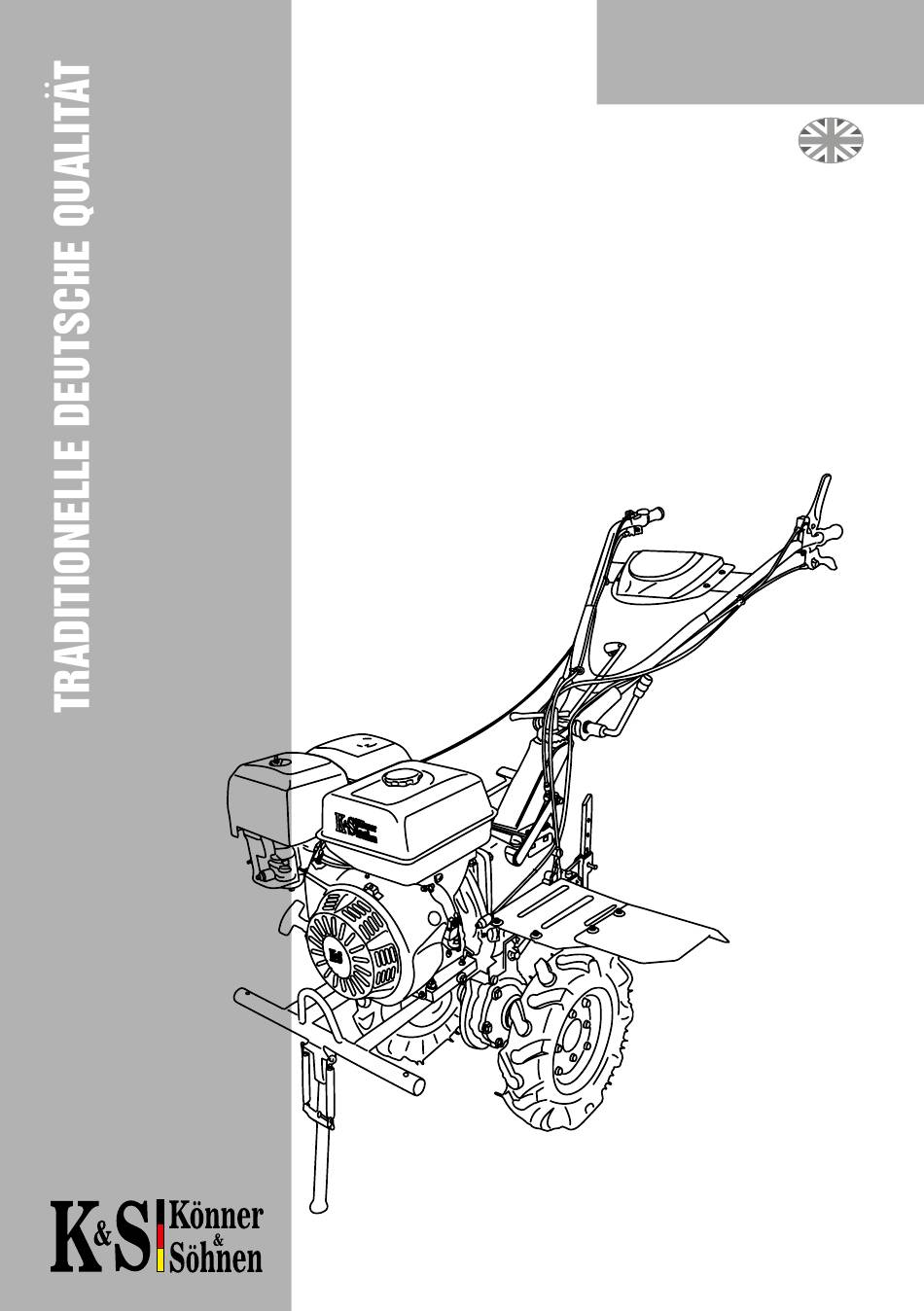

- Page 1 Please read this manual Owner’s Manual before use Gasoline tiller KS 7HP-950A KS 7HP-950S KS 7HP-1050SG KS 13HP-1350BG...
-
Page 2: Table Of Contents
CONTENTS 1. Introduction 2. Tiller overview 3. Main specification 4. Main overview 5. Main overview культиваторів 6. Safety information 7. Symbols overview 8. Packing list 9. Iinstallation instrruction 10. Operation instuction 11. Maintenance 12. Troubleshooting 13. Transportation 14. Storage 15. Waste Explanation of symbols: Könner &... -
Page 3: Introduction
INTRODUCTION We are grateful to you for your purchase of ТМ Könner & Söhnen series gasoline tiller. This manual contains safe working recommendations, operation and adjustment description of these tillers and maintenance instructions. All data, specified in this operation manual is the most up to date for the moment of its publishing. -
Page 4: Main Specification
MAIN SPECIFICATION KS 7HP- KS 7HP- KS 7HP- KS 13HP- Tiller 950A 950S 1050SG 1350BG 13,0 Max power, hp , kW Nominal power KS 210 KS 210 KS 210 KS 390 Gasoline engine Engine capacity, сm Working width, сm depth, cm ≤... -
Page 5: Main Overview
MAIN OVERVIEW KS 7HP-950A, KS 7HP-950S Pic. 1 1. Transportation wheel for model 7. Injection pen KS 7HP-950A (parking support 8. Switch position bracket for model 9. Transmission housing KS 7HP-950S) 10. Soshnik 2. The engine 11. Wing 3. Steering column 12. -
Page 6: Main Overview Культиваторів
GENERAL VIEW OF CULTIVATORS KS 7HP-1050SG, KS 13HP-1350BG Pic. 2 1. Parking support bracket 8. Switch position 2. The engine 9. Soshnik 3. Steering column 10. Wing 4. Operator panel 11. Protective disk 5. Adjust the engine speed 12. Mills 6. -
Page 7: Safety Information
SAFETY TECHNIQUE Before operating the cultivator, please read carefully the operating instructions. Do not allow other people and children to use the device. Do not use the appliance in close proximity to the work area of adults, children and animals - the responsibility for accidents and property is borne by the cultivator user. - Page 8 OPERATION OF THE DEVICE AT THE GOOD LOCATION 1. Keep track of the correct location of the appliance on the slopes. The angle of inclination of 10% corresponds to 10 cm, a rise of 100 cm to the horizontal plane. Do not apply soil plowing on steeper slopes, in order not to lose control of the device.
-
Page 9: Symbols Overview
MAINTENANCE AND REPAIR When using a cultivator on slopes, lifting must not exceed 10% (5.7 °). Operation of the device is possible only in daylight or good artificial lighting. To avoid injury and damage Use only original spare parts, replace worn or damaged parts on time, tighten all bolts, screws and nuts all the way. - Page 10 Задній хід Зчеплення Position of the knob of the air damper (to start it put into the «Closed» position in the direction of the arrow) Faucet (move to «Open» position in the direction of the arrow) The volume of crankcase Recommendations for oil Fill the oil Only to the specified...
-
Page 11: Packing List
4. Soshnik 1 pc. 5. Parking support bracket (except model KS 7HP-950A) 1 pc. Transport wheel (KS 7HP-950A only) 6. Transmission case (for models KS 7HP-950A, KS 7HP-950S) 1 pc. 7. Console 1 pc. 8. Protective wings 2 pc. -
Page 12: Iinstallation Instrruction
COLLECTING THE CULTIVATOR COULTER To adjust the depth of the plow in the cultivator there is a coulter. It is regulated by moving it up and down with an elongated clamp. The more depth the coulter gets, the greater the depth of processing the earth. Secure the coil holder (2) with the vertical pin (1), insert the coil (4) into the bracket, 1. - Page 13 CUTTING CUTTERS ASSEMBLING. KS 7HP-950A and KS 7HP-950S models come with 24 knives and there are two assembly options available: 1. Three sections with four knives (82 cm width). 2. Four sections with four knives (115 cm width). Pic. 7 To increase the trim width, kit also includes an elongated midsole.
- Page 14 PROTECTIVE WINGS. Attach protective wings to the cultivator frame by mounting in the appropriate openings on the frame. OPERATOR PANEL Pic. 9 Mount the operator panel to the steering column using the operator panel latch (Figure 9a) as shown in Figure 9b. Operator panel lockers.
- Page 15 Assemble the gearshift lever as shown in Fig. 4 Leverage fixing bolt Gear box shank Check lever Gear box shank Pic.4 ENGINE SPEED CONTROL AND CLUTCH CABLES Engine speed adjustment is carried out with the help of a gas handle (1). The start of the cultivator is carried out with the clutch handle (2).
- Page 16 OPERATOR PANEL POSITION. 1. Loosen the bolt that fixes the position of the operator panel. 2. Install the operator panel to the required height. 3. Fasten the panel with a bolt. Operator panel locks Shift lever SHIFT LEVER. TO WORK WITH THE LEVER: 1.
-
Page 17: Operation Instuction
OPERATION INSTRUCTION Commissioning Pic.11 1. To determine the depth of processing, set the drag bar at different height. When deep кришка фільтру establishing of a drag bar, blades also go deep into the soil and promoting the device forward significantly slows. налийте... - Page 18 Starting and stopping the engine Before starting the engine, make sure the switch is in position I (on). Turn the rotary engine speed dial to MAX (see picture 12). Damper motor switch to position CHOKE. Grasp the starter handle and slowly pull it to the emergence of resistance, then sharp fast motion pull starter all the way.
- Page 19 Reverse function for model KS 7090T-2/1 The cultivator is equipped with Engaged reverse function for better maneuvering. For blades to begin the reverse rotation, press and hold the gear lever in reverse Disengaged position. Stop the engine after completion. Clutch lever Caution! Don’t use reverse mode for ground tilling! Next steps...
-
Page 20: Maintenance
MAINTENANCE In order to prevent unintentional inclusion of the engine, disconnect the spark plug of the engine when storaging device, transportation and all the works on cleaning and maintenance (such work is permitted only with cooled engine). The use, storage and maintenance of Könner & Söhnen tillers must be made according to this manual. - Page 21 Chain transmission regulation Occasionally, after extended tiller use, regulation of chain transmission is necessary. To do this, follow these steps: 1. Remove the chain transmission, previously removing its screw. 2. Grip the handle grip. Check the distance between the upper point of the belt and upper-point of roller - it should be 60 - 65 mm (2.4 -2.5 inches).
- Page 22 Follow these steps to add oil: 1. Make sure that the tiller is placed on a flat surface. 2. Remove the probe tap on the engine. 3. Pour the oil into the carter.. 4. Oil level should be close to the maximum probe level. Cover with probe Drain oil tap Oil level...
- Page 23 Electrode Internal combustion engine For the most long-term use of the engine it is important to watch the condition of an oil and air filter, oil level. Cooling fins should always be in a clean condition - this provides the best cooling for the engine. Action Level check Engine oil...
-
Page 24: Troubleshooting
TROUBLESHOOTING... -
Page 25: Transportation
TRANSPORTATION Before moving or transporting the cultivator, make sure the ignition switch ON / OFF valve and fuel are in the «OFF» (OFF). Set the cultivator horizontally to avoid fuel spillage. Steam of gasoline or spilled gasoline is fire and explosive! For the convenience of transporting the cultivator, use the packaging in which it is sold. - Page 26 CONTACTS Germany ks-power.de info@dimaxgroup.de Poland ks-power.pl info.pl@dimaxgroup.de Ukraine ks-power.com.ua sales@ks-power.com.ua...
