Knoll DIR22 Installation Instructions

DIR22 Digital Infrared Receiver Specifications:
Specifications
Infrared carrier frequency: 30-60kHz
Indoor reception range:
Outdoor reception range:
Nominal reception angle:
Transmission wire maximum length: 1000' (300m)
Wire requirements:
Power requirements:
Dimensions:
Requires 12VDC power supply, emitter(s) and DIR54,
DIR55 or DIR58 connection block.
Warranty
Knoll Systems warrants its products sold in the USA and Canada by authorized
Knoll dealers to be free of defects in materials and workmanship. This warranty
extends for three full years from the date of purchase by the original consumer.
Any products returned to Knoll Systems and found to be defective by Knoll
Systems within the warranty period will be repaired or replaced at Knoll Systems
option, at no charge. Knoll Systems will not be responsible for the actual cost of
installation or removal of the product, nor for any incidental or consequential
damages. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation may not apply to you. This
warranty gives you specific legal rights. You may have additional legal rights
that vary from state-to-state.
Knoll Systems www.knollsystems.com
145 Tyee Drive Point Roberts, WA 98281
12140 Horseshoe Way, Richmond BC V7A 4V5
Telephone: (604) 272-4555, Fax: (604) 272-5595
Made in Canada Knoll Systems All Rights Reserved
150 feet + (45 meters +)
35-50 feet (10-15 meters)
50 degrees off axis
3 conductor, minimum 24 gauge
to 200', 22 gauge up to 500'
20 gauge to 1000'
Unregulated 12VDC, 40mA
15/16 x 3/8 x 1/2" h
(24 x 9.5 x 13 mm h)
DIR22
Digital Micro Infrared Receiver
Installation Instructions v1.0
Warning: To be installed and/or used in
accordance with appropriate electrical codes
and regulations.
Introduction:

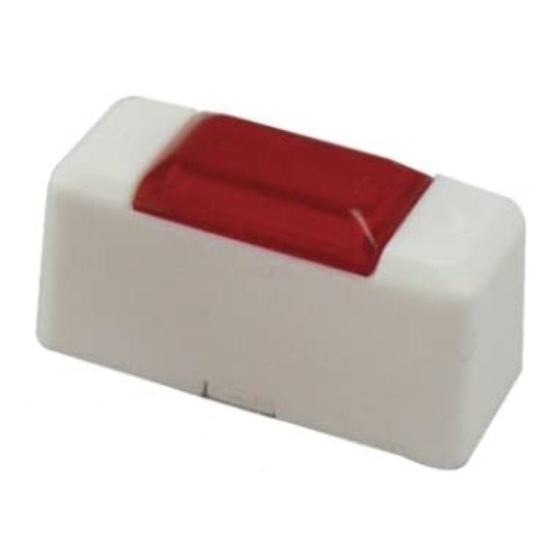

Thank you for your purchase of a Knoll DIR22
digital infrared receiver. This receiver features a long indoor
usable range and it can be used in direct sunlight and near
plasma and other TV's. It is designed to act as a remote
receiver of remote control signals that when passed through a
connection module and emitters, relays remote infrared
commands to equipment in a distant room.
Features:
• Very small design,
available in white, silver
and black colors.
• Will relay almost all
remote control types
(except some B & O
models).
• Can be connected with almost any 3-conductor wire
including cat 5.
• Requires very little power. Suggest using PS1202 12 vdc
(200 mA) for up to 5 DIR22's.
• Requires DIR54, DIR55 or DIR58 connection module,
power supply and emitters to work.
• Up to 10 or more DIR22's and other compatible models
can be connected in a single system.
• Connects with a three wire connector.
