Knoll IR350 Installation Instructions

Knoll IR350 Installation Instructions

Postage stamp infrared receiver

Advertisement

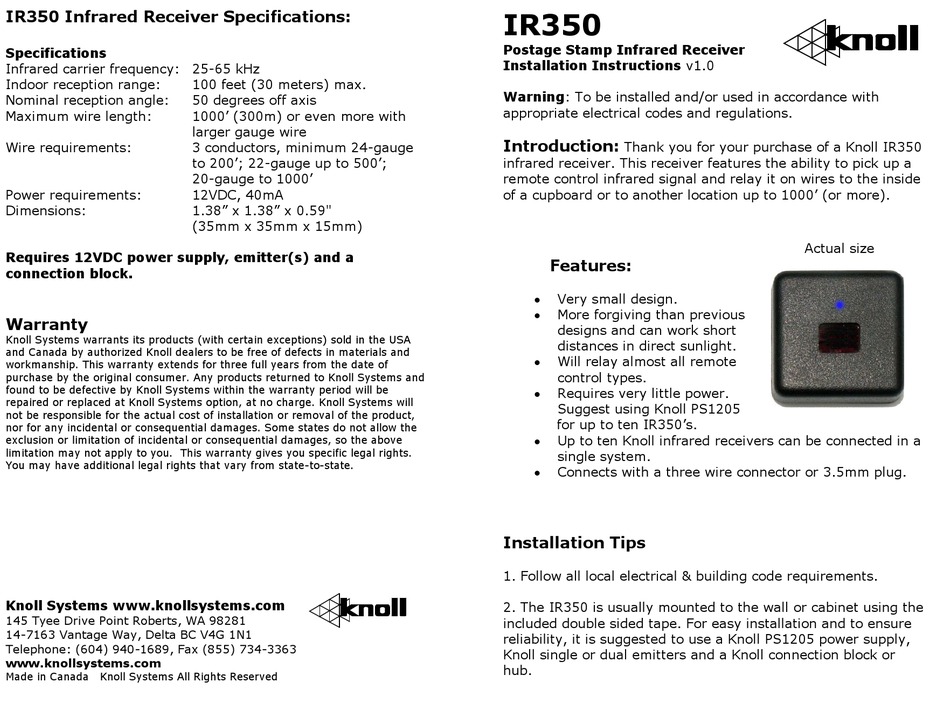

IR350 Infrared Receiver Specifications:

Specifications
Infrared carrier frequency: 25-65 kHz
Indoor reception range:
Nominal reception angle:
Maximum wire length:
Wire requirements:
Power requirements:
Dimensions:
Requires 12VDC power supply, emitter(s) and a
connection block.

Warranty

Knoll Systems warrants its products (with certain exceptions) sold in the USA
and Canada by authorized Knoll dealers to be free of defects in materials and
workmanship. This warranty extends for three full years from the date of
purchase by the original consumer. Any products returned to Knoll Systems and
found to be defective by Knoll Systems within the warranty period will be
repaired or replaced at Knoll Systems option, at no charge. Knoll Systems will
not be responsible for the actual cost of installation or removal of the product,
nor for any incidental or consequential damages. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above
limitation may not apply to you. This warranty gives you specific legal rights.
You may have additional legal rights that vary from state-to-state.
Knoll Systems www.knollsystems.com
145 Tyee Drive Point Roberts, WA 98281
14-7163 Vantage Way, Delta BC V4G 1N1
Telephone: (604) 940-1689, Fax (855) 734-3363
www.knollsystems.com
Made in Canada
Knoll Systems All Rights Reserved
100 feet (30 meters) max.
50 degrees off axis
1000' (300m) or even more with
larger gauge wire
3 conductors, minimum 24-gauge
to 200'; 22-gauge up to 500';
20-gauge to 1000'
12VDC, 40mA
1.38" x 1.38" x 0.59"
(35mm x 35mm x 15mm)
IR350
Postage Stamp Infrared Receiver
Installation Instructions v1.0
Warning: To be installed and/or used in accordance with
appropriate electrical codes and regulations.
Introduction:
Thank you for your purchase of a Knoll IR350
infrared receiver. This receiver features the ability to pick up a
remote control infrared signal and relay it on wires to the inside
of a cupboard or to another location up to 1000' (or more).

Features:

Very small design.
More forgiving than previous
designs and can work short
distances in direct sunlight.
Will relay almost all remote
control types.
Requires very little power.
Suggest using Knoll PS1205
for up to ten IR350's.
Up to ten Knoll infrared receivers can be connected in a
single system.
Connects with a three wire connector or 3.5mm plug.

Installation Tips

1. Follow all local electrical & building code requirements.
2. The IR350 is usually mounted to the wall or cabinet using the
included double sided tape. For easy installation and to ensure
reliability, it is suggested to use a Knoll PS1205 power supply,
Knoll single or dual emitters and a Knoll connection block or
hub.

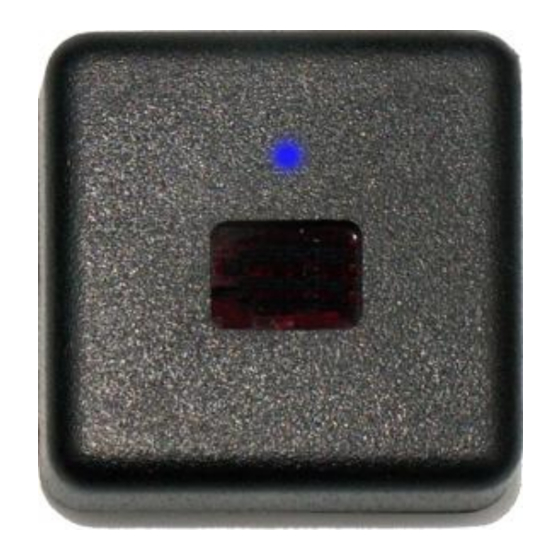

Actual size
