- Page 1 C-300 Series Key Digital Enterprise AV – HD over IP Systems Solution Guide...

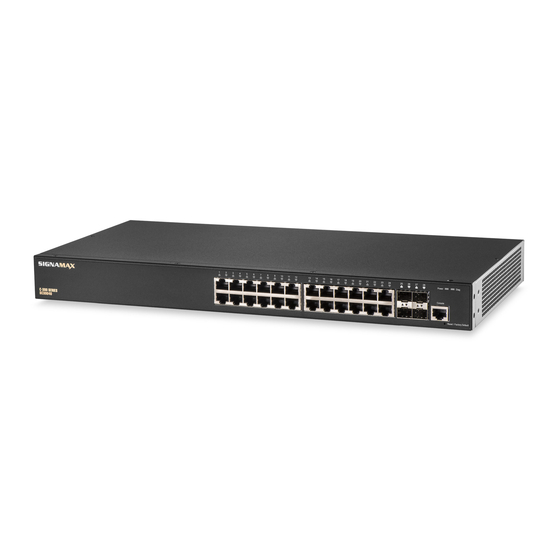

- Page 2 Key Digital AV over IP Solution Guide SC30010 C-300 48 Port Gigabit Managed Switch SC30020 C-300 24 Port Gigabit PoE+ Full Power Managed Switch (Total Power Budget: 370W, can extend to 740W) SC30030 C-300 24 Port Gigabit PoE+ Managed Switch (PoE Power Budget: 200 W) SC30040 C-300 24 Port Gigabit Managed Switch...
-
Page 3: How To Use This Guide
How to Use This Guide This guide includes detailed instructions on how to optimize a C-300 Series switch for the Key Digital Enterprise AV – HD over IP Systems based on the requirements and information provided by Key Digital. Who Should Read This guide is for network administrators who are responsible for this Guide? operating and maintaining network equipment. -
Page 4: Table Of Contents
Contents Contents How to Use This Guide ......................3 C-300 Series Configuration via Web Interface for Key Digital Enterprise AV – HD over IP Systems Configuration via Web Interface ................5 Jumbo Frames ..........................6 Internet Group Management Protocol (IGMP) ................7 C-300 Series Configuration for Key Digital Enterprise AV –... -
Page 5: C-300 Series Configuration Via Web Interface For Key Digital Enterprise Av - Hd Over Ip Systems Configuration Via Web Interface
Key Digital AV over IP Solution Guide C-300 Series Configuration via Web Interface for Key Digital Enterprise AV – HD over IP Systems Configuration via Web Interface See the Preparation for Web Interface section of the Web Management Guide for how to... -
Page 6: Jumbo Frames
Key Digital AV over IP Solution Guide Jumbo Frames 1. Enable Jumbo Frames o Navigate to System->Capabilities o Enable Jumbo Frame o Click Apply - 6 -... -
Page 7: Internet Group Management Protocol (Igmp)
Key Digital AV over IP Solution Guide Internet Group Management Protocol (IGMP) 2. General IGMP Configuration o Navigate to Multicast->IGMP Snooping - > General o Enable IGMP Snooping Status o Enable Querier Status o Click Apply - 7 -... - Page 8 Key Digital AV over IP Solution Guide 3. Per VLAN IGMP Configuration o Navigate to Multicast->IGMP Snooping - > Interface o Choose Action: Configure VLAN o Choose the VLAN that the Av over IP devices will use. By default this is 1 o Enable IGMP Snooping Status o Click Apply - 8 -...
- Page 9 Key Digital AV over IP Solution Guide Startup Config 1. Saving the configuration file o Click the Save Current Settings green button in the upper right of the screen - 9 -...
-
Page 10: C-300 Series Configuration For Key Digital Enterprise Av - Hd Over Ip Systems Using Configuration File
Key Digital AV over IP Solution Guide C-300 Series Configuration for Key Digital Enterprise AV – HD over IP Systems using configuration file An alternative to configuring the switch via the web interface described in the previous section is loading to the switch the configuration file provided in the link below... -
Page 11: Loading The Prepared Configuration File
1. Download the prepared Key Digital AV over IP configuration file Download the prepared configuration file from here: C-300 Series Configuration file for Key Digital Enterprise AV – HD over IP Systems Open the zip file and save the .cfg file on your computer. - Page 12 Key Digital AV over IP Solution Guide - 12 -...
- Page 13 Key Digital AV over IP Solution Guide 4. Reset the switch o Navigate to System->Reset o Click Apply 5. Complete the switch configuration After the switch has completed the reboot process (approximately 90 seconds) you can re-login to the switch and make any localized configuration required (IP address, passwords etc.) - 13 -...
