EGPC-B4S1

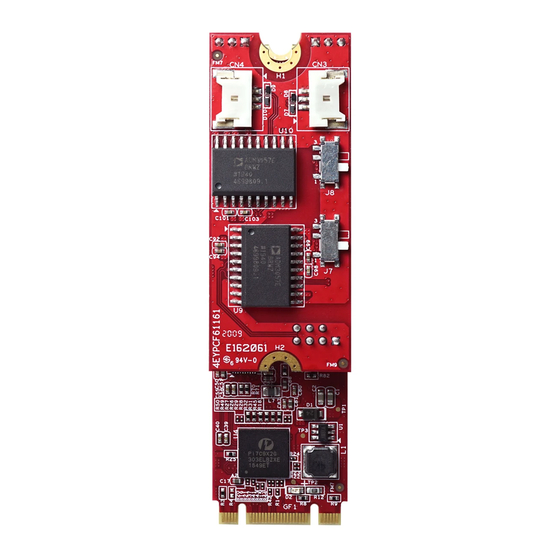

M.2 2280 to four isolated CANbus 2.0B
User Manual
Rev 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EGPC-B4S1 and is the answer not in the manual?

Questions and answers

Related Manuals for Innodisk EGPC-B4S1

Summary of Contents for Innodisk EGPC-B4S1

  • Page 1 EGPC-B4S1 M.2 2280 to four isolated CANbus 2.0B User Manual Rev 1.0...
  • Page 2 Copyright Information 2005-2020 ©Innodisk Corporation. All Rights Reserved Innodisk™ is trademark or registered trademark of Innodisk Corporation. This document is subject to change and revision without notice. No part of this document may be reproduced in any form by any photographic, electronic, mechanical or other means, or used in any information storage and retrieval system, without prior written permission from Innodisk Corporation.

  • Page 3: Revision History

    2005-2020 © Innodisk Corporation. All Rights Reserved Revision History Revision Date Description 2020/06/18 Initial Release...

  • Page 4: Table Of Contents

    2005-2020 © Innodisk Corporation. All Rights Reserved Table of Contents Revision History ........................ii Table of Contents ....................... iii Hardware Installation ..................... 1 Windows OS ........................2 2.1. Driver Installation ...................... 2 2.2. Loop Back Test Program................... 3 Linux OS ......................... 6 3.1.

  • Page 5: Hardware Installation

    2005-2020 © Innodisk Corporation. All Rights Reserved Hardware Installation Install the module to M.2 B-M key slot which has PCIe interface. The following picture shows the port order in majority platform. NOTE: Some platforms may show opposite port order in Windows.

  • Page 6: Windows Os

    2005-2020 © Innodisk Corporation. All Rights Reserved Windows OS 2.1. Driver Installation Install EGPC-B4S1 into M.2 B or M key slot of PCIe interface. The two devices named “CANbus Controller” or “Unknown device” can be found in “Device Manager”. Run the driver package as administrator.

  • Page 7: Loop Back Test Program

    2005-2020 © Innodisk Corporation. All Rights Reserved 2.2. Loop Back Test Program We provide a loop back test program with source code in Windows to verify the module. The test program can be configured by edit “setup.ini”. In majority cases, just keep the default setting.
  • Page 8 2005-2020 © Innodisk Corporation. All Rights Reserved When the program is running, for example, CAN1 sends a frame to CAN2, after CAN2 receives the frame CAN2 will check if the frame is correct or not. Then turn to CAN2 sends and CAN1 receives.
  • Page 9 2005-2020 © Innodisk Corporation. All Rights Reserved Test results will be saved to the following logs.

  • Page 10: Linux Os

    2005-2020 © Innodisk Corporation. All Rights Reserved Linux OS 3.1. SocketCAN Driver Installation EGPC-B4S1 uses SocketCAN driver on Linux kernel 2.6.38 and above. Please follow the steps to install SocketCAN driver. Use “lspci” command to make sure the device is recognized by OS.
  • Page 11 2005-2020 © Innodisk Corporation. All Rights Reserved - Module probe - $ modprobe f81601 - Use the following command to check driver version - $ dmesg | grep ‘Fintek’ - Use the following command to check CANBUS device is available (can0/… etc.)
  • Page 12 2005-2020 © Innodisk Corporation. All Rights Reserved The following is the sample point of supported baud rate. Please modify the sample-point by different baud rate setting. Baud Rate Sample-point 1000000 0.75 800000 0.80 500000 0.875 250000 0.875 125000 0.875 100000 0.875...

  • Page 13: Can-Utils

    2005-2020 © Innodisk Corporation. All Rights Reserved - Run the following command in the “release” folder to add/remove boot up script. - $ chmod +x add_2_boot.sh - $ ./add_2_boot.sh - $ chmod +x remove_boot.sh - $ ./ remove_boot.sh NOTE: You also can use “start_socketcan.sh” and “end_socketcan.sh” to initial or remove EGPC SocketCAN driver, please provide the “execute”...

  • Page 14: Loop Back Test Program

    2005-2020 © Innodisk Corporation. All Rights Reserved 3.3. Loop Back Test Program We provide a SocketCAN loop back test program with source code in Linux to verify the module. Please connect CAN ports the same as the description in “2.2. Loop Back Test Program”.
  • Page 15 2005-2020 © Innodisk Corporation. All Rights Reserved -Run the test - $ ./loopback...

  • Page 16: Contact Us

    2005-2020 © Innodisk Corporation. All Rights Reserved Contact us Headquarters (Taiwan) 5F., No. 237, Sec. 1, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan Tel: +886-2-77033000 Email: sales@innodisk.com Branch Offices: usasales@innodisk.com +1-510-770-9421 Europe eusales@innodisk.com +31-40-3045-400 Japan jpsales@innodisk.com +81-3-6667-0161 China sales_cn@innodisk.com...
