Innodisk EMPS-32R1 Quick Start Manual

EMPS-32R1

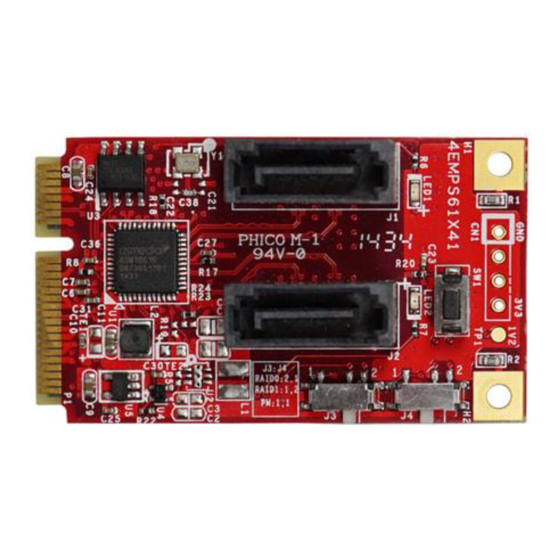

mPCIe to dual SATA III RAID Module

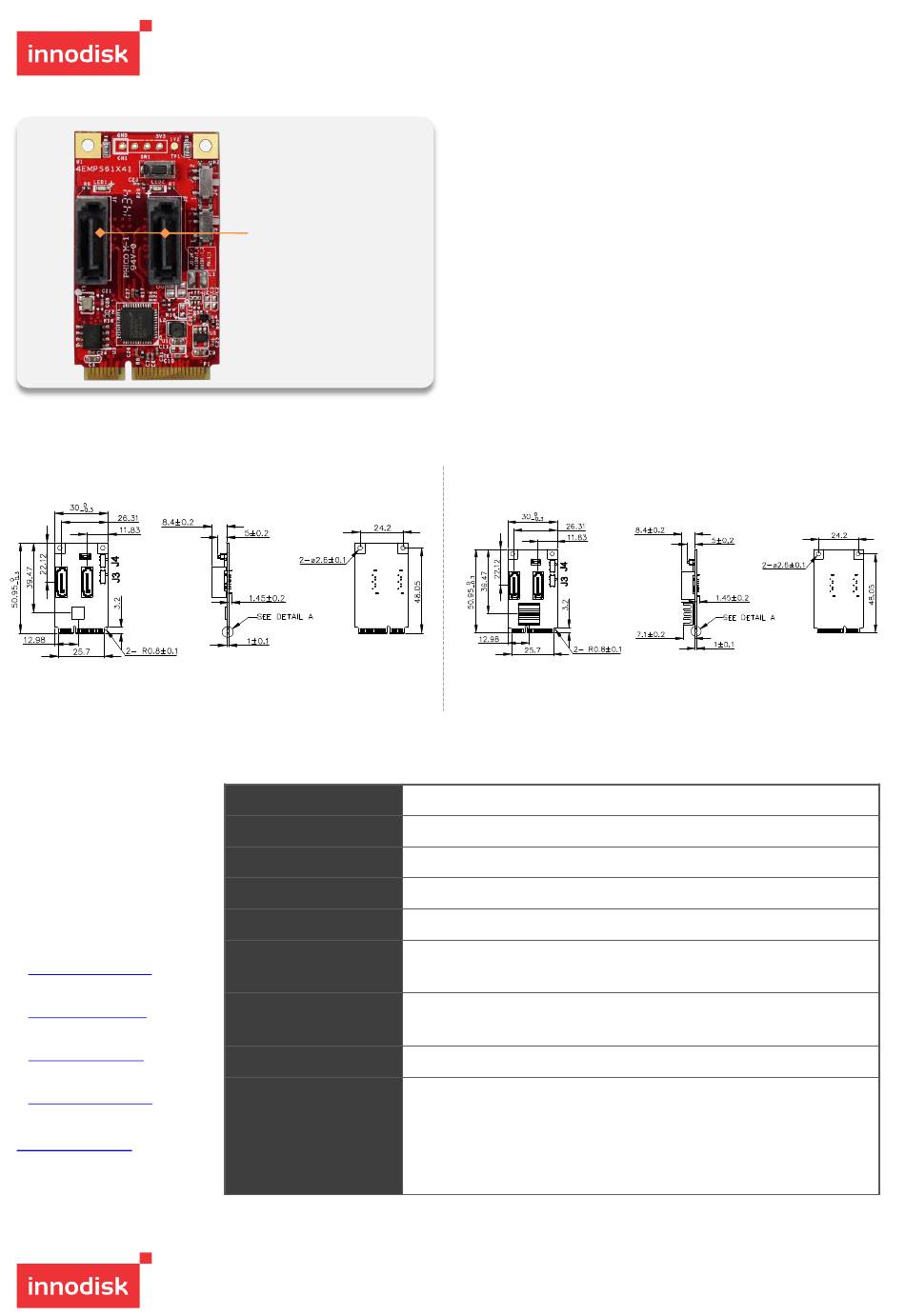

Mechanical Drawing

Standard Temp
SW1
Headquarters (Taiwan)
5F., No. 237, Sec. 1, Datong Rd.,
Xizhi Dist., New Taipei City 221,
Taiwan
Tel: +886-2-77033000
Email: sales@innodisk.com
Branch Offices:
USA
usasales@innodisk.com
+1-510-770-9421
Europe
eusales@innodisk.com
+31-040-282-1818
Japan
jpsales@innodisk.com
+81-3-6667-0161
China
sales_cn@innodisk.com
+86-755-21673689
www.innodisk.com
© 2016 Innodisk Corporation.
All right reserved. Specifications
are subject to change without
prior notice.
September 20, 2016
SATA III 7pin MALE

Specifications

Form-Factor
Input I/F
Output I/F
Output Connector
TDP
Dimension (WxLxH)
Temperature
Environment
Notes

Order information

EMPS-32R1-C1
mPCIe to dual SATA III RAID Module
EMPS-32R1-W1
mPCIe to dual SATA III RAID Module W/T

Features

−mPCIe to dual SATA III ports.
−Low power consumption.
−Supports AHCI, Port-Multiplier.
−Supports Native Command Queuing
−Supports Hardware RAID 0, RAID1
−Supports wide temp
−30µ golden finger, 3 years warranty.
−Industrial design, manufactured in innodisk Taiwan
Wide Temp
mPCIe
PCI Express 2.0
SATA III
SATA 7pin x 2
1.98W (3.3V x 600mA)
Standard Temp: 30 x 50.9 x 10.85 mm, Weight: 8.5g
Wide Temp: 30 x 50.9 x 10.85 mm, Weight: 8.5g
Operation: STD: 0°C ~ +70°C WT: -40°C ~ +85°C
Storage: -55°C ~ +95°C
Vibration: 5G @7~2000Hz, Shock: 50G @ 0.5ms
1. RAID Mode Setting:
[J3:J4]
RAID0: 2:1, RAID1: 1:2, PM: 1:1
2. Press tact switch SW1 for reset.
