EMPV-1202

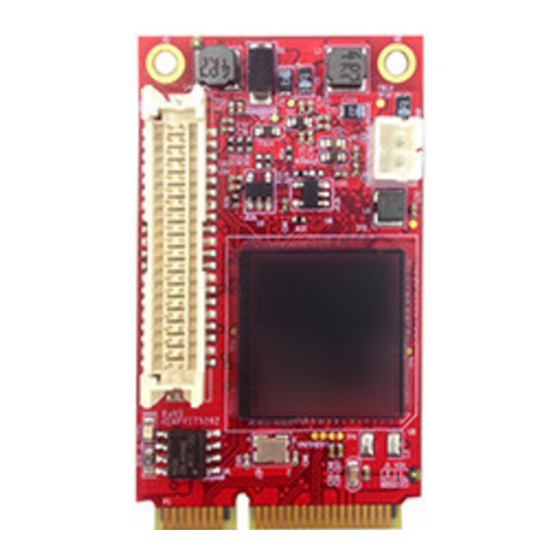

mPCIe to VGA & 18/24 bit LVDS module
40 Pin
(40DP-1.25)
VGA & LVDS

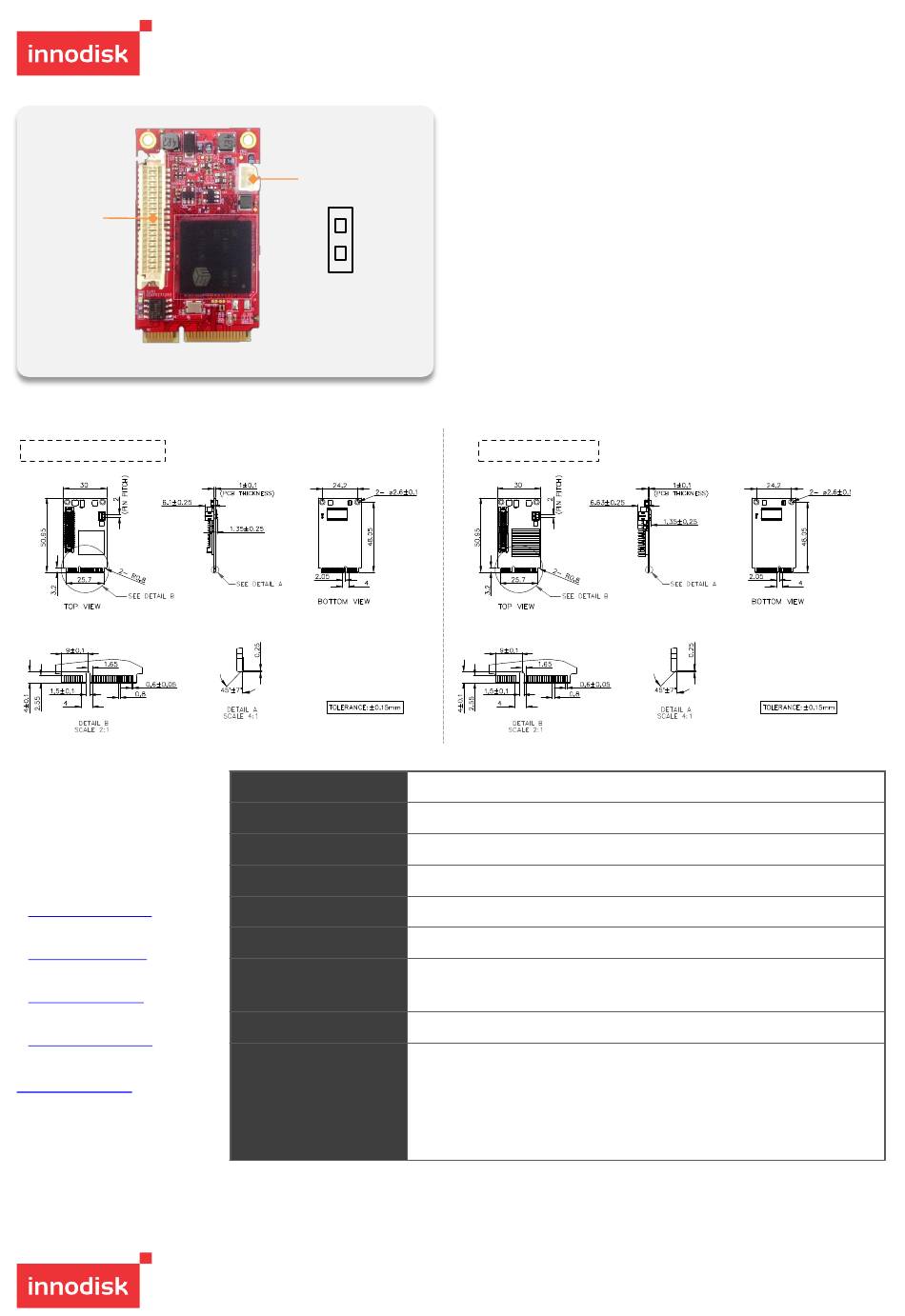

Mechanical Drawing

Standard Temp
Headquarters (Taiwan)
5F., No. 237, Sec. 1, Datong Rd.,
Xizhi Dist., New Taipei City 221,
Taiwan
Tel: +886-2-77033000
Email: sales@innodisk.com
Branch Offices:
USA
usasales@innodisk.com
+1-510-770-9421
Europe
eusales@innodisk.com
+31-040-282-1818
Japan
jpsales@innodisk.com
+81-3-6667-0161
China
sales_cn@innodisk.com
+86-755-21673689
www.innodisk.com
© 2015 Innodisk Corporation.
All right reserved. Specifications
are subject to change without
prior notice.
December 8, 2016
Power- in for
LVDS Panel
5V
GND

Specifications

Form-Factor
Input I/F
Output I/F
Output Connector
TDP
Dimension (WxLxH)
Temperature
Environment
Notes

Order information

EMPV-1202-C1(Standard Temp.)
EMPV-1202-W1(Wide Temp.)
mPCIe to VGA & 18 bit panel and 24 bit JEIDA LVDS format module
EMPV-1202-C2(Standard Temp.)
EMPV-1202-W2(Wide Temp.)
mPCIe to VGA & 24 bit VESA LVDS format module

Features

−VGA Output up to 1920x1080, up to 75Hz vertical rate
−LVDS resolution supports up to 1600 x 1200
−EMPV-1202-C1/W1 Support 18 bit panel and 24 bit
JEIDA LVDS
−EMPV-1202-C2/W2 Support 24 bit VESA LVDS
−Allow for 90º, 180º, and 270º rotation of on-screen
images.
−Optional Industrial Temperature (-40°C to +85°C)
support.
−30µ" golden finger, 3 years warranty.
−Industrial design. Manufactured in innodisk Taiwan.
Wide Temp
mini PCIe
PCI Express 1.0
VGA, 18/24 bit LVDS (C1 for JEIDA, C2 for VESA)
40pin 1.25mm (40DP-1.25)
1.98W(3.3V x 600mA)
50.95 x 30 x 8.2 mm, Weight: 8.5g
Operation: STD: 0°C ~ +70°C WT: -40°C ~ +85°C
Storage: -55°C ~ +95°C
Vibration: 5G @7~2000Hz, Shock: 50G @ 0.5ms
Need to connect external 5V power for LVDS panel.
OS Support : Windows XP (32 bit), Windows 7 (32/64 bit),
Windows 8 (64 bit), Linux Ubuntu 12.10(64 bit), Linux
Fedora 18, Linux RedHat Enterprise 6.3.
Please download driver from Myinnodisk website.
