Innodisk EGSS-32R1 Manual

EGSS-32R1

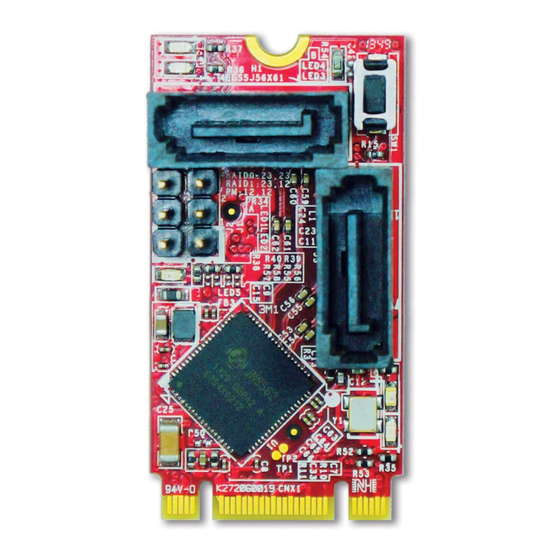

M.2 2242 to Dual SATA III RAID Module
Pin header

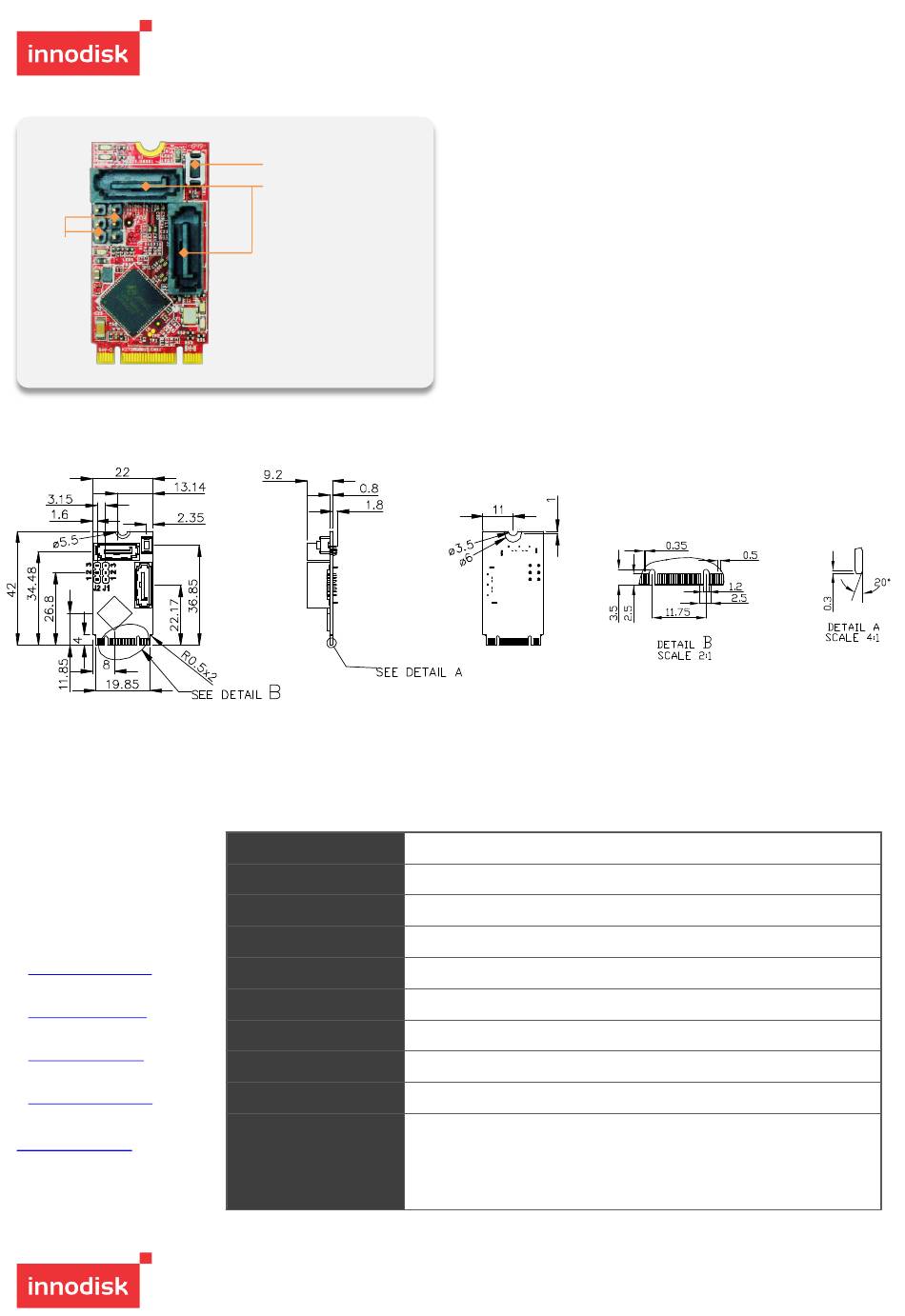

Mechanical Drawing
SW1
Headquarters (Taiwan)
5F., No. 237, Sec. 1, Datong Rd.,
Xizhi Dist., New Taipei City 221,
Taiwan
Tel: +886-2-77033000
Email: sales@innodisk.com
Branch Offices:
USA
usasales@innodisk.com
+1-510-770-9421
Europe
eusales@innodisk.com
+31-040-282-1818
Japan
jpsales@innodisk.com
+81-45-594-7581
China
sales_cn@innodisk.com
+86-755-21673689
www.innodisk.com
© 2014 Innodisk Corporation.
All right reserved. Specifications
are subject to change without
prior notice.
June 26, 2015
Tact switch
SATAIII 7pin male
Specifications
Form-Factor
Input I/F
Output I/F
Output Connector
Bridge
TDP
Dimension (WxLxH)
Temperature
Environment
Notes
Order information
EGSS-32R1-C1
M.2 to Dual SATA III RAID Module
Features
−Supports SATA to dual SATA III Port Multiplier.
−Supports H/W RAID 0/1 over SATA.
−30µ golden finger, 3 years warranty.
−Industrial design, manufactured in innodisk Taiwan
M.2 2242-B-M
SATA III
SATA III
SATA 7pin x 2
JMS562
1.65W (3.3V x 498mA)
22 x 42 x 11mm, Weight: 5.5g
Operation: STD: 0°C ~ +70°C Storage: -55°C ~ +95°C
Vibration: 5G @7~2000Hz, Shock: 50G @ 0.5ms
1. RAID Mode Setting:
[J2:J1]
RAID0: 23:23, RAID1: 23:12, PM: 12:12
2. Press tact switch SW1 for reset.
