Summary of Contents for TruHearing TH 6 RIC LI

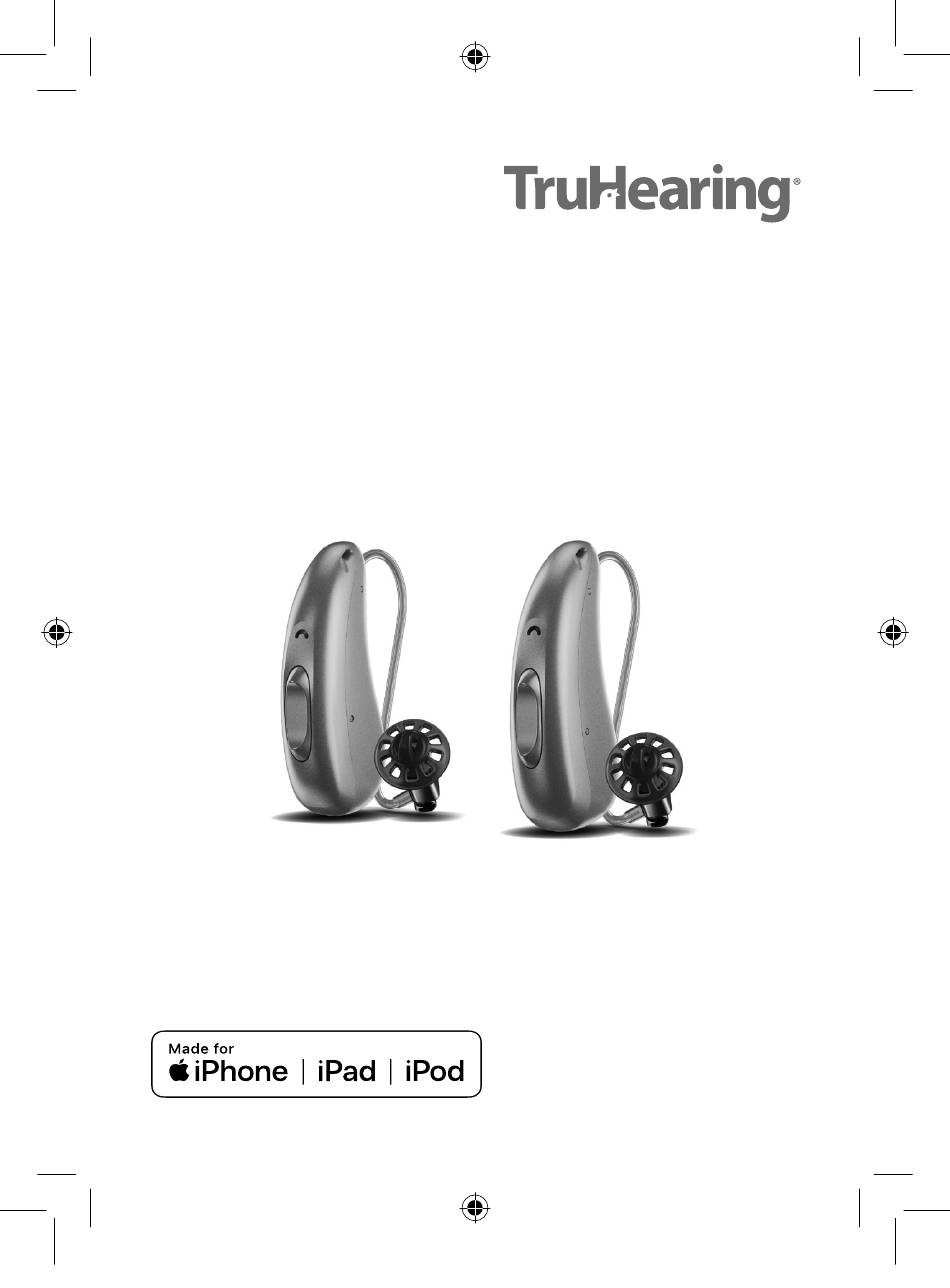

- Page 1 TH 6 RIC LI TH 6 RIC LI T Guide for Hearing Care Professionals TH 6 RIC LI (T) Dispenser EN.indd 1 TH 6 RIC LI (T) Dispenser EN.indd 1 28-07-2021 14:22:17 28-07-2021 14:22:17...
-
Page 2: Table Of Contents
Content Introduction Before and after fitting Assembling Activating Charging Connecting Noting the serial number Replacing the housing Disassembling Assembling Important safety information Defective power cells Further information Storage periods Cleaning Symbols used in this document TH 6 RIC LI (T) Dispenser EN.indd 2 TH 6 RIC LI (T) Dispenser EN.indd 2 28-07-2021 14:22:17 28-07-2021 14:22:17... -
Page 3: Introduction
It is important to read this guide, the user guide and the safety manual thoroughly. Follow the safety information to avoid damage or injury. TH 6 RIC LI (T) Dispenser EN.indd 3 TH 6 RIC LI (T) Dispenser EN.indd 3 28-07-2021 14:22:17... -
Page 4: Before And After Fitting
Attach a suitable ear piece to the suitable receiver unit. Attach the receiver unit to the hearing instrument by clicking it in place. Attach the optional retention strand: Align the end of the retention strand with the flat end of the receiver. Then press the retention strand towards the receiver until it clicks into place. TH 6 RIC LI (T) Dispenser EN.indd 4 TH 6 RIC LI (T) Dispenser EN.indd 4 28-07-2021 14:22:17 28-07-2021 14:22:17... -
Page 5: Activating
A ctivating Before first use or first fitting you have to activate the hearing instruments by putting them into the charger. Wait until the first green LED lights up. Note: ● Hearing instruments that are activated and not used may discharge faster than hearing instruments that have not been activated. Only activate the hearing instruments before first use or first fitting. TH 6 RIC LI (T) Dispenser EN.indd 5 TH 6 RIC LI (T) Dispenser EN.indd 5 28-07-2021 14:22:18 28-07-2021 14:22:18... -
Page 6: Charging
Charging The hearing instruments are pre‑charged on delivery. They should have sufficient power for a first fitting session. We recommend to fully charge the hearing instruments before first fitting and handover to the client. A full charging cycle takes approximately 4 hours. Follow the operating conditions in both the hearing instrument's and the charger's user guide. Connecting Use Noahlink Wireless to fit the hearing instruments wirelessly. TH 6 RIC LI (T) Dispenser EN.indd 6 TH 6 RIC LI (T) Dispenser EN.indd 6 28-07-2021 14:22:18 28-07-2021 14:22:18... -
Page 7: Noting The Serial Number
Both serial number and performance level are printed on the frame. When a hearing instrument is returned from our service, check the serial number on the frame. For TH 6 RIC LI: ● Press the lower part of the rocker switch and remove this from the top. For TH 6 RIC LI T with telecoil: ● Press the upper part of the rocker switch and remove this from the bottom. See illustration. TH 6 RIC LI (T) Dispenser EN.indd 7 TH 6 RIC LI (T) Dispenser EN.indd 7 28-07-2021 14:22:18 28-07-2021 14:22:18... - Page 8 Note: If you press the lower part of the rocker switch more than 3 seconds, the hearing instrument may turn on. After reasembly you can turn off the hearing instrument by a long press to the upper part of the rocker switch. TH 6 RIC LI (T) Dispenser EN.indd 8 TH 6 RIC LI (T) Dispenser EN.indd 8 28-07-2021 14:22:18 28-07-2021 14:22:18...
- Page 9 Note: When you reassemble the rocker switch, make sure to face this correctly. The arrow underneath should face towards the microphone (upwards) as illustrated. TH 6 RIC LI (T) Dispenser EN.indd 9 TH 6 RIC LI (T) Dispenser EN.indd 9 28-07-2021 14:22:18 28-07-2021 14:22:18...
-
Page 10: Replacing The Housing
R eplacing the housing NOTICE This maintenance task must be performed by the Hearing Care Professional. D isassembling Remove the receiver unit and the axles. Detach the top housing as shown. TH 6 RIC LI (T) Dispenser EN.indd 10 TH 6 RIC LI (T) Dispenser EN.indd 10 28-07-2021 14:22:19 28-07-2021 14:22:19... - Page 11 Remove the bottom housing as shown. For TH 6 RIC LI T you may need to insert a tool into the blind hole. TH 6 RIC LI (T) Dispenser EN.indd 11 TH 6 RIC LI (T) Dispenser EN.indd 11 28-07-2021 14:22:19 28-07-2021 14:22:19...
-
Page 12: Assembling
Assembling Install the bottom housing. Install the top housing from the front. TH 6 RIC LI (T) Dispenser EN.indd 12 TH 6 RIC LI (T) Dispenser EN.indd 12 28-07-2021 14:22:19 28-07-2021 14:22:19... - Page 13 Attach the axles. Note the different lengths and diameters of the axles. Attach the receiver unit. TH 6 RIC LI (T) Dispenser EN.indd 13 TH 6 RIC LI (T) Dispenser EN.indd 13 28-07-2021 14:22:20 28-07-2021 14:22:20...
-
Page 14: Important Safety Information
There is physical sign of deformation caused by bloated power cell inside. ● There is visible leakage from the power cell. ● Product is generating heat on its own or hot to the touch. TH 6 RIC LI (T) Dispenser EN.indd 14 TH 6 RIC LI (T) Dispenser EN.indd 14 28-07-2021 14:22:20 28-07-2021 14:22:20... - Page 15 Please record the serial number of the hearing instrument, take a photo of the damages, and consult with the Customer Service team before disposal of the product according to local regulations. TH 6 RIC LI (T) Dispenser EN.indd 15 TH 6 RIC LI (T) Dispenser EN.indd 15 28-07-2021 14:22:20 28-07-2021 14:22:20...
-
Page 16: Further Information
Points out a situation that could lead to serious, moderate, or minor injuries. Indicates possible property damage. Advice and tips on how to handle your device better. TH 6 RIC LI (T) Dispenser EN.indd 16 TH 6 RIC LI (T) Dispenser EN.indd 16 28-07-2021 14:22:21 28-07-2021 14:22:21... - Page 17 TH 6 RIC LI (T) Dispenser EN.indd 17 TH 6 RIC LI (T) Dispenser EN.indd 17 28-07-2021 14:22:21 28-07-2021 14:22:21...
- Page 18 TH 6 RIC LI (T) Dispenser EN.indd 18 TH 6 RIC LI (T) Dispenser EN.indd 18 28-07-2021 14:22:21 28-07-2021 14:22:21...
- Page 19 TH 6 RIC LI (T) Dispenser EN.indd 19 TH 6 RIC LI (T) Dispenser EN.indd 19 28-07-2021 14:22:21 28-07-2021 14:22:21...
- Page 20 Document No. 04792-99T01-7600 EN Order/Item No. 210 132 94 Master Rev01, 07.2021 © 07.2021, TruHearing Inc. All rights reserved www.truhearing.com TH 6 RIC LI (T) Dispenser EN.indd 20 TH 6 RIC LI (T) Dispenser EN.indd 20 28-07-2021 14:22:22 28-07-2021 14:22:22...
