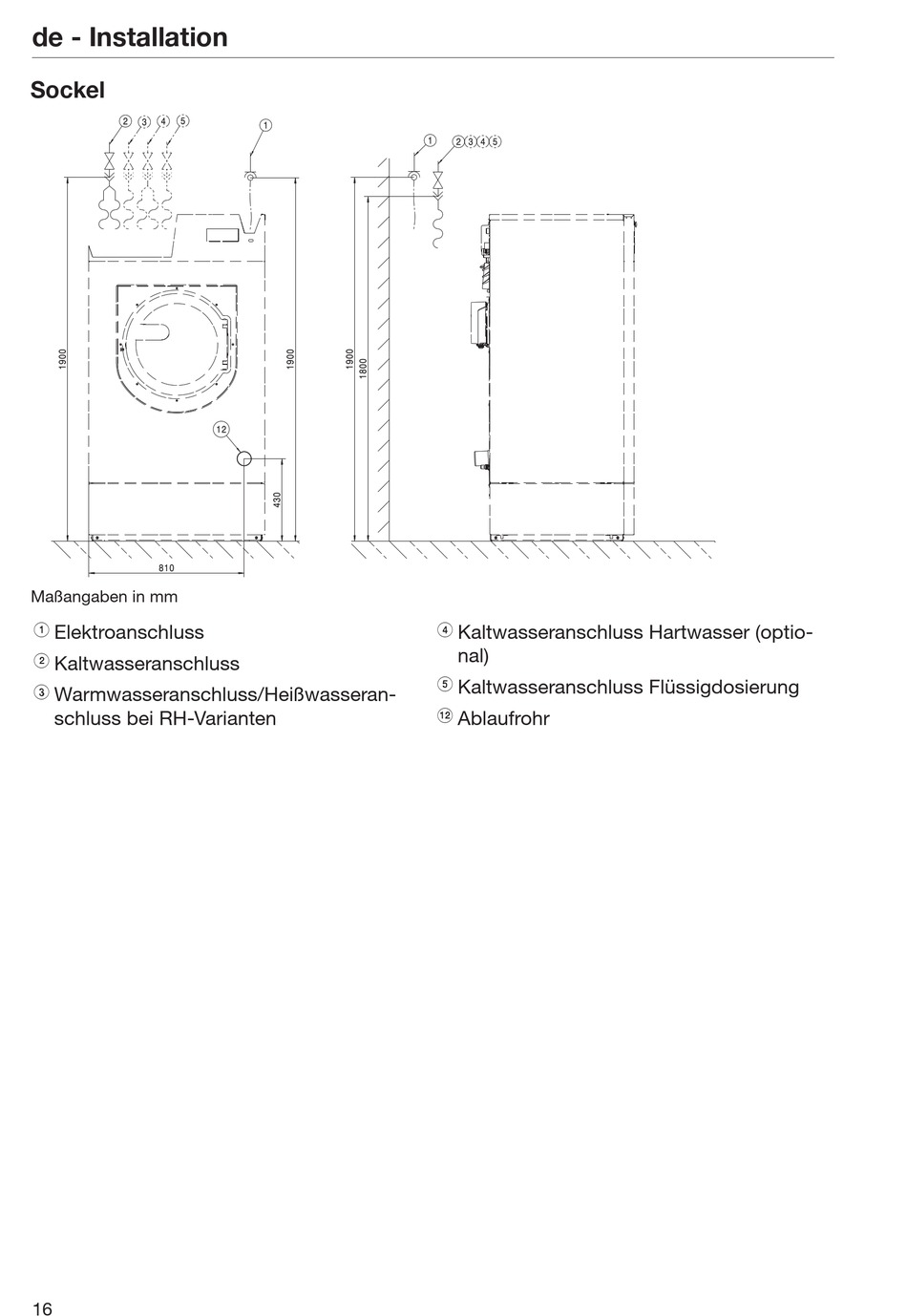

de - Installation

Sockel

Maßangaben in mm
a
Elektroanschluss
b
Kaltwasseranschluss
c
Warmwasseranschluss/Heißwasseran-
schluss bei RH-Varianten
16
d
Kaltwasseranschluss Hartwasser (optio-
nal)
e
Kaltwasseranschluss Flüssigdosierung
l
Ablaufrohr
