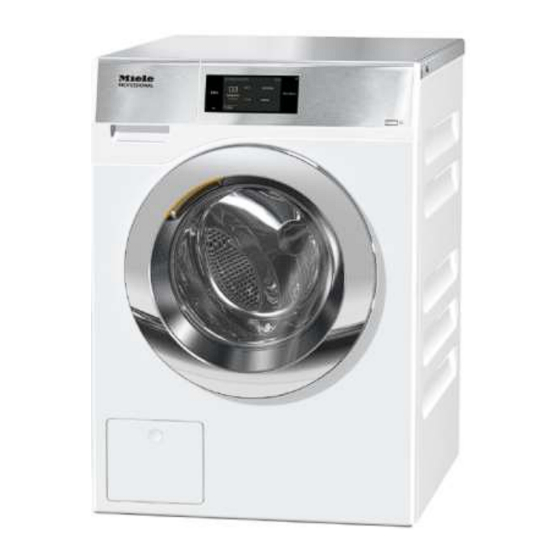

Miele PWM 908 DV Installations Plan

Hide thumbs

Advertisement

Quick Links

Installation Plan
Washing Machine
PWM 908 DV/DP
en-US
Always read the operating and installation instructions before
setting up, installing, and commissioning the machine.
This prevents both personal injury and damage to the machine.
11 282 580/00

Advertisement

loading

  Summary of Contents for Miele PWM 908 DV

  • Page 1 Installation Plan Washing Machine PWM 908 DV/DP en-US Always read the operating and installation instructions before setting up, installing, and commissioning the machine. This prevents both personal injury and damage to the machine. 11 282 580/00...
  • Page 2 Please have the model and serial number of your machine available when contacting Technical Service. U.S.A. Miele, Inc. National Headquarters 9 Independence Way Princeton, NJ 08540 Phone: 800-991-9380 Fax: 609-419-4241 www.miele-pro.com proinfo@mieleusa.com Technical Service & Support Phone: 800-991-9380 Fax: 800-220-1348 proservice@mieleusa.com...
  • Page 3: Machine Dimensions

    PWM 908 en-US Machine dimensions 11 282 580/00...
  • Page 4: Installation

    PWM 908 en-US Installation WW KW WW KW WW KW WW KW UO UG UO UG 11 282 580/00...
  • Page 5: Washer-Dryer Stack

    PWM 908 en-US Washer-dryer stack WW KW APCL APCL 11 282 580/00...
  • Page 6 PWM 908 en-US Installation 145,5 145,5 145,5 145,5 11 282 580/00...
  • Page 7 PWM 908 en-US Installation UO UG UO UG UO UG UO UG 11 282 580/00...
  • Page 8: Technical Data

    PWM 908 en-US Technical data PWM 908 DV PWM 908 DP Drum volume gal (l) 19.3 (73) 19.3 (73) Capacity lb (kg) 17.6 (8.0) 17.6 (8.0) Door opening diameter inch (mm) 11 13/16" (300) 11 13/16" (300) Max. spin speed...
  • Page 9 Technical data PWM 908 DV PWM 908 DP V a r i a t i o n s i n t h e f o l l o w i n g c o u n t r i e s :...
  • Page 10 PWM 908 en-US Technical data PWM 908 DV PWM 908 DP Alternative voltage (convertible) 2N AC 400 V 2N AC 400 V Total rated load Fuse rating (B trip rating according to EN 60898) 2 x 16 2 x 16 Power cord min.
  • Page 11 (mm) 8 x 40 8 x 40 Anchoring of Miele Plinths   Accessory: Miele Plinth installation (fasteners included) Required anchor points Wood screws according to DIN 571 inch (mm) 8 x 65 8 x 65 Rawl plugs (diameter x length)
  • Page 12 PWM 908 en-US Technical data PWM 908 DV PWM 908 DP M a c h i n e d a t a 33 5/8"/23 13/16"/28 1/8" 33 5/8"/23 13/16"/28 1/8" Overall machine dimensions (H/W/D) inch (mm) (854/605/714) (854/605/714) 33 7/16"/23 7/16"/26 33 7/16"/23 7/16"/26...
  • Page 13: Installation And Planning Notes

    Longer hoses 8' 2 1/2" or 13' 1 1/2" (2.5 m or 4.0 m) in length are machine is to be moved again (e.g., when moving house). available from Miele Technical Service or from your Miele dealer as accessories. General operating conditions Hot water connection Ambient temperature in installation room: +36°F to +95°F (+2°C to...
  • Page 14 The washing machine can be installed on a machine plinth (open or Service. box plinth, available as an optional Miele accessory) or on a concrete For a drain height of more than 3' 3 3/8" (1 m) up to a max. of 1.6 m), plinth to be provided on site.
