1 - 3-way hydraulic valve
2 - Gas valve
3 - System filling valve
4 - Flue safety thermostat
5 - Flue hood
6 - Overheat safety thermostat
1 - Boiler thermo-pressure gauge
2 - Flame presence yellow indicator lamp
3 - Boiler block led indicator lamp
4 - 0/SUMMER/WINTER/RESET switch
STNME ed 07/03

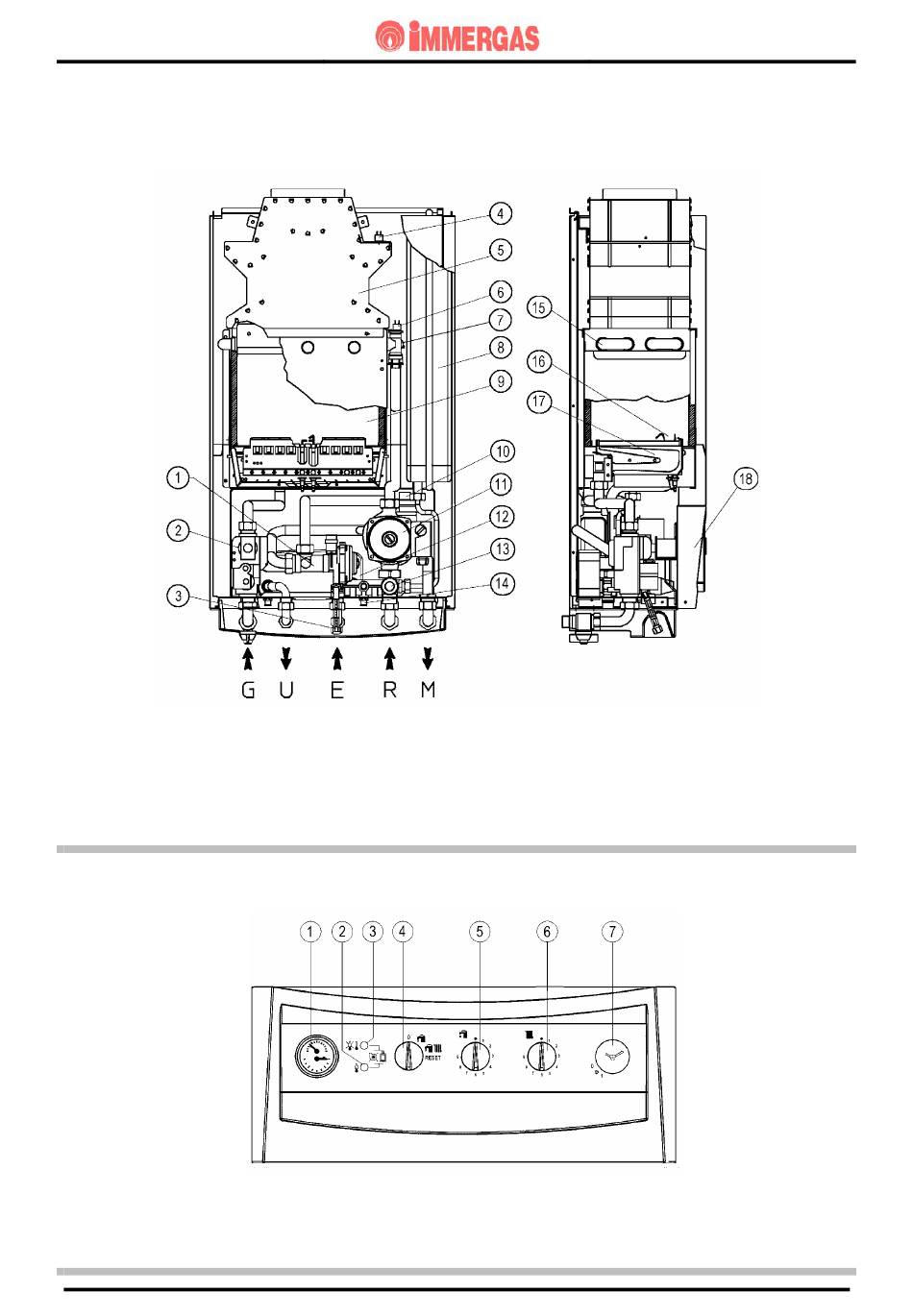

MAIN COMPONENT PARTS
(from serial number 2243651)
7 - Adjustment and limit NTC sensor
8 - Expansion vessel
9 - Combustion chamber
10- Automatic air vent valve
11- Circulating pump
12- D.h.w. exchanger
(105 ºC)

CONTROL PANEL

3
Technical documentation
13- 3-bar safety valve
14- System drain valve
15- Primary heat exchanger
16- Ignition and detection electrodes
17- Burner
18- Control panel
5 - D.h.w. temperature selector
6 - Central heating temperature selector
7 - Programmer clock hole plate
NIKE MINI
