- BURNER

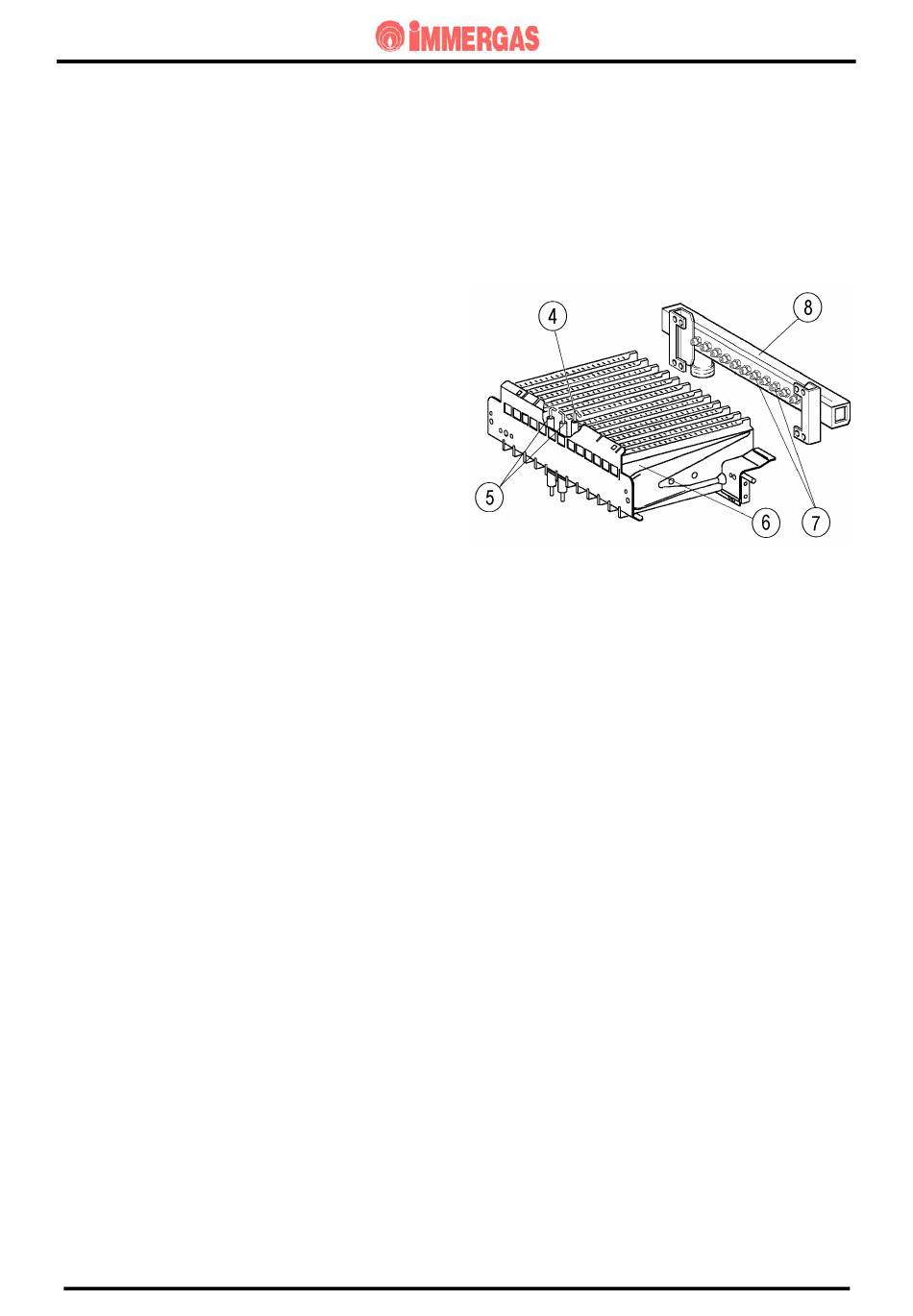

From serial number 1618839 the burner consists of 12 horizontal venturi pipes (6) (ramps were
previously 11) in which the gas is injected by an equal number of nozzles (7) mounted on the special
collector (8).
Ignition occurs by means of the adjustment board which controls the ignition electrodes (5) and detection
electrode (4).
Ignition electrodes (5)
These is controlled by the ignition circuit of the
adjustment board which produces an electrical
charge that ignites the air-gas mix.
They are positioned on the front of the burner in
line with the centre ramp.
Detection electrode (4)
This is controlled by the adjustment board and
detects burner ignition.
It is positioned on the front of the burner on the
ramp alongside the ignition electrodes.
12
STNME ed 07/03
NIKE MINI
