Technical documentation
1 - Adjustment and limit NTC sensor
2 - 3-way hydraulic valve
3 - Gas valve
4 - System filling valve
5 - Flue safety thermostat
6 - Flue hood
7 - Exchanger overheat safety (115 ºC)
STNME ed 07/03

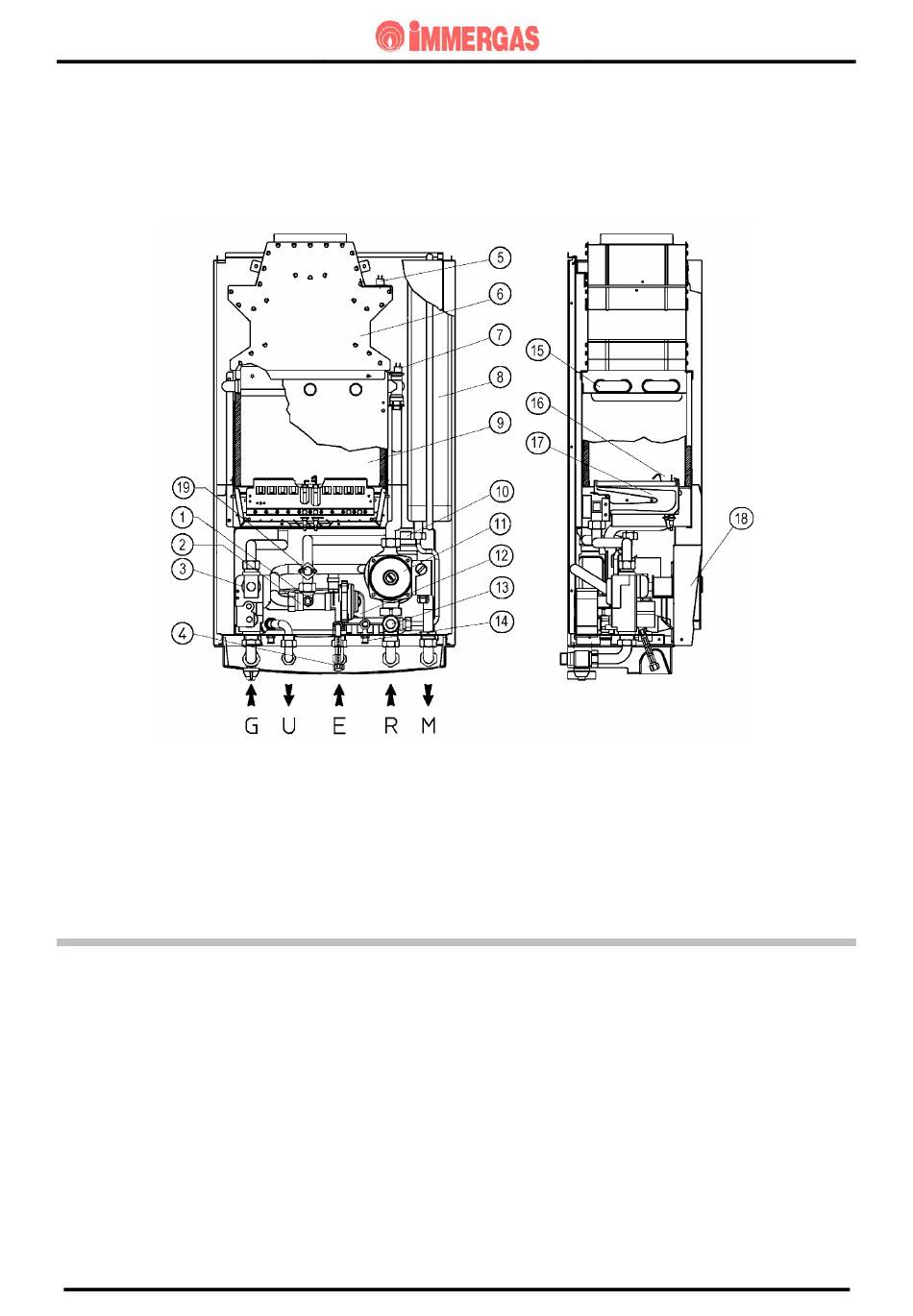

MAIN COMPONENT PARTS
(until serial number 2243650)
8 - Expansion vessel
9 - Combustion chamber
10- Automatic air vent valve
11- Circulating pump
12- D.h.w. exchanger
13- 3-bar safety valve
14- System drain valve
2
Technical documentation
15- Primary heat exchanger
16- Ignition and detection electrodes
17- Burner
18- Control panel
19- Overheat safety thermostat (100 ºC)
NIKE MINI
