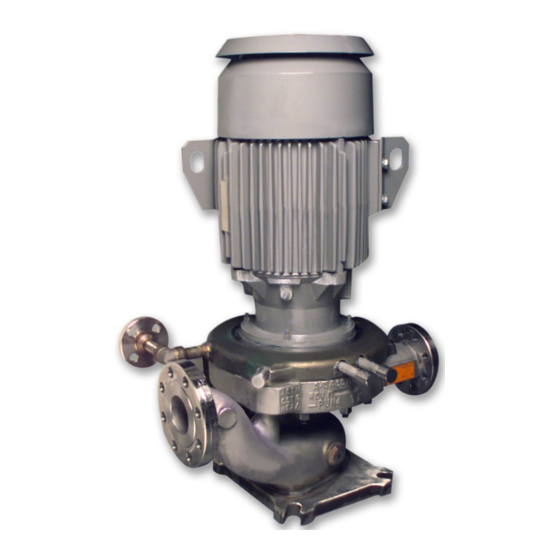

- Page 1 SUNDYNE LMV-806 PUMPS Instruction and Operation Manual August 2007 Visit our website at www.sundyne.com SA-07-11-38, Rev Orig Aug 2007...
- Page 2 Warranty Sundyne Corporation warrants to Buyer for a period of twelve (12) months from the date of being placed in service (but not to exceed eighteen (18) months after the date of shipment) that the equipment at the time of shipment will be free from defects of design, material and workmanship.
- Page 3 SA-07-11-38, Rev Orig Aug 2007...
-
Page 4: Introduction And Safety
Note: Safety procedures must be applied prior to any installation, maintenance, When using more than one piece of protective or repair of a Sundyne pump. Failure to equipment, consider their compatibility. For follow safety precautions may lead to example, safety glasses will not interfere with injury! hearing protection equipment. -
Page 5: Explosion/Fire Hazard
CAUTION CAUTION Note: Follow company fall prevention Note: Sundyne recommends that a Lock- procedures prior to working on out/Tag-out program be followed prior equipment. to altering the equipment. Locks or tags must be provided to warn... -
Page 6: Installation
If provisions for long term storage (periods in excess of 4. SEAL ENVIRONMENTAL CONTROL SYSTEM six months) are required and have not been made prior to shipment of the unit, contact your Sundyne repre- Depending upon the pump seal arrangement and sentative for recommendations on storage procedures. - Page 7 SA-07-11-38, Rev Orig Aug 2007...
- Page 8 SA-07-11-38, Rev Orig Aug 2007...
- Page 9 SA-07-11-38, Rev Orig Aug 2007...
- Page 10 SA-07-11-38, Rev Orig Aug 2007...
- Page 11 SA-07-11-38, Rev Orig Aug 2007...
- Page 12 SA-07-11-38, Rev Orig Aug 2007...
- Page 13 SA-07-11-38, Rev Orig Aug 2007...
- Page 14 SA-07-11-38, Rev Orig Aug 2007...
- Page 15 SA-07-11-38, Rev Orig Aug 2007...
- Page 16 SA-07-11-38, Rev Orig Aug 2007...
- Page 17 SA-07-11-38, Rev Orig Aug 2007...
- Page 18 STEP 13 STEP 14 SA-07-11-38, Rev Orig Aug 2007...
- Page 19 Table 3. Torque Values Gearbox Sundyne Standard Steel Screws & Bolts and NACE Compliant Steel Screws/Bolts (BG Material) Torque Values Item # Location Size English Metric 905H Oil Filter Manifold 3/8 - 16 x 1/2 22 - 25 ft-lbs 30 - 34 N-m...
-
Page 20: Parts List
Sundyne Corporation. The use of these kits basic features of a standard LMV-806 pump. reduces maintenance time, prevents assembly Refer to your Sundyne specification sheet for mistakes, simplifies stocking and inventory and those options applicable to your pump. - Page 21 936H 914B 924D 916S 924D 924D 905A 924B 924D 914A 951W 943A 936A Figure 3. Exploded View of LMV-806 (Single Seal) ITEM ITEM PART NAME QTY. PART NAME QTY. Pump Casing 905A Stud Driver Impeller 905F Hex Head Cap Screw...
- Page 22 SA-07-11-38, Rev Orig Aug 2007...
- Page 23 SA-07-11-38, Rev Orig Aug 2007...
- Page 24 SA-07-11-38, Rev Orig Aug 2007...
- Page 25 SA-07-11-38, Rev Orig Aug 2007...
- Page 26 SA-07-11-38, Rev Orig Aug 2007...
- Page 27 SA-07-11-38, Rev Orig Aug 2007...
- Page 28 SA-07-11-38, Rev Orig Aug 2007...
- Page 29 SA-07-11-38, Rev Orig Aug 2007...
- Page 30 SA-07-11-38, Rev Orig Aug 2007...
- Page 31 Sundyne Europe • Dijon (Longvic) • France • +33 (0) 3.80.38.33.00 • FAX: +33 (0)3.80.38.33.66 Sundyne Nikkiso • 27-10, Ebisu 2-Chome, Shibuya-Ku • Tokyo 150-0013, Japan • +81-3-3444-6475 • FAX: +81-3-3444-6806 ANSIMAG • ANYSPEED • CASTER • GSP • HMD/KONTRO • MASO/SINE • SUNDYNE COMPRESSORS • SUNDYNE • SUNFLO SA-07-11-38, Rev Orig...
