DUAL-FORCE KNOB INSTALLATION:
1) Place the label (HXD752) into the knob (HXD560).
2) Add o-ring (VO-005) to o-ring groove on top of the baffl e (HXD561) and groove.
3) Place the knob onto the Baffl e fully.
4) Install the Compression Spring (VM4195) and Torlon Ball (VB156TO).
5) Push down on Compression Spring and Torlon Ball and twist the Knob counter-
clockwise till it clicks in place.
6) Check for smooth operation between standard and low pressure settings.
PROBLEMS:
If you have any questions or problems, please call for assistance.
(800) 348-2686 • (219) 462-6161 • FAX (219) 464-0620
TASK FORCE TIPS INC. - www.tft.com
3701 Innovation Way • Valparaiso, IN 46383-9327

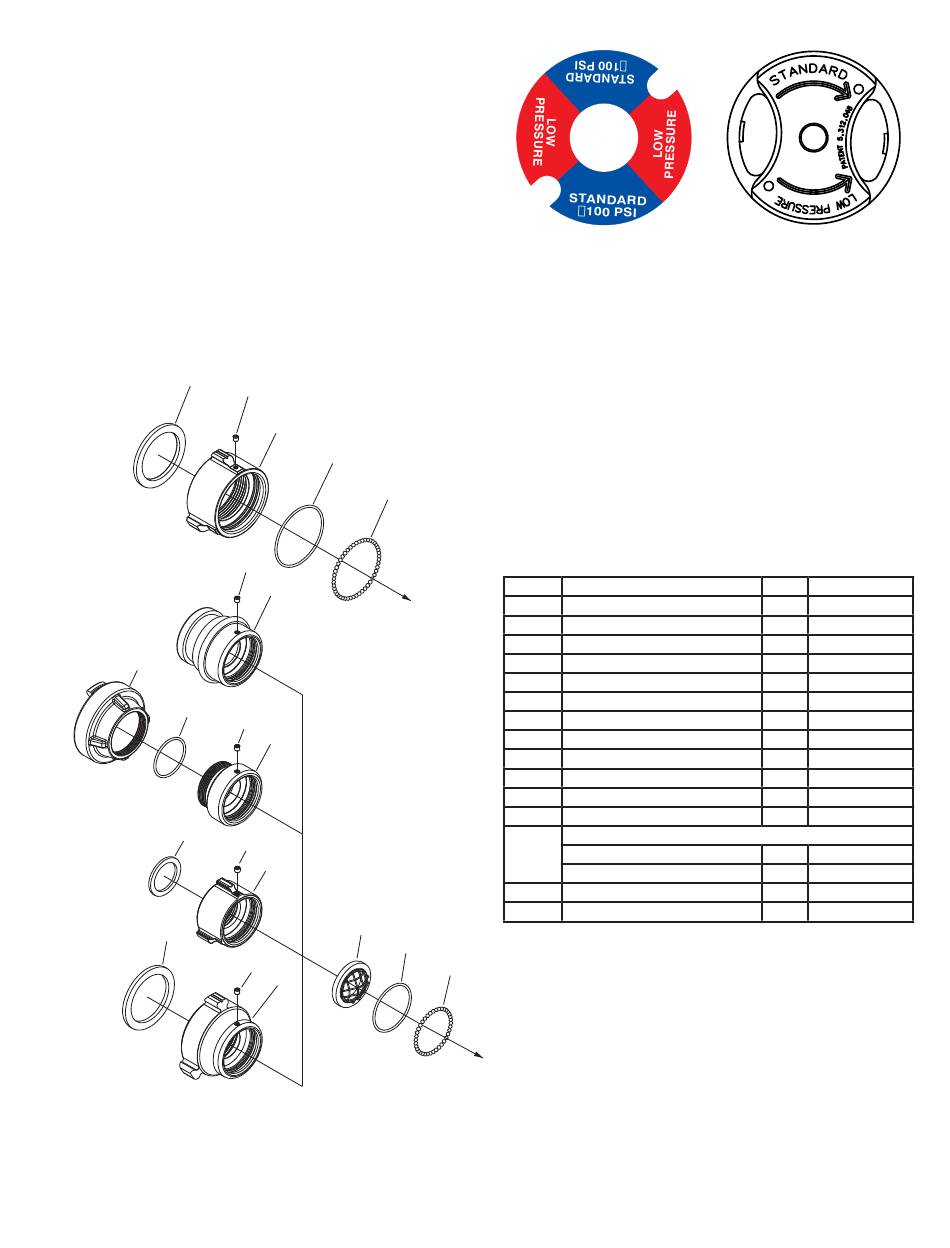

EXPLODED VIEWS and PARTS LISTS

1c
2-1/2"
ROCKER LUG
BRITISH
INSTANTAEOUS
7c
8c
STORZ
10c
1-1/2" FULL-TIME
ROCKER LUG
1c
2-1/2" LOCKOUT
ROCKER LUG
©Copyright Task Force Tips, Inc. 2003 - 2010
5c
2c
3c
4c
5c
6c
To 2-1/2
BLITZ BASE
ONLY
5c
9c
5c
11c
13c
14c
5c
12c
To ALL BASE and
SLIDE VALVE PARTS
(except 2-1/2 Blitz Base)
HXD752 Label
FIGURE 1
INDEX DESCRIPTION
1c 2.5" HOSE GASKET
2c 2.5" ROCKER LUG COUPLING
3c O-RING-151
4c 3/16 SS BALLS
5c 1/4-28X3/8 SOCKET SET
6c 2.5" BIC COUPLING
7c 52 MM STORZ COUPLING
8c O-RING-134
9c 2.0" BSP MALE SWIVEL
10c 1.5" COUPLING GASKET
11c 1.5" ROCKER LUG COUPLING
12c 2.5" ROCKER LUG COUPLING
13c 1.5" HARD GASKET GRABBER
SINGLE
DUAL FORCE
14c O-RING-141
15c 3/16 SS BALLS
15c
3
HXD560 Knob
FIGURE 2
QTY PART #
1 V3190
1 P197
1 VO-151
48 V2120
1 VT25-28SS250
1 H687
1 H686
1 VO-134
1 H685
1 V3130
1 H694
1 P198
1 H730-60D
1 HD730-60D
1 VO-141
38 V2120
LIH-020 September 25, 2010 Rev06
