Summary of Contents for TruGolf APOGEE
-
Page 3: Table Of Contents
CONTENTS GETTING STARTED Welcome to APOGEE 1 Packaged Items HARDWARE Overview Installation Wiring GET ACQUAINTED System info 10-12 “Hey APOGEE” Voice Commands 13-14 APOGEE CONTROL CENTER (ACC) Status Tools Support Designed and Assembled in the USA CONTACT CUSTOMER SUPPORT Monday–Friday 9:00 am–5:00pm MST... -
Page 4: Getting Started
• Drill • Stud Finder For users mounting APOGEE in custom, or non- simulator bay environments, additional hardware may be required to achieve functional launch monitor placement. APOGEE must be securely installed between 9’ to 10’ feet above the hitting surface. -
Page 5: Packaged Items
PAPER 3. APOGEE Calibration Template • Use this to complete calibration inside the APOGEE Control Center Software 4. “Hey APOGEE,” Voice Command Instruction • User Guide to the Voice Command feature 5. APOGEE User Guide 6. E6 CONNECT Product Key •... -
Page 6: Hardware

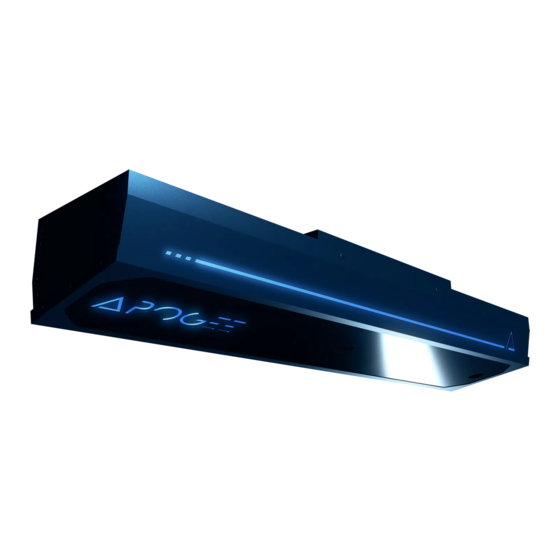

A. Ceiling Bracket B. Mounting Slot C. Mounting Screws D. Cable Inputs E. System Status Indicator (SSI) The APOGEE logo color will change according to status F. System Connection Indicator (SCI) The SCI lightbar will change color upon error G. Center Camera H. - Page 7 HARDWARE FRONT VIEW BACK VIEW...
-
Page 8: Installation
HARDWARE INSTALLATION APOGEE should be installed on a flat, level surface and has to be installed between 9’-10’. The APOGEE mount is threaded and can be attached to a universal projector mount for ceiling heights over 10’ in height. For secure installation, wooden backing is recommended. - Page 9 HARDWARE Measure the distance from the turf to ceiling and use the table below to find your “Tee to APOGEE” distance. Using your “Tee to APOGEE” distance, measure forward from the center of your desired tee location and place a mark on the floor with one of the included Reflective Dots.
- Page 10 The APOGEE Mount ships attached to APOGEE. Detach it from APOGEE by loosening the 4 screws, front and back. DO NOT REMOVE SCREWS Attach the APOGEE Mount using one of the included screws and fender washer through the center hole on the mount to the mark on the ceiling.
-
Page 11: Wiring
Tighten the 2 screws in the front and 2 screws in the back to secure APOGEE to the mount. WIRING Connect the power and the network cable into the back of the APOGEE unit. - Page 12 HARDWARE WIRING CONT’D...
-
Page 13: Get Acquainted
APOGEE RESET TO DEFAULTS – Resets APOGEE Launch Monitor to its original factory settings. USER PREFERENCES • APOGEE Laser Indicator – Users can enable or disable this feature • HEY APOGEE Voice Command System– Users can enable or disable this feature STATUS –... - Page 14 STATUS AND SUPPORT for diagnosis SYSTEM CONNECTION INDICATOR (SCI) – This is the LED Indicator inside the APOGEE Text on the face plate of the APOGEE Launch Monitor. • Orange – System Booting • Yellow – Searching for Connection •...
- Page 15 This is the camera in the center of the APOGEE Launch Monitor. OFFSET CAMERA This is the camera offset from the center of the APOGEE Launch Monitor. MICROPHONE The Microphone is located in the center of the APOGEE Launch Monitor.
-
Page 16: Hey Apogee" Voice Commands
“HEY APOGEE” VOICE COMMANDS COMMAND KEYWORDS Activate Voice Commands • Hey APOGEE Cancel Voice Command • Cancel Resume Play • Resume Confirmation - Yes • Yes • Yeah • Yep Confirmation - No • No • Nope Show Club Select Menu •... - Page 17 “HEY APOGEE” VOICE COMMANDS COMMAND KEYWORDS Next Hole • Next Hole • Confirmation Show Analyzer • Analyzer Show Scorecard • Scorecard Rehit • Rehit • Confirmation Hole Preview • Hole Preview Pickup • Pickup • Confirmation Practice • Practice Change Camera Aim •...
-
Page 18: Apogee Control Center (Acc)
CALIBRATION Launches the Automated Calibration Wizard (ACW). Enabling Calibration will check installation alignment and adjust apertures for ambient light in the area. The ACW guides APOGEE owners through any necessary next steps. STATUS See real-time status of network connections, the camera system, and the internal temperature of your APOGEE Launch Monitor. -
Page 19: Status
APOGEE Control Center (ACC) STATUS NETWORKING SYSTEM • Internet Connection - connected/disconnected • APOGEE Connection - connected/disconnected CAMERA SYSTEM • Center Camera- Online/offline status • Offset Camera- Online/offline status • Cooling System Fan 1 and Fan 2- Online/offline status • Temperature- Lists the live internal temperature of the... -
Page 20: Tools
APOGEE firmware or revert to previous firmware version • APOGEE REBOOT- Reboots the APOGEE device • APOGEE RESET TO DEFAULTS- Resets APOGEE’s calibration settings to factory defaults SYSTEM CONTROLS • Tee Laser- Turn the Laser off/on • Microphone- Turn the Microphone off/on... -
Page 21: Support
APOGEE Control Center (ACC) SUPPORT SYSTEM LOG • REFRESH FEED- Downloads and displays the latest logs from APOGEE • SUBMIT TO TRUGOLF- Submits data logs to the TruGolf Support Team, making them available for review upon submission of a support ticket •... - Page 22 CONTACT CUSTOMER SUPPORT Monday–Friday • 9:00 am–5:00 pm MST Toll Free: 877-711-6691 • Direct Line: 801-677-1123 https://trugolf.com/support...
