Step 3: Assemble the Armrests

Please refer to Fig. (7-8) and follow the steps (1-5) below to
install the armrests.
1. Insert the metal tab on the armrest into the located slot on the
chair frame (Fig. 7, Step 1).
2. Install 2 knob-screws to secure the armrest metal plate onto the
seat frame (Fig. 7, Steps 2).
3. Assemble armrest air connectors (2 pcs). Make sure the color
marks/numbers are matched (Fig. 8, Step 3).
4. Assemble electrical connectors (2 pcs). Make sure the color
marks/numbers are matched and connectors are locked by
tightening the locking nut (Fig. 8, Step 4).
5. Repeat steps (1 thru 4) above for the second armrest assembly.
NOTE: For i9 Max Special, Billionaire, Royal Editions Only,
one USB connector needs to be connected for the wireless
phone charger on the Left Armrest (Fig. 8, Step 5).
1
2
2

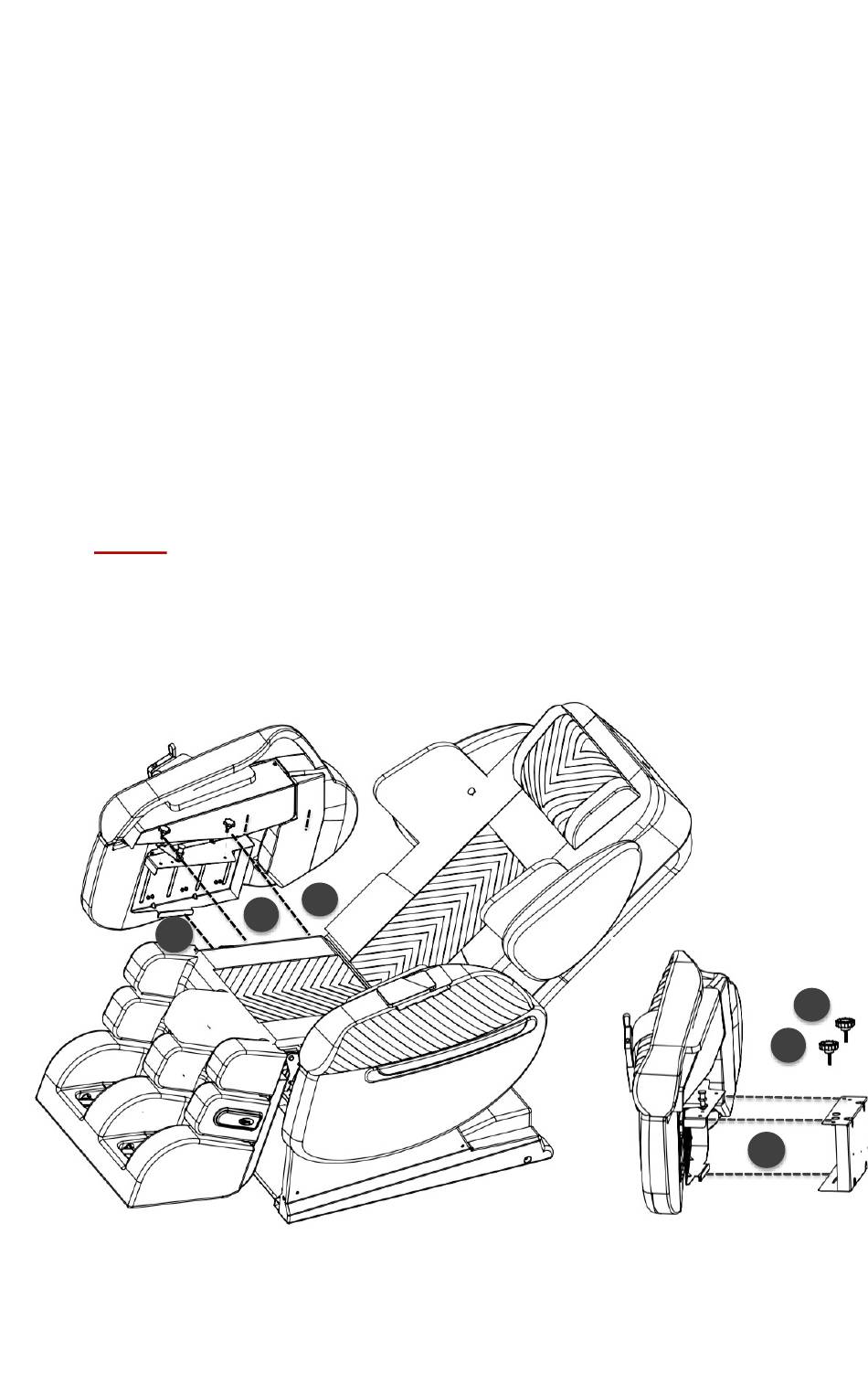

Fig.7: Armrest Installation
13
2
2
1
