- Page 1 MultiDrive 2 Display Controller 8F 2012 Technical description English...
- Page 3 Introduction Olsbergs radio remote control system has been devel- oped to provide operators with continual feedback via its display whenever they activate a lever or button on the hand controller. The hand controller’s standard menu selection system utilises the display to provide the operator with real time information about the chosen menu, battery status, reception conditions etc.
- Page 4 Radio Decoder Controller The radio decoder contains one of the radio units. The hand controller is the device that the operator The decoder translates the radio traffic, consisting uses to control his crane and his vehicle. of lever and button data from the hand controller, to the CAN bus.

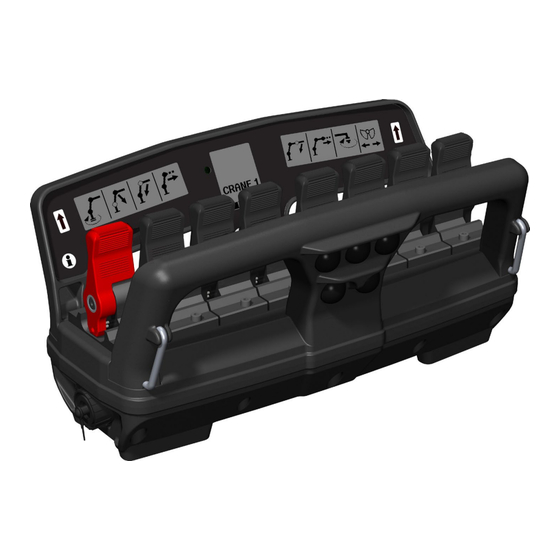

- Page 5 Centre display ”Twilight relay” Side display, left Lever 1 to 8 (display symbol shows direction of operation with lever forward) Side display, right Info button for showing error codes in the centre display Release button Stop button Buttons for main menus CRANE EXTRA ON-OFF Horn Micro...
-
Page 6: Getting Started
Getting started! The procedure for starting the system is described below. INSTALLING THE BATTERY Install a fully-charged battery in the hand controller as shown on the right. (Figure 1) The battery must be installed correctly or the hand con- troller will not start. A fully-charged 1700mAh battery provides approximately 8 hours of operation. -
Page 7: Start Menu
RADIO LINK ESTABLISHED When the radio connection is established the yellow LED on the decoder shines steadily and the green LED blinks rapidly. (Figure 5) The hourglass symbol on the hand controller disap- pears and the text “Wait” (Figure 4) is replaced by “CRANE 1”. -
Page 8: Menu System
Menu system Olsbergs hand controllers are equipped with a In each of the main menus the operator can select sub-menus menu selection system as standard. There are by repeatedly pressing the same button, e.g. 1-2-3 and then three main menus which can be easily accessed back to 1 again. - Page 9 Main menu ”CRANE”, proportional functions The sub-menus in “CRANE” mode are configured The symbols are stored in a symbol library. If the library does when the crane is fitted to the vehicle. The right and not contain the required symbol, a description of the function left side displays show symbols representing the can be written instead.
- Page 10 Main menu ”EXTRA”, proportional functions The “EXTRA” main menu contains additional Here too, there is a symbol or text describing the function hydraulic proportional functions that do not being used; the symbol is logically positioned in relation to belong to the crane itself, such as outriggers the lever.
- Page 11 Main menu ”ON-OFF”, on-off functions The “ON-OFF” main menu contains functions such The hand controller is prepared for the use of symbols as start, stop and throttle. for the ON-OFF functions. Only Arabic numerals and The functions are configured at the bodybuilder. the English alphabet can be used in the descriptions.
- Page 12 Centre display, view modes The centre display is the system’s information centre. It shows information that is not directly related to the crane’s operation. The symbols used for this information are described in detail below. The image to the right shows the appearance of the centre display during normal radio controlled operation of the crane.
-
Page 13: Fault Indication
INDICATION OF MICRO / SRVC / MEWP /ADC / JDC / HDC / MANUAL EXTENSION When one of the above functions is selected the symbol is enlarged (Figure 1a) for 3 seconds before returning to its normal size (Figure 1b) so as to alert the operator that a change has occurred. - Page 14 Overload protection ”OLP”, warning signals Outer boom up Inner boom Extension out blocked 100% blocked Jib up blocked Extension jib blocked Figure 1 Outer boom up blocked Extension out blocked Jib up Extension jib blocked blocked Olsbergs hand controllers can provide informa- VSL-OLP tion about the pressure in cylinders equipped VSL-OLP means that the stability limit of the crane/vehicle...
- Page 15 Configuration BLOCKING ON MAX LOAD/RELEASE The hand controller must be configured specifically for the particular crane or vehicle if it is to show the When a function has been blocked due to an OLP, a correct symbol or text. cross is shown in the relevant lever’s display when an attempt is made to activate it.
-
Page 16: Other Instructions
Other instructions LOCKING/UNLOCKING THE HAND CONTROLLER The hand controller can be locked to prevent unauthorised persons, such as children, from starting the hand controller and operating the crane. (Figure 1) Locking the hand controller - Press the EXTRA button and the ON-OFF button when the stop button is pressed in. -
Page 17: Cable Control
CABLE CONTROL ENGAGE MANUAL EXTENSION The hand controller is normally used in radio mode This function must be activated so that the safety system but it is also possible to operate it via a cable. can calculate the capacity when manual extension is used. This is done by pressing the release and horn buttons at A four-metre cable (E0781) is supplied as standard with the same time until the manual extension symbol appears... - Page 18 Controller - MD2 8F Spare parts Part N Description Note 1287 Controller MD2 8f E1370 Handle, Display MD2 8f complete E1371 Handle, Push button MD2 8f complete E1372 Controller MD2 8f, Top incl. levers E1373 Controller MD2 8f, Bottom incl. stop button, contact chassis and cap 0498 Lever, Black incl.
- Page 19 Decoder / Radio - MD2, MDMMX Spare parts EXTERIOR INTERIOR Part N Description Note 1296 Decoder / Radio MD2, MDMMX incl. aerial S3152 Screw M6x40 MC6S S2556 O-ring Ø5,28x1,78 NBR 70 S3183 Aerial, ½ wave lentgh RSMA S2948 O-ring Ø8.0*3.0 EPDM E0854 Strapped plug, decoder...
- Page 20 Olsbergs Electronics AB Box 267 SE-186 24 VALLENTUNA, Sweden Phone: +46 (0)8-511 858 50 E-mail: electronics@olsbergs.se Olsbergs Hydraulics AB Box 17 SE-575 21 EKSJÖ, Sweden Phone: +46 (0)381-150 75 E-mail: hydraulics@olsbergs.se www.olsbergs.se...
