Summary of Contents for MK Martin Meteor

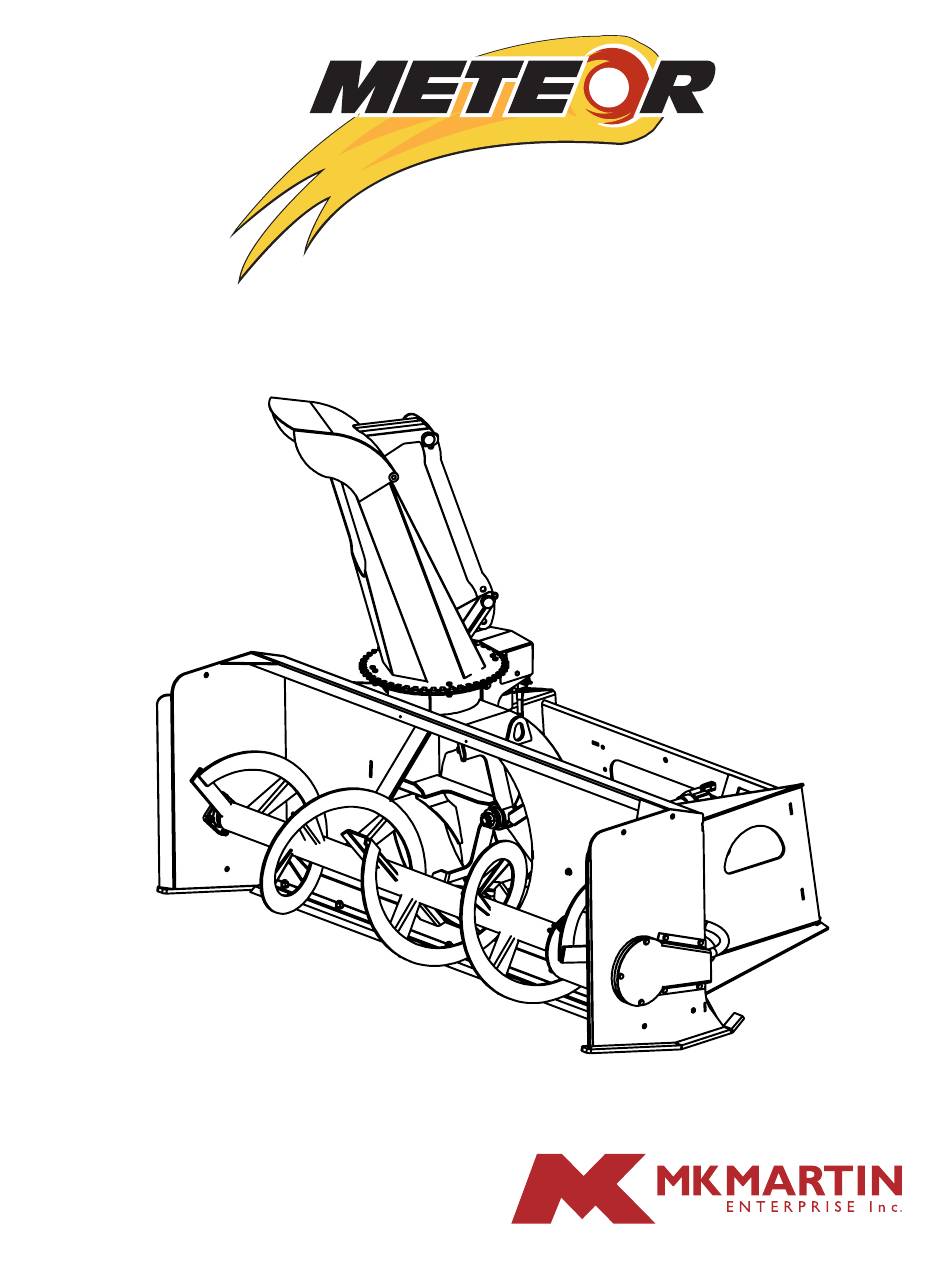

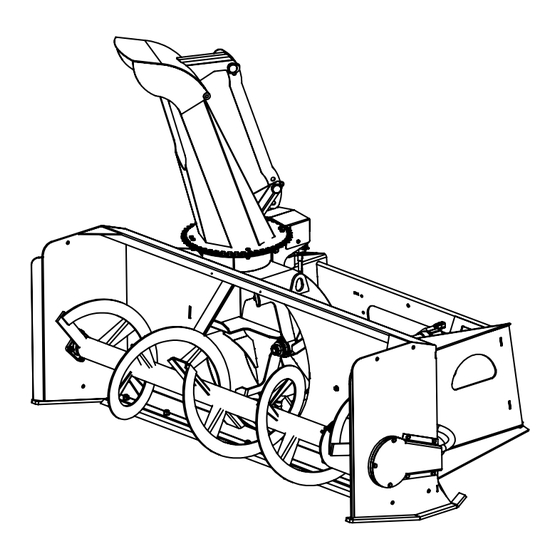

- Page 1 Steer\Blower\SSB 76\76 SS Blower.SLDASM Skid Steer Meteor Snowblower Operator’s / Parts Manual MK Martin Enterprise Inc. 3950 Steffl er Rd Elmira, ON, Canada N3B 2Z3 Tel: 519-664-2752 Toll Free: 1-855-664-2752 Fax: 519-664-3695 E-mail: sales@mkmartin.ca www.mkmartin.ca REV: 17-6...
- Page 2 Intentionally Blank...
-
Page 3: Table Of Contents
------------------------------------------------------------------------------------------------ • Sign Off Sheet ------------------------------------------------------------------------------------- • Decal Location ------------------------------------------------------------------------------------ • Assembling the Snowblower ------------------------------------------------------------------ • Operating the Skid Steer Meteor Snowblower -------------------------------------------- • Main Blower Parts -------------------------------------------------------------------------------- 12-13 14-15 • Electrical Diagrams ------------------------------------------------------------------------------ • Drive Packages “A” - “B” - “B+”... -
Page 4: Warranty
Warranty and Limitations of Liability All equipment is sold subject to mutual agreement that it is warranted by M K Martin Inc. (Here- after called the company) to be free of any defects in material and workmanship. The company shall not be liable for special, indirect or consequential damage of any kind under this con- tract or otherwise. - Page 5 M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3 --------------------------------------------------------------------------------------------------------------------- Purchaser’s warranty protection is valid only when this completed form or a copy of this form is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has acknowledged delivery of equipment and owner’s / operator’s manual and has accepted the condition of the equipment.
-
Page 6: Registration
Warranty Registration Please Cut and Return to M K Martin Enterprise Inc Fold And Tape here Do not tape all edges or use staples Fold Here ------------------------------------------------------------------------------------------------------------------------- Postage Stamp M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3... -
Page 7: Safety
Safety Take Note: This safety symbol is found throughout this manual to call your Attention to instruc- tions involving yourself and others working around the machine. • Failure to follow these instructions can result in Injury or death This Symbol means -- Attention! -- Become Alert! -- Your Safety is Involved! - Page 8 To avoid personal injury, study the following precautions and insist that all those working with you follow them as well. The Meteor Snowblower has a shield covering the auger motor and the hydraulic lines leading to the motor. Do not use with cover loose or missing.
- Page 9 Hydraulic Leak Test Warning! Do not check for high pressure leaks with your hands or fi ngers. Use a piece of cardboard or a thin piece of wood to detect the leak. A high pressure stream of fl uid from a pin hole can penetrate the skin and inject hydraulic fl uid into your blood veins.
-
Page 10: Sign Off Sheet
Sign Off Form M K Martin Enterprise Inc. follows the general Safety Standards specifi ed by the American Society of Agricultural Engineers (ASAE) and the Occupational Health and Safety Administration (OSHA). Anyone who will be operating and/or maintaining the equipment must read and clearly understand ALL Safety Operating and Maintenance instructions presented in this manual. -
Page 11: Decal Location
Skid Steer Decal Location 7- Meteor chute decal. MK logo decal Made in Canada small. 2 pieces 1 piece 2- 244 Avoid fl uid escaping under pressure 8- 224 Keep a safe distance from this Consult technical manual for service machine. -
Page 12: Assembling The Snowblower
Skid Steer Meteor Snowblower Assembly For shipping the chute is not installed on the Snowblower. After receiving the blower unpack the chute and attach it to the blower as shown below. Front of Chute Shield Anti Friction Ring Spacer Lower Retainer... -
Page 13: Operating The Skid Steer Meteor Snowblower
Operation of the Skid Steer Meteor Snowblower This blower is designed to blow snow with a Skid Steer Loader using the hydraulics to power the fan and auger. The chute is controlled with the loader electrics. The blower is a loader attachment and is mounted the same way as all loader attachments. -
Page 14: Main Blower Parts
Solidworks_Elo\Snowblower\Skid Steer\Blower\SSB 76\76 SS Blower.SLDASM Skid Steer Meteor Snowblower Parts Item# Part# Description SSB 62 SSB 66 SSB 76 SSB 86 SSB 96 52770 22556 Washer Folder S:\Solidworks\Solidworks_Elo\Snowblower\Skid Steer\Blower\SS Notes DIMENSIONS ARE IN INCHES TOLERANCES NON SPECIFIED: 21181 Fan Key... - Page 15 Skid Steer Meteor Snowblower Parts Item# Part# Description SSB 62 SSB 66 SSB 76 SSB 86 SSB 96 52731 Anti Friction Ring Bolt 5/16 x 1 1/2 c/w lw,n 34640 Chute 34643 Deflector Cotter Pin 1/8 x 1 SAE Flatwasher 1/2”...
-
Page 16: Electrical Diagrams
Valve Wires Blower Wiring Diagram... - Page 17 Hand Controller Wires DWORKS_ELO\SNOWBLOWER\SKID STEER\ELECTRIC\52739.SLDASM Controller Wiring Diagram DPDT DUETSCH 6 PIN MALE CONNECTOR Battery 10Amp Breaker Folder Notes DIMENSIONS ARE IN INCHES TOLERANCES NON SPECIFIED: Controller Wiring Diagram FRACTIONAL 1/64 DWG. NO. DATE DRAWN October-07-15 8:33:37 AM BEND TWO PLACE DECIMAL 0.01"...
-
Page 18: Drive Packages "A" - "B" - "B
A - B - B+ Hydraulic Parts Item# Part# Description FF3-4 Male Male Flat Face Coupler FF3-4 Female Female Flat Face Coupler 34648 Main Hyd Hose Folder \\DC1\Engineering\Solidworks\Solidworks_Elo\Snowblower\Skid Steer\H Notes DIMENSIONS ARE IN INCHES TOLERANCES NON SPECIFIED: Hose K 6400-1216 Hyd Adapter FRACTIONAL 1/64... -
Page 19: Valve Parts
A - B - B+ Hydraulic Parts Item# Part# Description 6400-0604 Hyd Adapter 52762 Coupler 1 1/4” - 14 10410 Motor Clamp Bolt 5/8-18 x 2 1/2 c/w lw, n 52763 Fan Motor A package 52764 Fan Motor B package 24004 Fan Motor B + package 6400-1210... -
Page 20: Drive Packages "C" - "C+" - "D
C - C+ - D Hydraulic Parts Item# Part# Description FF3-4 Male Male Flat Face Coupler FF 1 Male Male Flat Face Coupler FF3-4 Female Female Flat Face Coupler FF 1 Female Female Flat Face Coupler 34648 C - C+ package Main Hyd Hose 34819 D package Main Hyd Hose 6400-1216... - Page 21 C - C+ - D Hydraulic Parts Item# Part# Description 52760 Rotator Motor O Ring 3/32 x .75 id 52761 Relief Valve Socket Head Cap Screw 5/16 x 1 1/2 6400-0606 Hyd Adapter 34661 Case Drain Hose 6400-0606 Hyd Adapter 6400-0604 Hyd Adapter 52765...
-
Page 22: Hydraulic Deflector Parts
Hydraulic Deflector Parts Item# Part# Description Qty. 52766 Hydraulic cylinder 2 1/2 x 8 34652 Long Deflector Hose 2501-0606 Hyd. Adapter 34651 Short Deflector Hose 6400-0606 Hyd. Adapter Note: Abbreviations used OL - Obtain Locally Folder S:\Solidworks\Solidworks_Elo\Snowblower\Skid S Notes c/w - Complete With DIMENSIONS ARE IN INCHES TOLERANCES NON SPECIFIED: FRACTIONAL... -
Page 23: Maintenance
Meteor Skid Steer Blower General Maintenance • Check hydraulic lines periodically to ensure that they are not rubbing on the frame • Be on the lookout for loose nuts and bolts, tighten as required • The electric chute control should not need a lot of attention. Check for wires that may be... -
Page 24: Bolt Torque
Bolt Torque As used on this machine • Bolt torque table shown below gives torque values for various bolts used. • This chart is for non-lubricated threads. • Replace with same strength bolt. Torque Specifi cations. Torque values are identifi ed by their head markings. Diameter SAE 2 SAE 5... - Page 26 MK Martin Enterprise Inc. 3950 Steffl er Rd Elmira, ON, Canada N3B 2Z3 Tel: 519-664-2752 Toll Free: 1-855-664-2752 Fax: 519-664-3695 E-mail: sales@mkmartin.ca www.mkmartin.ca...
