MK Martin METEOR Operator's Manual

Loader blower with power pack
Hide thumbs Also See for METEOR:

Advertisement

Quick Links

M K Martin Enterprise Inc
3950 Steffler Rd Elmira On Ca N3B 2Z3
Tel: 519-664-2752
Toll Free 1-855-664-2752
Fax: 519-664-3695
e-mail: sales@mkmartin.ca
www.mkmartin.ca
Loader Blower with Power Pack
rev:1-14

Advertisement

loading
Need help?

Need help?

Do you have a question about the METEOR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MK Martin METEOR

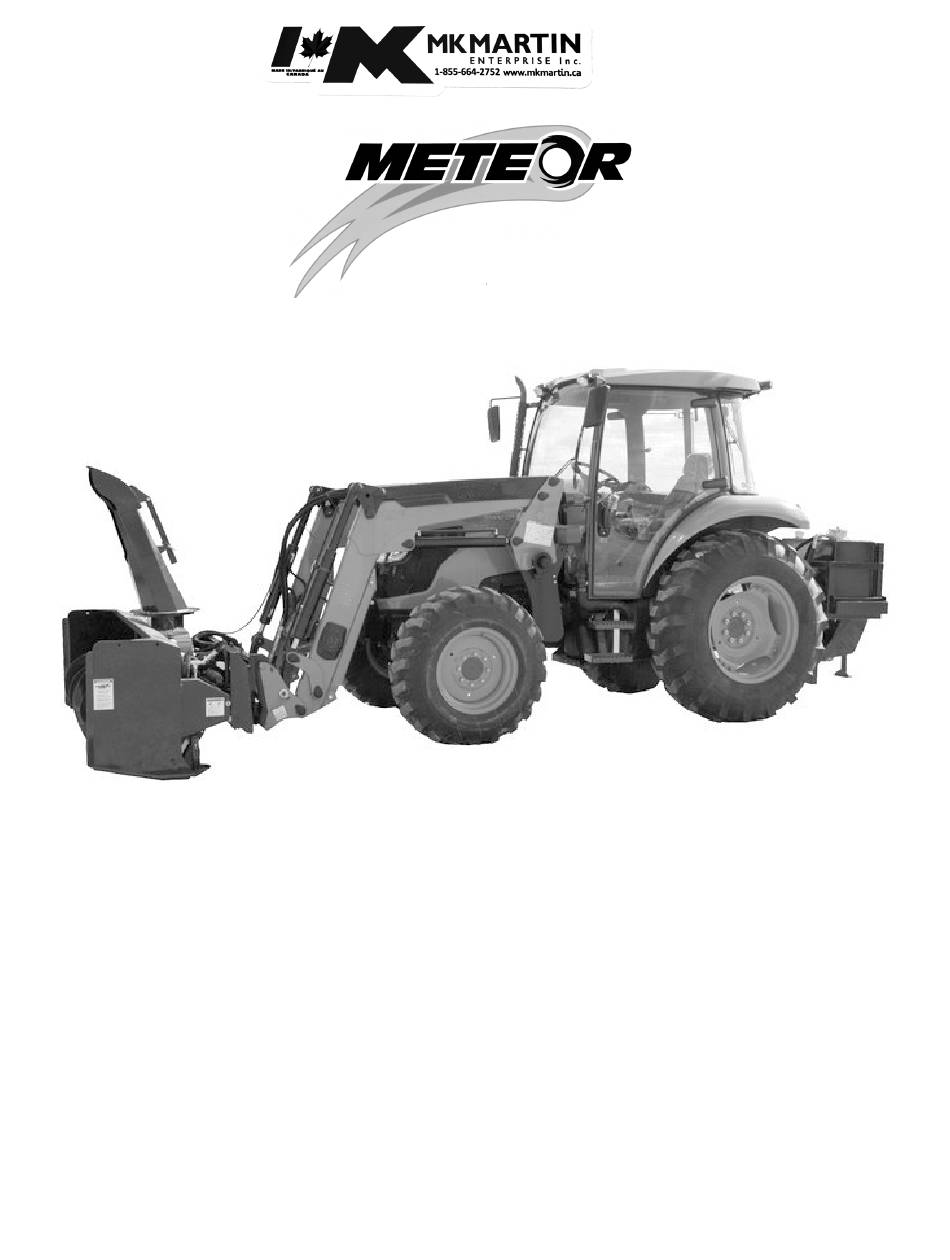

  • Page 1 Loader Blower with Power Pack M K Martin Enterprise Inc 3950 Steffler Rd Elmira On Ca N3B 2Z3 Tel: 519-664-2752 Toll Free 1-855-664-2752 Fax: 519-664-3695 e-mail: sales@mkmartin.ca www.mkmartin.ca rev:1-14...
  • Page 2 Intentionally Left Blank...
  • Page 3 Table of Contents • Registration • Warranty • Safety • Decal Location • Assembling • Attaching • Operating • Power Pack Parts • Blower Parts • Electric Rotator Parts • Bolt Torque Chart • Maintenance...
  • Page 4 Warranty Regeneration Please Cut and Return to M K Martin Enterprise Inc Fold And Tape here Do not tape all edges or use staples Fold Here ------------------------------------------------------------------------------------------------------------------------------ Postage Stamp M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3...
  • Page 5 M K Martin Enterprise Inc 3950 Steffl er Rd Elmira On Ca N3B 2Z3 --------------------------------------------------------------------------------------------------------------------- Purchaser’s warranty protection equipment is valid only when this completed form or a copy of this form is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has ac- knowledged delivery of equipment and owner’s / operator’s manual and has accepted the condi- tion of the equipment.
  • Page 6 Warranty and Limitation of Liability All equipment is sold subject to mutual agreement that it is warranted at M K Martin Enterprise Inc. (Hereaf- ter called the company), to be free of any defects of material and workmanship. The company shall not be li- able for special, indirect consequential, damage of any kind under this contract or otherwise.
  • Page 7 Safety Take Note! Th is safety symbol is found throughout this manual to call your attention to instructions involving yourself and others working around the machine. • Failure to follow these instructions can result in injury or death! Th is symbol means -- Attention! -- Become Alert! -- Your Safety is involved!
  • Page 8 To avoid personal injury, study the following precautions and insist that those working with you follow them. The Meteor Loader Blower has a PTO Safety Shield, a Chute Rotator Shield and a cover on the Auger Drive. Do not use the Snowblower with the shields missing! Replace any Decals that may be missing or not readable.
  • Page 9 Decal Location Beside Fan Left Side Right Side beside Front of Power Pack Fan Housing (Will match when sold as package) Left Side above Auger Drive Back or Power Pack (small) Both Ends of Body Auger Drive Cover Chute Rotator Cover Back of Power Pack...
  • Page 10 Assembly and Attaching to Tractor This Loader Blower is shipped mostly assembled. The discharge chute may not be installed when shipped. After receiving the Loader Blower check the condition of all components. Note any damaged or broken parts. To Assemble Chute #2 Set Chute on top of Plastic Ring.
  • Page 11 Attaching the Meteor Loader Blower The Loader Blower has two basic parts. The Power Pack and the Blower. The Power Pack is attached on the back 3ph and driven with the PTO. The Blower is attached to the loader and driven with hydraulic lines from the power pack.
  • Page 12 Installing Electric Chute Control The Chute is controlled with a control pendent that has two switches. One switch is for the rotator and the other is available for the electric deflector control. The Chute Control consists of; 1 Battery wire, (has Red and Green sleeves on battery end with battery clips) 10ft. 1 Control Handle 1 Control Wire 20ft 1.
  • Page 13 Operating the Meteor Loader Blower Before operating this equipment, inspect all electric connections and hydraulic couplings for proper connection. Raise the Power Pack far enough to have adequate ground clearance of the front stand. Place the back stand in transport position to keep it from getting damaged.
  • Page 14 Notes:...
  • Page 15 Hydraulic Power Pack Item # Part # Description H112-M-NA10 Filter Indicator Gauge 5406-2012 Adapter 5602-1212 Adapter Tee 1501-1212 Adapter Elbow 33626 Relief Vale Return Hose 33629 Return Hose 33347 Main Frame 7/16 Lynch Pin...
  • Page 16 Item # Part # Description FF3-4 Male Flat Face Coupler 382710 Hitch Pin Bolt 8- 1.25x16 mm Bolt c/w 5/16 lw 6901-1212 Adapter Elbow 33627 Main Pressure Hose FF3-4 Female Flat Face Coupler VMPK20 Relief Valve 6902-1212 Adapter 45° Elbow M12x1.75x20 Bolt c/w 1/2 lw 519-871187 PTO Assembly...
  • Page 17 Meteor Loader Blower Item # Part # Description 33346 66” Main Blower 24055 76” Main Blower Body 23530 86” Main Body 519-751169 Bearing Bolt 1/2x1 1/2 c/w lw, n 519-871165 Auger Sprocket 22024 66” Auger 22017 76” Auger 22002 86” Auger...
  • Page 18 Item # Item # Description 2517 1 1-2 Taperlock Hub 33316 519-6231013 Lower Chute Clamp 519-6231014 Chute Clamp Spacer 519-6231015 Anti Friction Ring 519-6231018 Deflector Hinge Pin Bolt 5/16x1 1/2 c/w lw, n 519-6231016 Chute 1/2” SAE Washer 1/8x1 Cotter Pin 519-6231017 Deflector Bolt 1/2x2 c/w ln...
  • Page 19 Item # Item # Description 2404-0612 Adapter 2404-1012 Adapter 6500-1010 Swivel Elbow 6901-1212 Swivel Elbow 6400-1012 Adapter 33639 Hose Valve to Auger motor 24058 Sprocket Auger Motor 21569 Skid Shoe 24059 Auger Drive Chain 1/2” Bent Pin 519-872029 Idler Sprocket Bolt 1/2x1 3/4 c/w lw 1/8”...
  • Page 20 Loader Adapter Alternative Attachments Blank Adapter 33339 Skid Steer Adapter 24150 EURO Adapter 51367...
  • Page 21 Item # Part # Description 24048 Actuator 519-21164 Rotator Motor 24061 Battery Wire 23971 Control Handle 24028 Motor Wire 24060 Extension Wire...
  • Page 22 Wiring Diagram 20 Amp Breaker View of inside of Handle Momentary On both ways...
  • Page 23 Bolt Torque As used on this equipment Bolt torque table shown below gives torque values for the various bolts used. This chart is for non-lubricated threads. Replace with the same strength bolt. Torque Specifications. Torque values are identified by their head markings Diameter SAE 2 SAE 5...
  • Page 24 Maintenance Daily (or for each use) • Inspect the main hydraulic lines for signs of wear and abrasion. • Check Oil Level in Reservoir. • Inspect Hydraulic Couplers for connections. • Inspect electrical connections. • Check Auger Drive Chain tension •...
