Warranty and Limitations of Liability All equipment is sold subject to mutual agreement that it is warranted by M K Martin Inc. (Here- after called the company) to be free of any defects in material and workmanship. The company shall not be liable for special, indirect or consequential damage of any kind under this con- tract or otherwise.
Page 5
M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3 --------------------------------------------------------------------------------------------------------------------- Purchaser’s warranty protection is valid only when this completed form or a copy of this form is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has acknowledged delivery of equipment and owner’s / operator’s manual and has accepted the condition of the equipment.
Warranty Registration Please Cut and Return to M K Martin Enterprise Inc Fold And Tape here Do not tape all edges or use staples Fold Here ------------------------------------------------------------------------------------------------------------------------- Postage Stamp M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3...
Safety Take Note! This safety symbol is found throughout this manual to call your attention to instruc- tions involving yourself and others working around the machine. • Failure to follow these instructions can result in injury or death This symbol means -- Attention! -- Become Alert! -- Your Safety is involved!
Page 8
Safety -- It’s in your interest. Safety Guidelines Safety of operation is one of our main concerns, however it is up to the operator to practice caution. To avoid personal injury, study the following precautions and insist that those working with you follow them.
Page 9
Hydraulic Leak Test Warning! Do not check for high pressure leaks with your hands or fi ngers. Use a piece of cardboard or a thin piece of wood to detect the leak. A high pressure stream of fl uid from a pin hole can penetrate the skin and inject hydraulic fl uid into your blood veins.
Meteor Snowblower Decal Location 87-97 1- 212 Do not open or remove safety shields 7- 226 Shut off engine and remove key while engine is running. before performing maintenance or repair 1 piece work. 1 piece 2- MK logo decal Made in Canada large. 8- F9 Read operators manual.
Sign Off Form M K Martin Enterprise Inc. follows the general Safety Standards specifi ed by the American Society of Agricultural Engineers (ASAE) and the Occupational Health and Safety Administration (OSHA). Anyone who will be operating and/or maintaining the equipment must read and clearly understand ALL Safety Operating and Maintenance instructions presented in this manual.
75-108 Meteor Snowblower Assembly Instructions Parts for Assembly • 2 pc Hood Bearing • 4 pc 5/8” Wavewasher (thin) • 2 pc 5/8x2 UNF bolts • 2 pc 5/8”UNF Locknut • 1 pc 2 Hole Chute Clamp • 1 page Assembly Instructions Upon Receiving the Meteor Snowblower The blowers are shipped in a packaged state These Snowblowers are shipped without a hood turner device...
Motor Hydraulic Rotator Installation The Hydraulic Chute Rotator uses a hydraulic motor, controlled by the tractor hydraulics to rotate the chute. The kit includes a safety shield, 2 pc 1/2-20 UNF bolts, hydraulic fittings, hoses and tractor couplings. When installing the hydraulic elbows, turn them in “no more than 4 rounds”...
Page 15
Snowblower Hydraulic Rotator Installing the Hydraulic Chute Rotator Safety Shield with Hose Guide The Hydraulic Chute Rotator has rods that act as guides to guide the Defl ector Hydraulic Hose (if used) to the outside of the shield. All Shields are manufactured with the Rods straight. They may need to be bent in or out for smaller or larger blowers.
Page 16
For Smaller blowers rods are bent in as shown For Larger Blowers rods are Bent out as shown...
Chute Stop The Chute Stop is standard on all Meteor Snowblowers. It prevents the chute from being rotated straight back to the operator. It prevents the Hydraulic hoses (if used) from getting wound around the chute. On the smaller blowers with electric defl ector actuator the Chute Stop prevents the wires from getting wound up.

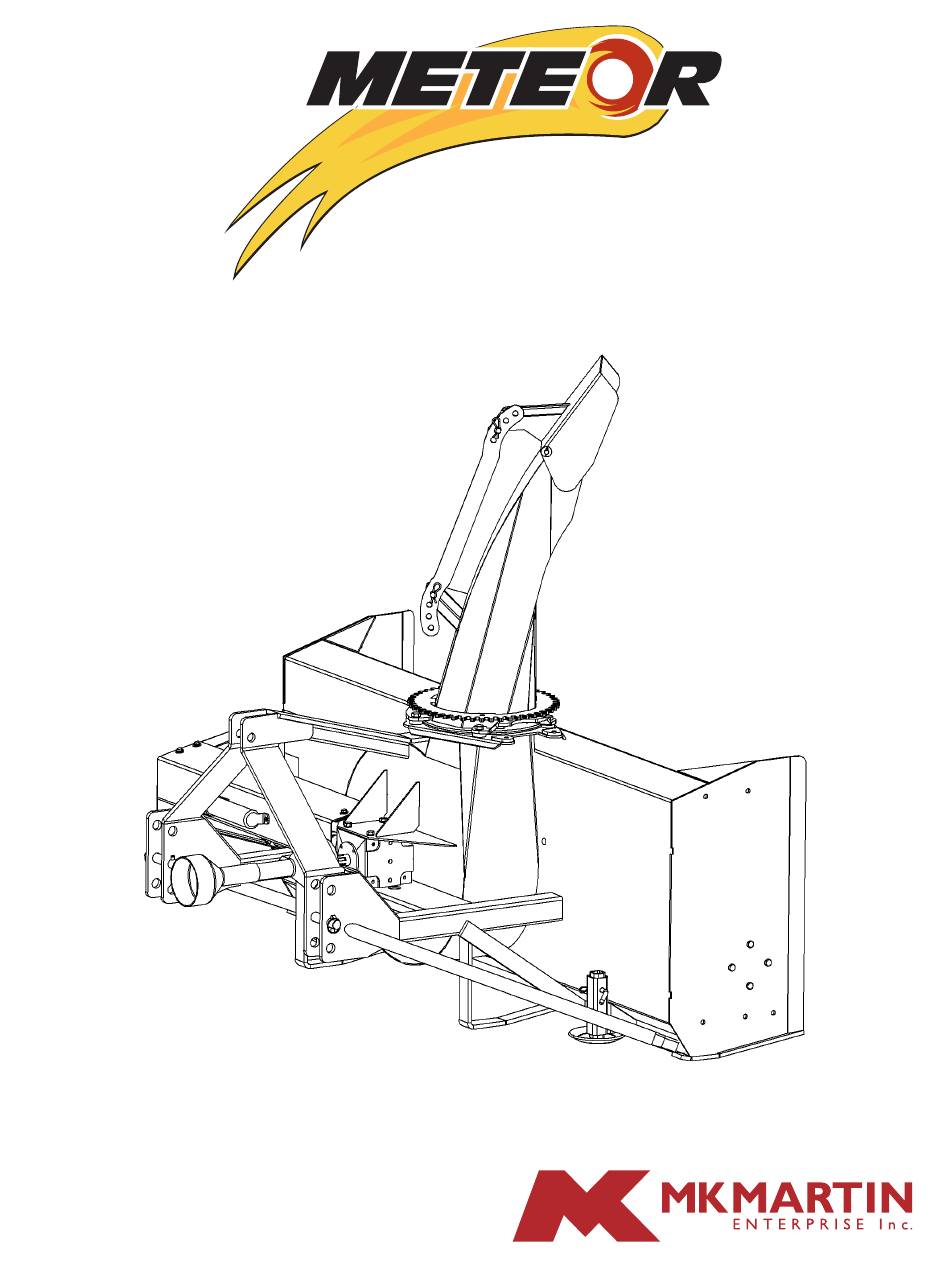

87-97 Meteor® Snowblower This Blower is ideal for tractors 60-75 HP Cat #2 3PH. Attaching up the Meteor® Blower for the first time. Set the blower on a level surface and back the tractor up to it. Place the lower 3PH arms of the tractor between the lower hitch plates on the blower and insert the hitch pins that came with the blower, secure these with the Lynch Pins.
Page 19
Operating the Meteor® Snowblower This blower is on the back of the tractor facing toward the rear. While blowing snow the tractor has to be backed into the snow. Stay in the seat of the tractor all the time that the blower is running. Make sure the area is clear of people while blowing snow.
Page 27
PTO Installation Instructions for Snowblower For Better PTO Shaft and Gearbox Operation A proper initial installation will give you years of satisfactory service on your equipment. Please read carefully, following instructions which have been specially made to help you and make you satisfied with your purchase.
Page 28
Previous examples clearly demonstrate that universal joint angle is directly related with life of the PTO. In order to reduce angle, it is necessary to increase the distance between snowblower and tractor. Too Large Angles at PTO Joints Reasonable Angles at PTO Joints To Avoid Acceptable If it is impossible to increase the distance between snowblower and tractor, in order to maintain a...
Page 29
Shear Bolts Shear bolts are built to break under shock loads on the fan or auger. However under certain circumstances this security is not adequate. Example: a sudden high impact shock on the fan may, in some cases break the fan shaft without breaking the shear bolt. If the shear bolt breaks, make sure to always replace it with the same grade of bolt (grade 5 for PTO series 20-40-50-60, and grade 8 for PTO series 80) it is necessary to always maintain this bolt very tight in order to keep the efficiency of the shearing mechanism.
Bolt Torque As used on this equipment Bolt torque table shown below gives torque values for the various bolts used. This chart is for non-lubricated threads. Replace with the same strength bolt. Torque Specifications. Torque values are identified by their head markings Diameter SAE 2 SAE 5...
