Summary of Contents for MK Martin Meteor 68

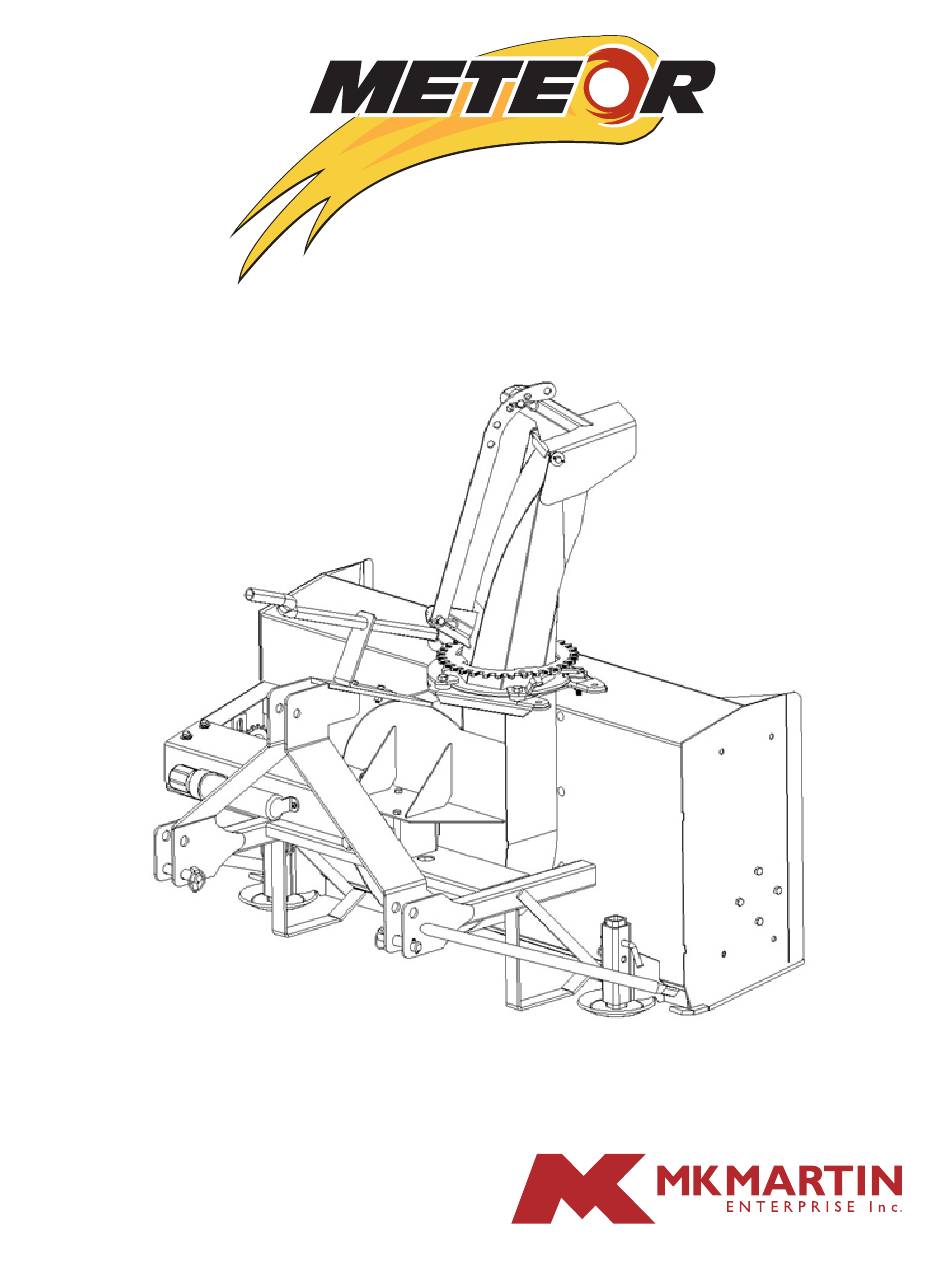

- Page 1 68-72 Meteor Snowblower Operator’s / Parts Manual MK Martin Enterprise Inc. 3950 Steffl er Rd Elmira, ON, Canada N3B 2Z3 Tel: 519-664-2752 Toll Free: 1-855-664-2752 Fax: 519-664-3695 E-mail: sales@mkmartin.ca www.mkmartin.ca REV:17-6...
- Page 2 Intentionally Blank...
-
Page 3: Table Of Contents
Table of Contents • Warranty -------------------------------------------------------------------------------------- • Registration ----------------------------------------------------------------------------------- • Safety ------------------------------------------------------------------------------------------ • Sign-Off Form -------------------------------------------------------------------------------- • Decal Location ------------------------------------------------------------------------------- • Assembly Instructions --------------------------------------------------------------------- • Set Up ------------------------------------------------------------------------------------------ • Operating ------------------------------------------------------------------------------------- • Installing Hand Crank ---------------------------------------------------------------------- • Installing Hydraulic Rotator --------------------------------------------------------------- 16-17 •... -
Page 4: Warranty
Warranty and Limitations of Liability All equipment is sold subject to mutual agreement that it is warranted by M K Martin Inc. (Here- after called the company) to be free of any defects in material and workmanship. The company shall not be liable for special, indirect or consequential damage of any kind under this con- tract or otherwise. - Page 5 M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3 --------------------------------------------------------------------------------------------------------------------- Purchaser’s warranty protection is valid only when this completed form or a copy of this form is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has acknowledged delivery of equipment and owner’s / operator’s manual and has accepted the condition of the equipment.
-
Page 6: Registration
Warranty Registration Please Cut and Return to M K Martin Enterprise Inc Fold And Tape here Do not tape all edges or use staples Fold Here ------------------------------------------------------------------------------------------------------------------------- Postage Stamp M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3... -
Page 7: Safety
Safety Take Note! This safety symbol is found throughout this manual to call your attention to instruc- tions involving yourself and others working around the machine. • Failure to follow these instructions can result in injury or death This symbol means -- Attention! -- Become Alert! -- Your Safety is involved! - Page 8 Safety -- It’s in your interest. Safety Guidelines Safety of operation is one of our main concerns, however it is up to the operator to practice caution. To avoid personal injury, study the following precautions and insist that those working with you follow them.
- Page 9 Hydraulic System Safety Hydraulic systems do their work under very high pressure, in excess of 138 bar (2000 PSI). Hydraulic fluid can be hot enough to burn exposed skin. A pinhole in a hydraulic line under pressure can cause an invisible stream of fluid to be ejected from the line.
-
Page 10: Sign-Off Form
Sign Off Form M K Martin Enterprise Inc. follows the general Safety Standards specifi ed by the American Society of Agricultural Engineers (ASAE) and the Occupational Health and Safety Administration (OSHA). Anyone who will be operating and/or maintaining the equipment must read and clearly understand ALL Safety Operating and Maintenance instructions presented in this manual. -
Page 11: Decal Location
Meteor Snowblower Decal Location 68-72 1- 212 Do not open or remove safety shields 7- 226 Shut off engine and remove key while engine is running. before performing maintenance or repair 1 piece work. 1 piece 2- MK logo decal Made in Canada small. 8- F9 Read operators manual. -
Page 12: Assembly Instructions
68-72 Meteor Snowblower Assembly Instructions 1. 2 pc 1/2”Hood Bearing 2. 2 pc 1/2” Wavewasher (Thin) 3. 2 pc 1/2” SAE Washer 4. 2 pc 1/2x2 UNF Bolt 5. 2 pc 1/2 UNF Nut & Lockwasher 6. 1 pc 2 hole Chute Clamp 7. -
Page 13: Set Up
68- 72 Meteor® Snowblower This Blower is ideal for small tractors 35 HP Cat #1 3PH. Attaching the Meteor® Blower for the first time. Set the blower on a level surface and back the tractor up to it. Place the lower 3PH arms of the tractor between the lower hitch plates on the blower and insert the hitch pins that came with the blower, secure these with the Lynch Pins. -
Page 14: Operating
Operating the Meteor® Snowblower This blower is on the back of the tractor facing toward the rear. While blowing snow the tractor has to be backed into the snow. Stay in the seat of the tractor all the time that the blower is running. Make sure the area is clear of people while blowing snow. -
Page 15: Installing Hand Crank
Installing the Hand Crank The crank package consists of 1. Tail bracket 2. Upper bracket 3. Worm Gear 4. Crank 5. Retainer Pin 6. Set Screws 7. Bolts Nuts First remove the 2 nuts (as shown), and insert The crank tail bracket [1] and reinstall the nuts and lockwasher. -
Page 16: Installing Hydraulic Rotator
Motor Hydraulic Rotator Installation The Hydraulic Chute Rotator uses a hydraulic motor, controlled by the tractor hydraulics to rotate the chute. The kit includes a safety shield, 2 pc 1/2-20 UNF bolts, hydraulic fittings, hoses and tractor couplings. When installing the hydraulic elbows, turn them in “no more than 4 rounds”... - Page 17 Snowblower Hydraulic Rotator Installing the Hydraulic Chute Rotator Safety Shield with Hose Guide The Hydraulic Chute Rotator has rods that act as guides to guide the Defl ector Hydraulic Hose (if used) to the outside of the shield. All Shields are manufactured with the Rods straight. They may need to be bent in or out for smaller or larger blowers.
-
Page 18: Parts
68-72 Meteor Snowblower Item # 68 Part # 72 Part # Description 23900 23901 Main Body 21569 21569 Small Skid Shoe Hair Pin 1/8” 1/2” Bent Pin Carriage Bolt 3/8x3/4 c/w ln 519-752096 519-752096 Hitch Pin Lynch Pin 519-872029 519-872029 Idler Sprocket 31102 31102... - Page 19 68-72 Meteor Snowblower Item # 68 Part # 72 Part # Description 519-751170 519-751170 Bearing 519-871174 519-871174 Flangette Bolt 3/8x1 c/w lw, n RH 1/4x1 Bolt c/w ln DJA70111 DJA70111 Manual Tube Bolt 3/8x1 c/w fw, lw 31206 33191 Cross Shaft Shield 519-681026 519-681026 Auger Drive Chain #60 58 1/2”...
-
Page 20: Manual Chute Rotator Parts
68-72 Manual Chute Rotator Item # Part # Description 34969 Retainer Pin Bolt 1/4 x 1 1/2 c/w 2-Way locknut 31228 Crank Worm 31222 Tail Bracket 3/8x1 1/4 bolt c/w lw, n 31221 Upper Bracket 5/16x3/4 sq h Setscrew 31225 Crank... -
Page 21: Hydraulic Chute Rotator Parts
Hydraulic Chute Rotator Parts Item # Part # Description 23931 Shield Bolt 1/2-20x2 c/w lw, n 519-511706 Small Gear Bolt 3/8x1 c/w lw 519-511703 Motor Bracket 519-511704 Motor 519-511705 Crossover Relief Valve S71-4 Tractor Adapter 23895 Hydraulic Hose 519-9515-10-6 Hydraulic Elbow Socket Head Cap Screw 5/16x1 1/2 OL* (O Ring 3/32x.75id Note*... -
Page 22: Gearbox Parts
T 281 J 68 Meteor Gearbox T 281 J 68 Meteor Gearbox Item# Part # Description 519-02814208 Output shaft 1 3/8” Z6 519-87300028 Oil Seal 35x52x7 519-80100870 Ball Bearing 6207 35x52x17 519-02597500 Shim Kit 35x3x48 519-02595020 Crown Gear Z18 M5 519-84100232 Key 10x8x25 519-02812212... - Page 23 Comer T40 PTO (68-72 Meteor) Comer T40 Gearbox ((68 Snowblower) Item # Description Part # Complete Collar Yoke 141.024.430.1 Cross Journal Assy 180.014.130 Complete Shear Yoke 143.240.011.1 Guard Retaining collar for Outer Tube 8180.014.233 Special Bolt 8180.014.240 Safety Chains 180.016.790 Complete Guard with Instruction Manual 142.240.293.7421 Bolt &...
-
Page 24: Pto Instructions
PTO Installation Instructions for Snowblower... - Page 25 PTO Installation Instructions for Snowblower For Better PTO Shaft and Gearbox Operation A proper initial installation will give you years of satisfactory service on your equipment. Please read carefully, following instructions which have been specially made to help you and make you satisfied with your purchase.
-
Page 26: Pto
Previous examples clearly demonstrate that universal joint angle is directly related with life of the PTO. In order to reduce angle, it is necessary to increase the distance between snowblower and tractor. Too Large Angles at PTO Joints Reasonable Angles at PTO Joints To Avoid Acceptable If it is impossible to increase the distance between snowblower and tractor, in order to maintain a... - Page 27 Shear Bolts Shear bolts are built to break under shock loads on the fan or auger. However under certain circumstances this security is not adequate. Example: a sudden high impact shock on the fan may, in some cases break the fan shaft without breaking the shear bolt. If the shear bolt breaks, make sure to always replace it with the same grade of bolt (grade 5 for PTO series 20-40-50-60, and grade 8 for PTO series 80) it is necessary to always maintain this bolt very tight in order to keep the efficiency of the shearing mechanism.
- Page 28 Effective PTO Drive Shaft Maintenance...
- Page 29 Avoidable Damage Possible Causes Corrective Actions Quick-disconnect yoke Quick-disconnect pin tight or Quick-disconnect pin Clean, oil and follow completely seized dirty (insufficient service instruction Quick-disconnect pin damaged maintenance) Replace Quick- (broken or bent) disconnect pin Quick-disconnect pin damaged Quick-disconnect pin Shorten shaft length in locking position defective (forced into...
- Page 30 Avoidable Damages Possible Causes Corrective Actions Cross Arms broken Extreme torque peak or Use appropriate safety Cross Kit shock load device Change to a larger PTO size Axial loads too large Shorten PTO shaft Replace defective cross bearings Bearing caps turning in their Excessive continuous Verify compatibility cross journal...
- Page 31 Avoidable Damages Possible Causes Corrective Actions Excessive wear of shield Insufficient lubrication Follow lubrication Shield bearings instructions Incorrect chain mounting Mount chain to allow maximum angularity Shield interfering with Avoid shield contact with implement machine or tractor Replace shield bearings Chain failure Shield interfering with Avoid shield contact with...
-
Page 32: Bolt Torque
Bolt Torque Bolt Torque As used on this equipment As used on this equipment Bolt torque table shown below gives torque values for the various bolts used. This chart is for non-lubricated threads. Replace with the same strength bolt. Torque Specifications. Torque values are identified by their head markings Diameter SAE 2 SAE 5... -
Page 33: Maintenance
68 - 72 Meteor Snowblower 68 Meteor Snowblower Maintenance • PTO Shearbolt – M 8x50 - 8.8 • Auger Shearbolt – ¼ x 1” Gr #2 • Auger Drive Chain Tightener – tighten chain allowing ¼” sag in the bottom span of chain (between drive and driven sprocket). - Page 36 MK Martin Enterprise Inc. 3950 Steffl er Rd Elmira, ON, Canada N3B 2Z3 Tel: 519-664-2752 Toll Free: 1-855-664-2752 Fax: 519-664-3695 E-mail: sales@mkmartin.ca www.mkmartin.ca...
