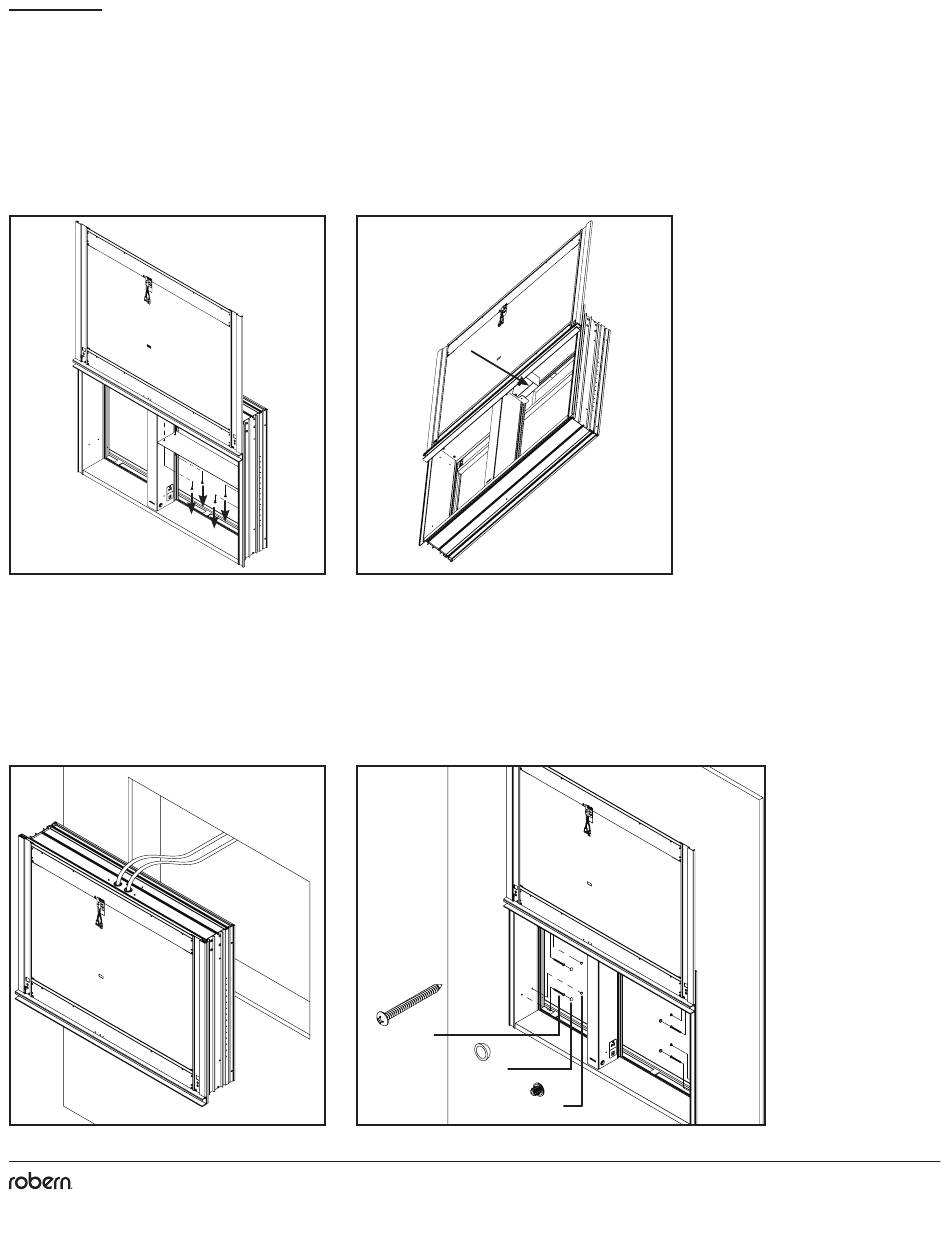

SECTION 2 - ELECTRICAL CONNECTIONS FOR ELECTRIC MODELS
1. For electric models, E2 and E4, allow 24" (610 mm) of electric wire.
2. Using the supplied 3/32 Allen Key, remove the four screws to remove the right hand top ceiling panel inside the cabinet.
2a. This will give access to the electrical connection box.
3. Pull field wiring through the top holes and leave them hanging out of the Electrical Connection Box.
2
4. Place cabinet in rough-in and make sure cabinet is plumb and level. If cabinet is not plumb, shim as required.
5. Install four screws (SS674) followed by the screw caps (SS672) as shown, using caution to not over-tighten the screws.
Insert the hole plugs (SS134) into the remaining four holes.
6. There are three ways to connect Uplift Tech depending on your cabinet's electrical options. Make connections as required.
These are detailed on the following page.
4
