Section 1 - Recess Mounting - Robern UPLIFT TECH UC48276FPNE2N Instruction Sheet

SECTION 1 - RECESS MOUNTING

NOTE: The Semi-Recessed Mounting Kit (USMK27D6SR) allows you to semi-recess your cabinet, and supplies the semi-
recessed side kit. (Purchased separately)
These instructions are for recess mounting your cabinet into a 6" (153 mm) deep opening, or semi-recessed mounting your cabinet into
a 4" (102 mm) opening. Surface Mount instructions will come with the Surface Mount Kit - USMK27D6P

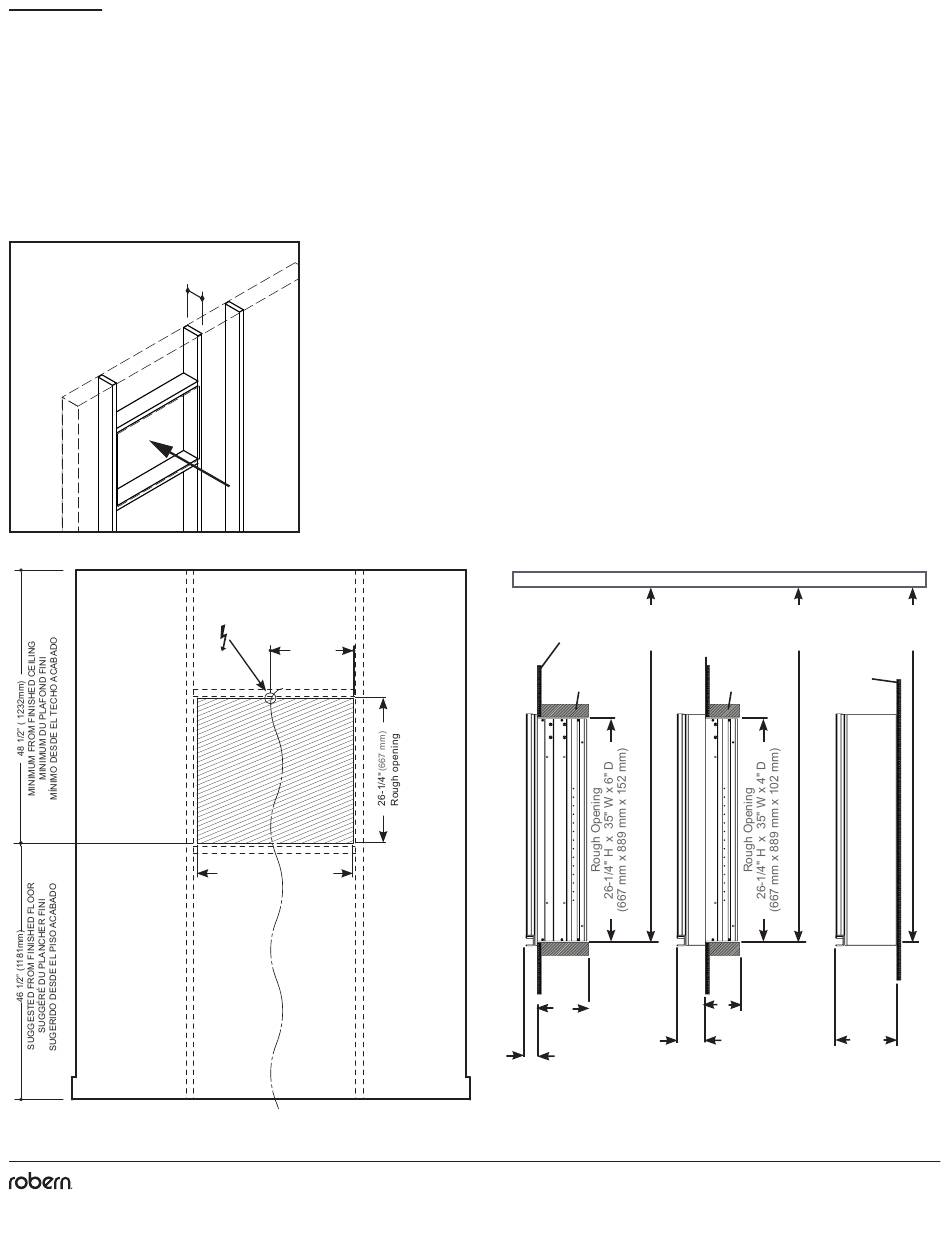

1. Make a rough opening and frame on all sides. Find the specific model dimensions in the diagram below to make the rough opening.
Determine if the cabinet is Electric or Non-Electric to proceed.
6"
(153 mm)
1
Recessed Mount
4"
(102 mm)
Semi-Recessed Mount
© 2019 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
www.robern.com
800.877.2376
Installation instructions
24"
(610 mm)
Field wiring
18-5/8"
(473 mm)
Rough opening
UC2748 = 47"
(1194 mm)
UC2736 = 35"
(889 mm)
UC2730 = 29"
(737 mm)
UC2724 = 23"
(584 mm)
Minimum
48-1/2"
Wall
(1232 mm)
2 x 6 required
on all 4 sides
6"
(152 mm)
1-5/16"
(33 mm)
Recessed Mount
(Optional Side Kit Shown)
4
CEILING
Minimum
48-1/2"
(1232 mm)
Wall
2 x 4 required
on all 4 sides
4"
(102 mm)
3-5/16"
(84 mm)
Semi-Recessed Mount Surface Mount
(Optional Side Kit Shown)
Part no. 209-1381 rev. 02/8/21
Minimum
48-1/2"
(1232 mm)
Wall
7-1/8"
(181 mm)
Uplift Tech Cabinet
