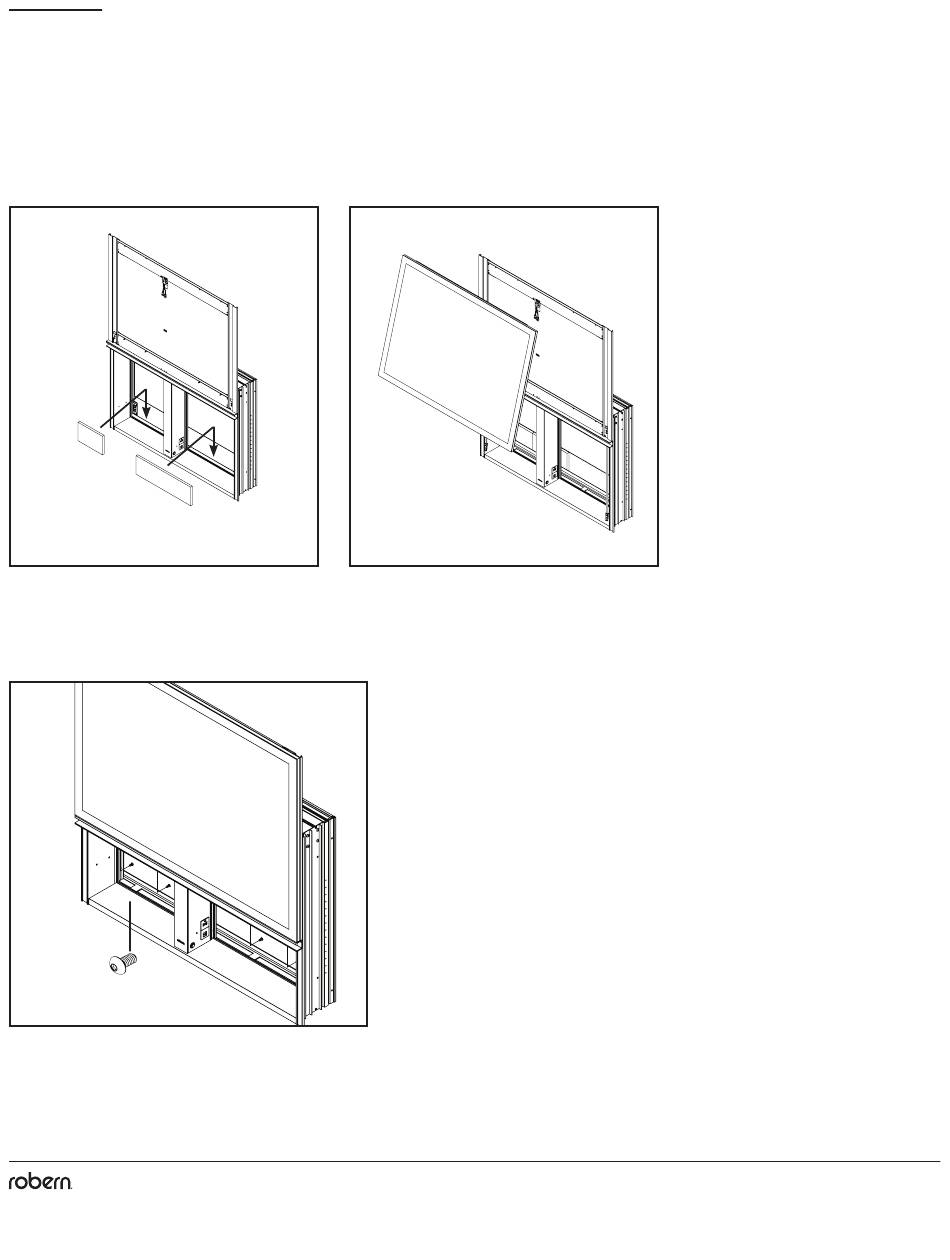

SECTION 4 - FINAL ASSEMBLY

1. Raise door frame and install the counterweight(s), supplied with your cabinet, into the counterweight tray (inside rear of cabinet).
Door should remain open.
2. Carefully hang door mirror on door frame.
1
3. Make door electrical connections to door mirror (if equipped-depends on model).
4. Secure door mirror to door frame by installing 4 screws (203-1514) on the inside lower edge of door frame, using the supplied 3/32
Allen Key. Do not over tighten.
4
[203-1514]
5a. Lower and raise door fully to check proper operation.
5b. Verify door can be opened partially and will stay open when released.
