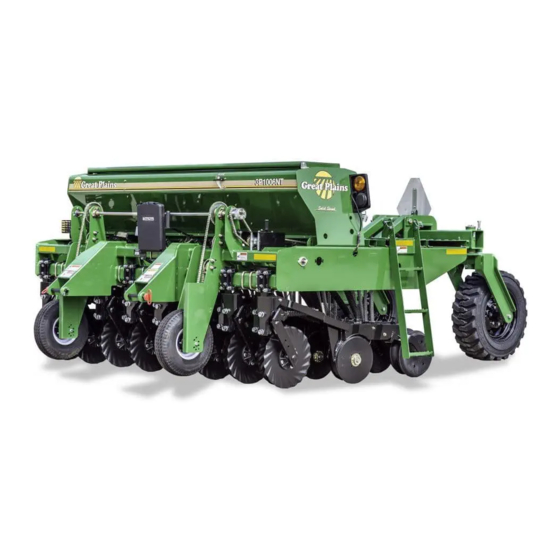

GREAT PLAINS 3P1006NT Original Instructions Manual

No-till drill
Hide thumbs Also See for 3P1006NT:
Table of Contents

Advertisement

Quick Links

Download this manual
Great Plains
NO-TILL DRILL
MATERIAL RATE MANUAL
MODELS 3P1006NT
Table of Contents
Original Instructions
!
Read the operator manual entirely. When you see
this symbol, the subsequent instructions and
warnings are serious - follow without exception.
Your life and the lives of others depend on it!
Illustrations may show optional equipment not
supplied with standard unit.
151-144B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3P1006NT and is the answer not in the manual?

Questions and answers

Related Manuals for GREAT PLAINS 3P1006NT

Summary of Contents for GREAT PLAINS 3P1006NT

  • Page 1 Table of Contents Great Plains NO-TILL DRILL MATERIAL RATE MANUAL MODELS 3P1006NT 151-144B Original Instructions Read the operator manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception. Your life and the lives of others depend on it! Illustrations may show optional equipment not supplied with standard unit.
  • Page 2 Trademarks of Great Plains Manufacturing, Inc. include: AccuShot, DrillCommand, Max-Chisel, Row-Pro, Singulator Plus, Short Disk, Swath Command, Terra-Tine, Ultra-Chisel, and X-Press. Registered trademarks of Great Plains Manufacturing, Inc. include: Air-Pro, Clear-Shot, Discovator, Great Plains, Land Pride, MeterCone, Nutri-Pro, Seed-Lok, Solid Stand, Terra-Guard, Turbo-Chisel, Turbo-Chopper, Turbo-Max, Turbo- Trill, Ultra-Till, Whirlfilter, and Yield-Pro.
  • Page 3 Calibration Procedure ....34 Fertilizer Rate Chart ....35 Great Plains | 151-144B | 2019/03/14...
  • Page 4 Cover...

  • Page 5: Safety Information

    The information symbol indicates useful - but crucial information machine operation, assembly, or adjustment. Review the safety information in the operator manual before calibrating or making any adjustments to the drill. Great Plains | 151-144B | 2019/03/14...

  • Page 6: Calibration Overview

    For reference, at 10 kph (6 mph) field speed, jackshaft rpm is 65 (about 1 revolution per second). On boxes not being calibrated, empty the boxes, set rate handles to zero, or remove a drive chain to prevent undesired meter operation. Great Plains | 151-144B | 2019/03/14...
  • Page 7 The crank Right Calibration Crank Revolutions revolutions per area are independent of gearbox drive type. Standard Rate Acre Hectare Full Area Left Calibration Crank Revolutions 1/10th Area Standard Rate Acre Hectare Full Area 1/10th Area Great Plains | 151-144B | 2019/03/14...
  • Page 8 Full Hectare 84.8 34.3 140.5 250.5 1/10th Hectare Reduced Rate (Native Grass Only) Hectare Acre Drive Type Full 1/10th Full 1/10th 98.4 39.8 200.8 20.1 81.3 301.3 30.1 121.9 12.2 491.5 49.1 198.9 19.9 Great Plains | 151-144B | 2019/03/14...

  • Page 9: Drive Types

    Each drive type corresponds to a specific gear ratio. Drive Type Relative Speed Slowest 2.06 times faster than drive type 1 3.08 times faster than drive type 1 5.02 times faster than drive type 1 Great Plains | 151-144B | 2019/03/14...

  • Page 10: Row Shutoff

    3. Review seed rate settings before planting. Perform calibration calculations with the active row count. Great Plains | 151-144B | 2019/03/14...
  • Page 11 0 9.7 93 100 105 110 115 118 120 94 105 116 126 137 147 156 165 173 180 186 85 101 118 135 153 171 189 206 223 239 255 269 282 293 303 Great Plains | 151-144B | 2019/03/14...

  • Page 12: Seed Rate Calibration

    13. Weigh metered seed and subtract initial weight of the acremeter to determine the area. container(s). NetWeight GrossWeight ContainerWeight – Great Plains | 151-144B | 2019/03/14...
  • Page 13 When drilling, check seeding rate by noting the area drilled, amount of seed added to drill, and seed level in the drill box. If you are seeding more or less than desired, adjust the rate slightly to compensate for field conditions. Great Plains | 151-144B | 2019/03/14...

  • Page 14: Seed Rate Charts

    0 2.2 3.1 4.5 6.3 8.5 0 4.4 6.4 9.3 99 104 107 0 6.6 9.6 93 103 113 123 132 141 149 156 161 85 101 117 134 151 168 185 201 216 230 243 254 263 Great Plains | 151-144B | 2019/03/14...
  • Page 15 0 3.9 5.7 7.9 0 8.0 96 102 107 111 114 116 97 110 123 136 148 159 170 179 187 192 197 98 118 138 159 180 201 222 241 260 277 292 304 314 320 Great Plains | 151-144B | 2019/03/14...
  • Page 16 Pounds per Acre based on 60 lb/bushel Type 1.8 3.5 5.3 7.2 9.1 0 3.6 7.2 0 5.7 97 102 107 112 0 9.3 94 104 114 123 132 141 150 159 167 175 182 Great Plains | 151-144B | 2019/03/14...
  • Page 17 95 100 Drive Metric Kilograms per Hectare Type 0 4.3 5.9 7.9 0 8.8 Seed Rate Handle Setting 7.5 inch rows 95 100 Drive Non-Metric Pounds per Acre Type 0 3.8 5.3 7.0 9.0 Great Plains | 151-144B | 2019/03/14...
  • Page 18 Seed Rate Handle Setting 7.5 inch rows 95 100 Drive Non-Metric Pounds per Acre based on 60 lb/bushel Type 0 4.6 7.1 0 9.4 93 103 113 122 131 140 148 154 160 165 Great Plains | 151-144B | 2019/03/14...
  • Page 19 Pounds per Acre based on 18 lb/bushel Type 1.5 2.0 2.7 3.3 4.1 4.9 5.8 6.7 7.6 8.5 9.4 0 2.3 3.1 4.2 5.5 6.9 8.5 0 3.3 4.6 6.1 7.9 0 5.4 7.4 Great Plains | 151-144B | 2019/03/14...
  • Page 20 96 106 115 124 132 140 146 151 155 157 95 109 124 139 153 167 180 192 203 213 221 227 231 88 109 131 155 178 203 226 250 272 294 313 331 347 360 369 376 Great Plains | 151-144B | 2019/03/14...
  • Page 21 47 lb/bushel Type 0 0.9 3.3 5.8 8.3 1.8 6.7 0 3.0 99 106 113 119 125 130 136 0 4.9 91 103 115 127 139 151 162 173 183 194 203 213 221 Great Plains | 151-144B | 2019/03/14...
  • Page 22 95 105 115 124 133 142 149 156 162 167 96 111 126 142 157 173 188 202 216 228 240 250 259 88 109 132 156 181 206 231 257 282 306 329 352 372 391 407 422 Great Plains | 151-144B | 2019/03/14...
  • Page 23 91 100 109 117 125 132 139 144 149 152 93 106 120 133 146 158 170 182 193 203 212 220 228 89 110 131 152 173 195 216 237 258 278 297 314 331 346 359 371 Great Plains | 151-144B | 2019/03/14...
  • Page 24 0 8.3 96 104 112 119 127 134 142 97 109 120 132 144 156 167 179 190 202 212 88 105 122 140 158 177 196 215 235 254 273 292 311 329 346 Great Plains | 151-144B | 2019/03/14...
  • Page 25 Drive Non-Metric Pounds per Acre based on 23 lb/bushel Type 0 0.9 1.7 2.4 3.2 4.0 4.9 5.8 6.6 7.5 8.4 9.3 1.9 3.4 4.9 6.6 8.3 0 3.5 5.3 7.4 0 5.7 8.7 Great Plains | 151-144B | 2019/03/14...

  • Page 26: Native Grass

    Pull seed hoses off openers under those compartments. 6. Turn gauge wheel or crank several times to fill compartments with seed. Turn wheel or crank until seed falls to the ground from each cup. Great Plains | 151-144B | 2019/03/14...
  • Page 27 Divide this number by the number of cups may need to change your sprocket arrangement to measured. adjust for field conditions. NetWeight ----------------------------------------- - WeightPerCup SampledRows Great Plains | 151-144B | 2019/03/14...
  • Page 28 Number of Openers    WeightPerArea 46.5 0.31 15 36.8 2.45 15 Drive type Driven sprocket Transmission standard standard RevsPerArea   ---------- - ---------- - FinalRevs 46.5 36.8 RevsPerArea (from chart) Required sprocket Great Plains | 151-144B | 2019/03/14...
  • Page 29 70.9 Driven Sprocket Non-Metric Drive Type Cup Revolutions Per Acre 47.2 44.0 41.3 38.8 36.7 34.7 33.0 31.4 30.0 28.7 96.9 90.5 84.8 79.8 75.4 71.4 67.8 64.6 61.7 59.0 101.8 96.9 92.5 88.5 Great Plains | 151-144B | 2019/03/14...

  • Page 30: Seed Lubricant

    8. For dual seed calibration drills with S/N A1211W and above, unpin the coupler and slide out of the way to disconnect the two jackshafts (see “Calibration Preparation for S/N A1211W+” on page 3). Great Plains | 151-144B | 2019/03/14...
  • Page 31 If you are drilling more or less seed than desired, and you have accurately calibrated the drill to your seed, you may need to change your sprocket arrangement to adjust for field conditions. Great Plains | 151-144B | 2019/03/14...
  • Page 32 22.2 21.0 20.0 19.1 18.3 17.5 Driven Sprocket Non-Metric Drive Type Pounds per Acre 10.3 15.4 14.4 13.6 12.8 12.1 11.5 11.0 10.5 10.0 25.0 23.5 22.1 20.9 19.8 18.8 17.9 17.0 16.3 15.6 Great Plains | 151-144B | 2019/03/14...

  • Page 33: Small Seeds

    7 . Note the current reading of the acremeter if using it for the calibration. Great Plains | 151-144B | 2019/03/14...

  • Page 34: Small Seeds Row Shut-Off

    4. Review seed rate settings before planting. Perform calibration calculations with the actual active row count. When removing plugs to restore rows to operation, be sure to not disturb a factory-installed plug. Great Plains | 151-144B | 2019/03/14...
  • Page 35 0 0.0 0.0 0.2 0.6 0.8 0.8 1.4 1.4 1.4 1.4 1.4 3.2 3.6 3.9 4.4 4.5 5.0 5.2 5.5 5.5 Non-Metric Pounds per Acre 7.5 inch 0 0.0 0.0 0.2 0.5 0.7 1.1 1.2 1.6 1.9 2.3 2.6 2.8 3.2 3.5 3.9 4.0 4.4 4.6 4.9 5.1 Great Plains | 151-144B | 2019/03/14...
  • Page 36 0.0 1.6 1.6 1.6 1.6 7.9 9.7 11.5 11.5 15.2 17.4 17.4 17.4 17.4 25.4 27.0 29.1 31.1 32.8 32.8 Non-Metric Pounds per Acre 7.5 inch 0.0 1.4 2.6 4.2 5.4 7.0 8.6 10.2 11.9 13.5 15.4 17.0 18.8 20.5 22.5 24.0 25.8 27.6 29.1 30.9 Great Plains | 151-144B | 2019/03/14...
  • Page 37 109 1.45 the final rate adjuster setup. Rate Setting For larger differences, particularly with very low densities, an adjustment can make the calibration simpler by choosing a different target chart value for the application rate. Great Plains | 151-144B | 2019/03/14...
  • Page 38 If you are applying more or container. less than desired, adjust the rate slightly to compensate for field conditions. Great Plains | 151-144B | 2019/03/14...
  • Page 39 112 126 150 175 189 202 222 243 265 287 310 331 Non-Metric Pounds per Acre based on 65 lbs/cu.ft 7.5 inch 105 123 138 157 174 187 209 223 234 242 245 247 Great Plains | 151-144B | 2019/03/14...
  • Page 40 3P1006NT Table of Contents Fertilizer Great Plains | 151-144B | 2019/03/14...
  • Page 41 Table of Contents...
  • Page 42 Great Plains, Mfg. 1525 E. North St. P.O. Box 5060 Salina, KS 67402...
