GREAT PLAINS Yield-Pro 3PYP Operator's Manual
  1. Manuals
  2. Brands
  3. GREAT PLAINS Manuals
  4. Farm Equipment
  5. Yield-Pro 3PYP
  6. Operator's manual

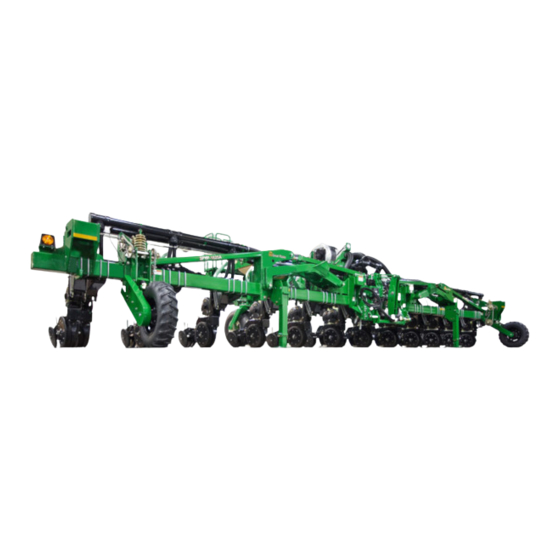

GREAT PLAINS Yield-Pro 3PYP Operator's Manual

3-point 40-foot planter
Hide thumbs

Advertisement

Quick Links

Download this manual
Table of Contents
3-Point 40-Foot Yield-Pro
Read the operator manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show optional equipment not supplied with standard unit or
may depict similar models where a topic is identical.
ORIGINAL INSTRUCTIONS
© Copyright 2018
Table of Contents
Index
Operator Manual
Manufacturing, Inc.
www.greatplainsmfg.com
Printed 2018-07-24
Index
3PYP
®
Planter
25050
EN
401-312M
