Si011194
REMOVAL
PROCEDURE
S E R V I C E
M A N U A L

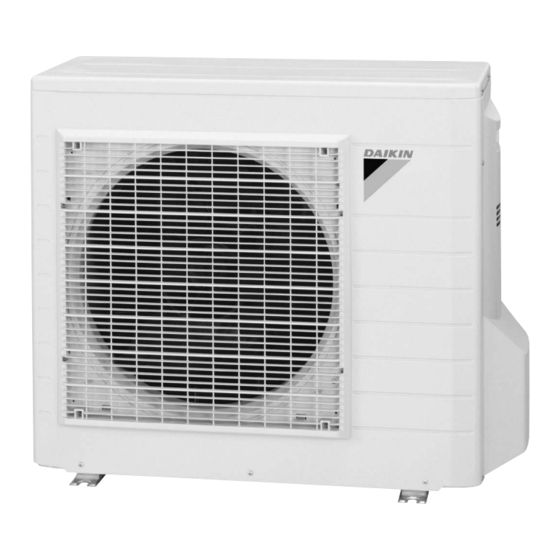

6.0 kW Class
Outdoor Unit
Non-Inverter
Pair Type

Advertisement

loading
Need help?

Need help?

Do you have a question about the RE60KV1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Daikin RE60KV1

  • Page 1 Si011194 REMOVAL PROCEDURE S E R V I C E M A N U A L 6.0 kW Class Outdoor Unit Non-Inverter Pair Type...
  • Page 2 Service Manual Removal Procedure Outdoor Unit Applicable Models Cooling Only RE60KV1 RE60KV14 RE60LV16 RE60LV1V RE60MV16...
  • Page 3: Table Of Contents

    Si011194 Table of Contents 1. Removal of Outer Panels ................2 2. Removal of Outdoor Fan / Fan Motor .............7 3. Removal of Sound Blanket..............10 4. Removal of Electrical Component ASSY ..........11 5. Removal of Capillary Tube..............13 6. Removal of Compressor ASSY.............14 Note: The illustrations may be slightly different depending on the model.
  • Page 4: Removal Of Outer Panels

    Removal of Outer Panels Si011194 1. Removal of Outer Panels Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the 4 screws and remove the top Top panel panel.
  • Page 5 Si011194 Removal of Outer Panels Step Procedure Points Remove the 6 screws of the front panel. (R5395) Unfasten the center hooks in the order of (1) to (2). (R16256) Lift the left side of the front panel and unfasten the 3 hooks. Hook (R5397) Removal Procedure...
  • Page 6 Removal of Outer Panels Si011194 Step Procedure Points Unfasten the hook on the right side and remove the front panel. (R5398) Remove the screw and remove the stop valve cover. Stop valve cover (R16853) The stop valve cover has 6 hooks.
  • Page 7 Si011194 Removal of Outer Panels Step Procedure Points Remove the 4 screws of the right side panel. Right side panel (R16851) (R16240) Unfasten the hook at the rear side. Hook (R5411) 10 Lift up and remove the right side panel. (R16850) Removal Procedure...
  • Page 8 Removal of Outer Panels Si011194 Step Procedure Points When reassembling, fit the 2 lower hooks. Hook (R5410) Removal Procedure...
  • Page 9: Removal Of Outdoor Fan / Fan Motor

    Si011194 Removal of Outdoor Fan / Fan Motor 2. Removal of Outdoor Fan / Fan Motor Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Disconnect the relay connector for the fan motor.
  • Page 10 Removal of Outdoor Fan / Fan Motor Si011194 Step Procedure Points Cut the 3 clamps and Some models have the 3 release the fan motor clamps at the different lead wire. positions. Clamp (R5404) Put the fan motor lead wire through the back of the fan motor when reassembling so as not to be entangled with...
  • Page 11 Si011194 Removal of Outdoor Fan / Fan Motor Step Procedure Points Remove the 4 screws and remove the fan motor. (R5406) Removal Procedure...
  • Page 12: Removal Of Sound Blanket

    Removal of Sound Blanket Si011194 3. Removal of Sound Blanket Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the sound Some models have no blanket (body).
  • Page 13: Removal Of Electrical Component Assy

    Si011194 Removal of Electrical Component ASSY 4. Removal of Electrical Component ASSY Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the terminal cover. Terminal cover (R16171) Terminal cover...
  • Page 14 Removal of Electrical Component ASSY Si011194 Step Procedure Points Remove the screw of the electrical components ASSY. Screw (R16238) Lift up the electrical Electrical component ASSY component ASSY and unfasten the guide for the partition plate. Guide Remove the electrical component ASSY.
  • Page 15: Removal Of Capillary Tube

    Si011194 Removal of Capillary Tube 5. Removal of Capillary Tube Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Before working, make sure that the refrigerant Warning gas is empty in the circuit.
  • Page 16: Removal Of Compressor Assy

    Removal of Compressor ASSY Si011194 6. Removal of Compressor ASSY Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the 3 nuts of the compressor. Warning Be careful not to get yourself burnt with the pipes and other...
  • Page 17 Revision History Month / Year Version Revised contents 08/2012 Si011194 First edition...
  • Page 18 Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion. Use only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or contractor to install those parts and accessories. Use of unauthorised parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage, electrical shock, fire or explosion.

This manual is also suitable for:

Re60kv14Re60lv16Re60lv1vRe60mv16
